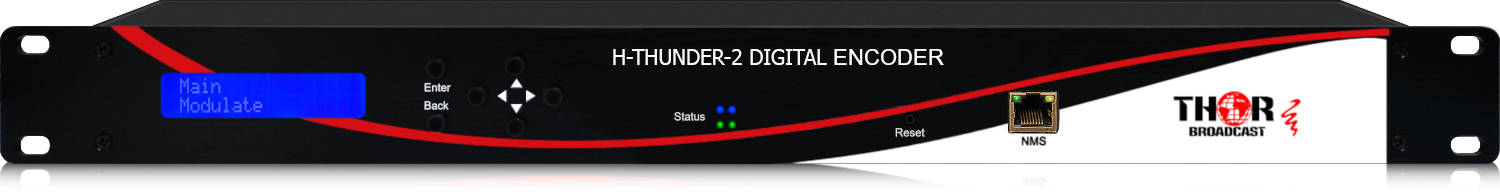

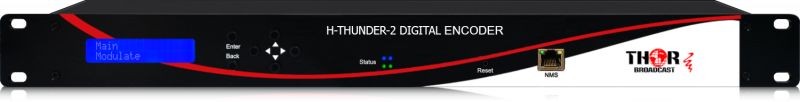

Thunder-2 (2-Channel HDMI IPTV Encoder)

The Thunder-2 HDMI IPTV Encoder is a professional, all-in-one encoding solution designed for reliable video distribution over IP networks. Unlike RF modulators, this unit focuses purely on IP streaming, eliminating the need for coaxial infrastructure and enabling flexible deployment across LAN, WAN, or internet-based systems.

The unit accepts two independent HDMI inputs, each encoded in real time using MPEG-2 and streamed as separate IP outputs. Each channel can be configured as UDP or RTP multicast/unicast, allowing seamless integration into IPTV systems, digital signage networks, and enterprise video distribution.

With support for resolutions up to 1080p/60, the encoder ensures high-quality video delivery with low latency. Its efficient compression and streaming capabilities make it suitable for bandwidth-optimized networks while maintaining excellent image clarity.

The Thunder-2 is ideal for applications where video needs to be distributed over Ethernet and RF, such as corporate environments, campuses, hotels, stadiums, and security systems. It integrates easily with IP decoders, smart TVs, media players, or software-based video players.

Designed with reliability and ease of use in mind, the unit includes a web-based management interface (NMS), allowing users to configure streams, bitrates, and network settings remotely. Its compact design and stable 24/7 operation make it a dependable solution for professional IPTV deployments.

Tags: HDMI over IP

Caracteristicas

2 HDMI input channels → 2 independent IPTV streams (simultaneous RF output too)
Supports resolutions up to 1080p/60
Video encoding: MPEG-2
Audio encoding: MPEG1 Layer II, AAC, or AC3
IP streaming output only (no RF output)
Streaming protocols: UDP, RTP (Unicast / Multicast)
Low latency operation (~500–1000 ms)
Compatible with any HDMI source (STB, camera, media player, PC)
Web-based NMS control interface
Easy configuration and firmware updates via web UI
24/7 continuous operation
Compact and cost-effective design

Accessories & Upgrades

Especificación

HDMI Encoding Section
Input	Interface					H-THUNDER-1 - 1HDMI + 1CVBS for CC H-THUNDER-2 - 2HDMI (IPTV and RF) H-THUNDER-4 - 4HDMI H-THUNDER-8 - 8HDMI + 8CVBS for CC
Video	Encoding					MPEG2
	Input						Output
	[email protected]/60i						480@30p
	576@50i						576@25p
	720@50/59.94/60p						720@25/30p
	1080@50i						1080@25p
	[email protected]/60i						1080@30p
	1080@50p						1080@25p
	[email protected]/60p						1080@30p
	Bit-rate					2.000~20.000 Mbps
	Rate Control					VBR
	Aspect Ratio					16 :9
Audio	Encoding					MPEG1 Layer2, AAC, AC3
	Sample rate				48KHz
	Bit rate					MPEG1 Layer2 (192kbps)
						AAC (VBR)
						AC3 (128kbps)
DVB-C Modulator Section
Standard					J.83A (DVB-C), J.83B
MER					≥35dB
RF frequency					54-1000MHz, 1KHz step
RF output level					-35dbm, 1dB step
Symbol rate					3.000~7.000Msps adjustable
		J.83A						J.83B
Constellation		16/32/64/128/256QAM						64/ 256QAM
Bandwidth		8M						6M
DVB-T Modulator Section
Standard				DVB-T COFDM
Bandwidth				2M, 3M, 4M, 5M, 6M, 7M, 8M
Constellation				QPSK, 16QAM, 64QAM
Code rate				1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval				1/32, 1/16, 1/8, 1/4
Transmission Mode:				2K, 8K
MER				≥35dB
RF frequency				54-1000MHz, 1KHz step
RF output level				-35dbm, 1dB step
ISDB Modulator Section
Standard			ARIB STD-B31
Constellation			QPSK, 16QAM, 64QAM
Guard Interval			1/32, 1/16, 1/8, 1/4
Transmission Mode			2K, 4K, 8K
Code rate			1/2, 2/3, 3/4, 5/6, 7/8
RF frequency			54~1000MHz, 1KHz step
RF output level			-35dbm, 1dB step
ATSC Modulator Section
Standard			ATSC A/53
Constellation			8VSB
RF output level			-35dbm,1dB step
MER			≥35dB
RF frequency			54~1000MHz, 1KHz step
RF output level			-35dbm, 1dB step
System
Management			Web
Language			English
Upgrade			Web update
General
Power supply			AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
Dimensions			482x328x44.5mm = (19"x12.9"x1.7" )
Temperature			0~45°C(operation),-20~80°C(storage)
