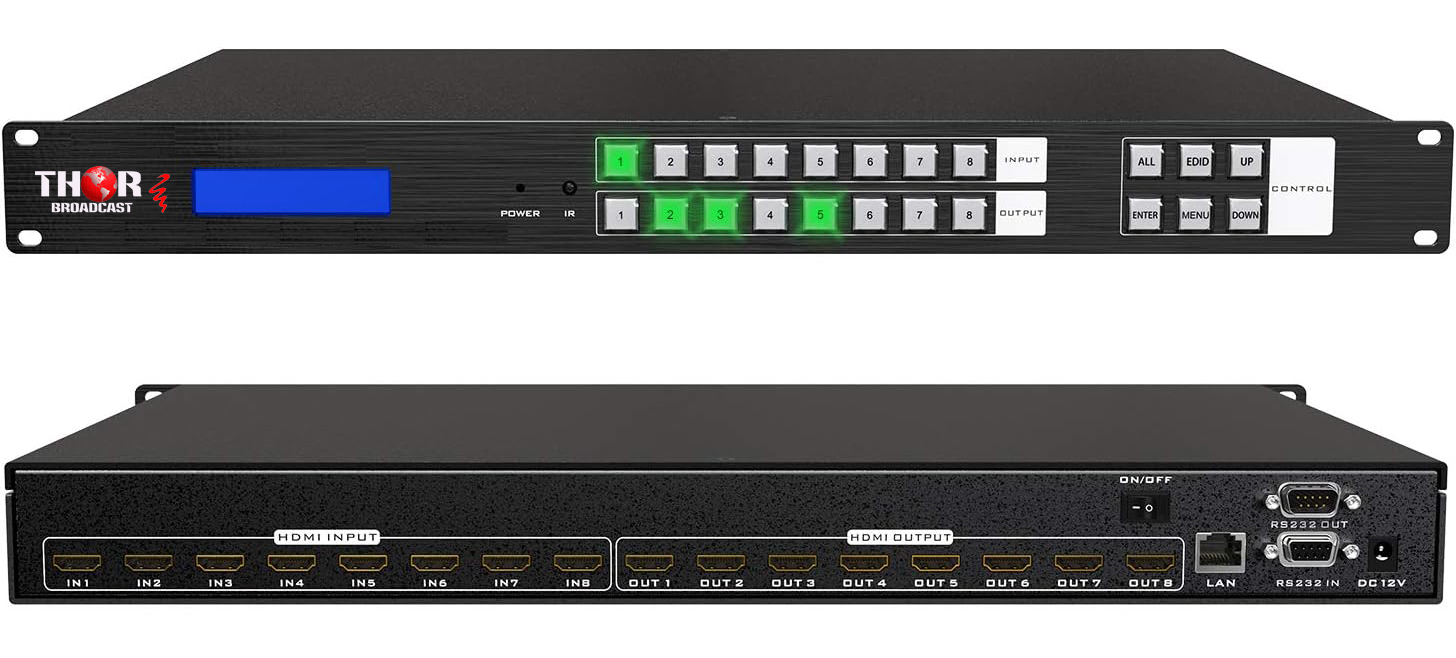

8x8 HDMI Matrix Switch 4K Rack Mount with Web GUI, RS232, IR, LAN Control

H-8x8HDMI-4K-SW
Qty: 0
Disponibilidad: Check availability Condición: nuevo QR Code 8x8 HDMI Matrix Switch 4K Rack Mount with Web GUI, RS232, IR, LAN Control
Envío: a partir de $10 Garantía: 2Yrs
preguntar por el producto
Enviar petición
Dibujos Models Accessories Especificación Apoyo

Descripción

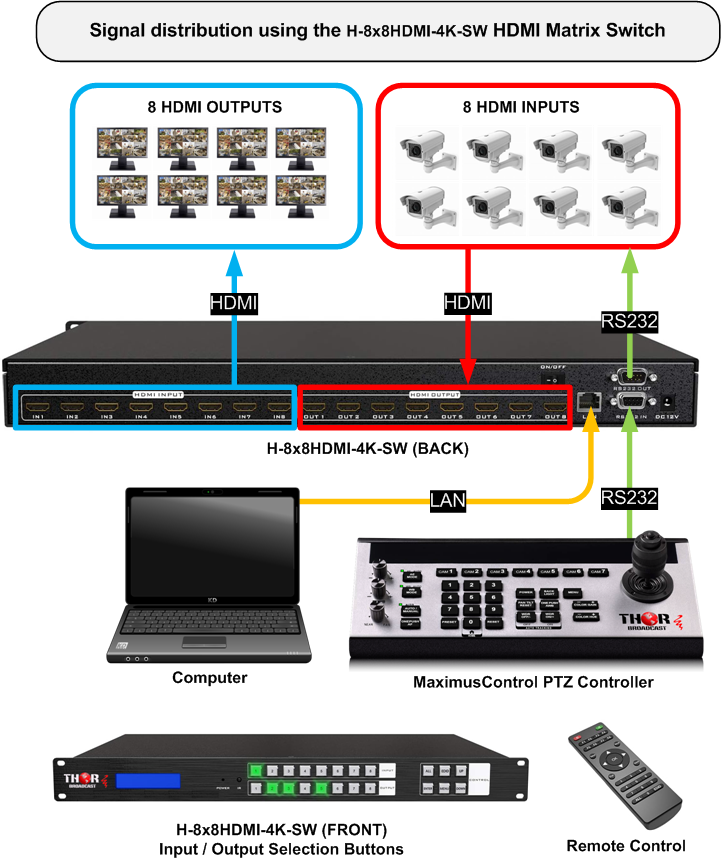

Thor Broadcast H-HDMI-MX-8X8 is a professional-grade 8x8 HDMI matrix switch designed for seamless routing of up to eight 4K HDMI sources to any combination of eight 4K displays. Whether mirroring a single source or independently controlling all outputs, this rack-mountable matrix offers total flexibility and control for advanced AV environments.

It features robust control options including front panel buttons, IR remote, RS232, LAN, and intuitive Web GUI interface. It also supports 3.5mm stereo audio extraction on output 8, making it ideal for integration into professional A/V systems.

Application Examples

  • Broadcast Control Rooms – Route live feeds to multiple monitors

  • Corporate A/V Systems – Switch between sources for presentations

  • Digital Signage Networks – Display targeted content on different screens

  • Education & Training – Feed different video sources to various classroom displays

  • Home Theater Systems – Full 4K control of multiple source and display combinations

Dibujos

Selección de modelo

H-8x8HDMI-4K-SW

Accessories & Upgrades

Especificación

Thor Broadcast 8x8 HDMI Matrix Switch Specifications
Model H-HDMI-MX-8X8
Input Ports 8x HDMI (HDMI 1.4)
Output Ports 8x HDMI, 1x 3.5mm Stereo Audio (OUT8)
Max Resolution 3840 x 2160 @30Hz
Control Methods Front Panel, IR Remote, RS232, LAN, Web GUI
Audio Support PCM, Dolby AC3, DTS 5.1/7.1, DSD
Cable Distance Up to 10 meters (HDMI 1.4 recommended)
Power DC 12V Power Adapter (included)
Rack Mount 1U Rackmount Kit Included
Dimensions 440mm x 150mm x 44mm (1U)
Included Accessories IR Remote, RS232 Cable, Rack Mount Kit, Power Supply, User Manual
