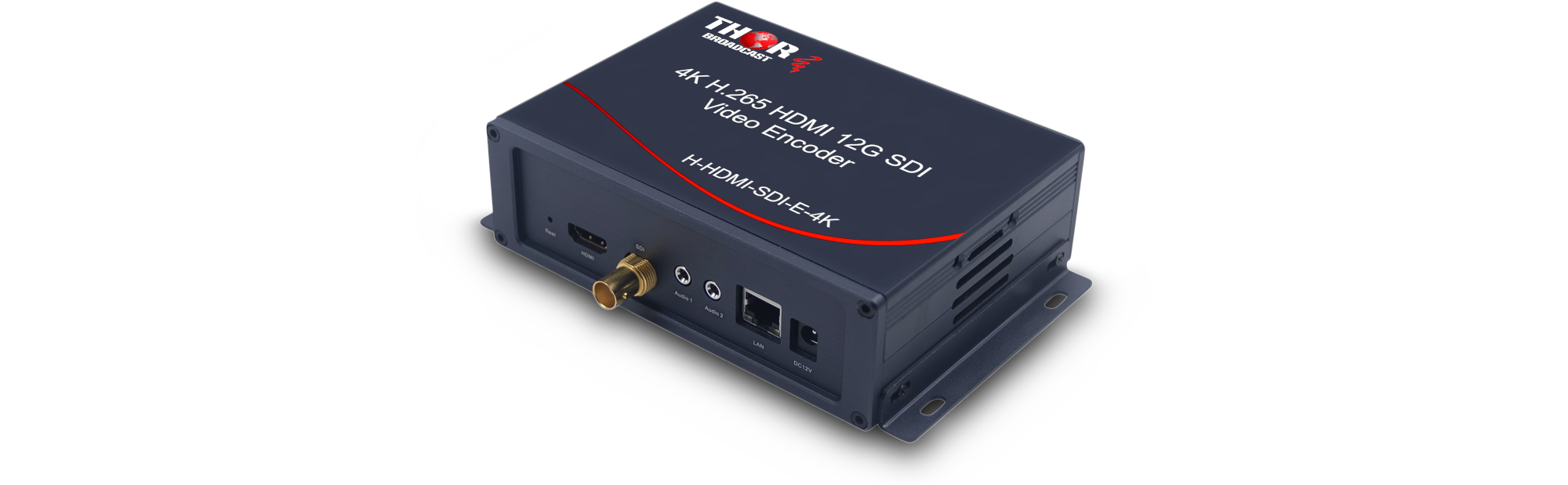

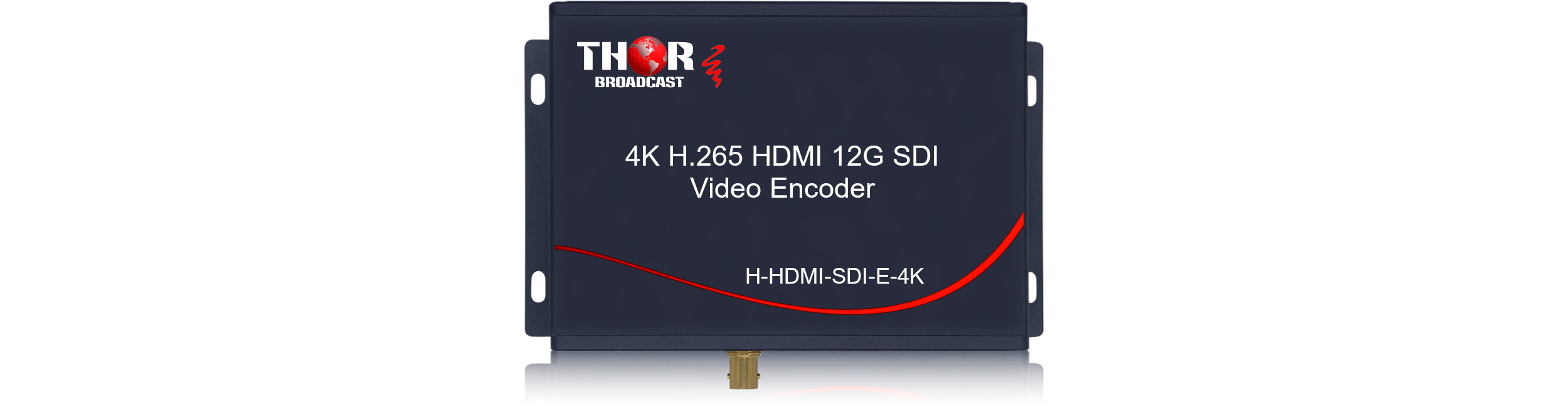

12G-SDI & HDMI Compact 4K Encoder with Record, USB, and Intuitive GUI

The Thor Broadcast H-HDMI-SDI-E-4K is a small encoder that helps you send live video from a camera or video system to the internet. Think of it as a helper that takes your video and makes it ready to be watched online. You don’t need a computer, special software, or technical skills to use it. Once it’s connected, it works on its own.

You can use it to stream live video to places like YouTube, Facebook, or other private video channels. It can even send the same video to more than one place at the same time, so different people can watch it wherever they prefer. The video stays clear and smooth, even at very high quality.

The device can also save your video directly onto a USB drive, like a flash drive. This makes it easy to keep a copy of your video to watch later or share with others. To control everything, you simply open a web page in your internet browser, where you can choose where your video goes and turn features on or off.

Overall, this device is made for people who want a reliable way to stream or record high-quality video without dealing with complicated technology. You plug it in, set it up once, and let it do the work for you.

• True 4K60 Professional Encoding
  Supports full 4K video at 60fps via HDMI and 12G-SDI, delivering broadcast-grade image quality for modern production workflows.

• Dual Independent Streaming Engines
  Encodes and streams two separate outputs simultaneously (Main + Secondary), allowing different platforms, resolutions, or bitrates from a single video source.

• Wide Protocol Compatibility
  Works with virtually all major streaming and transport protocols, including SRT, RTMP/RTMPS, RTSP, HLS, HTTP, UDP/RTP multicast, and ONVIF.

• Low-Latency Streaming with SRT Support
  Optimized for secure, reliable, and low-latency video delivery over public or private networks, ideal for remote production and live contribution feeds.

• Hardware Reliability for 24/7 Operation
  Purpose-built encoding hardware eliminates the instability of PCs, operating systems, and software-based streaming solutions.

• Integrated Recording Without a PC

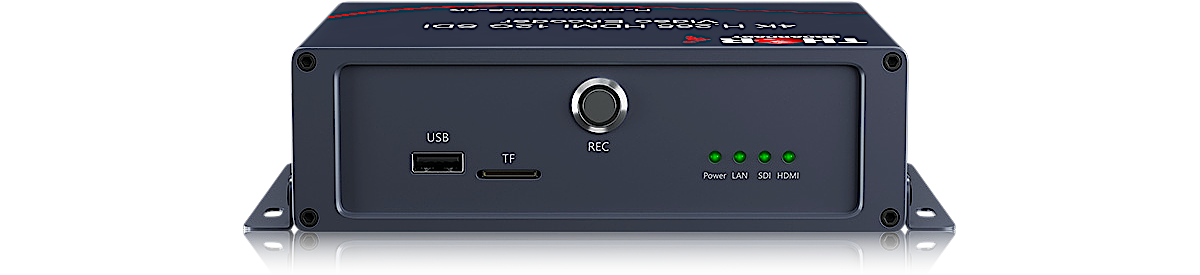

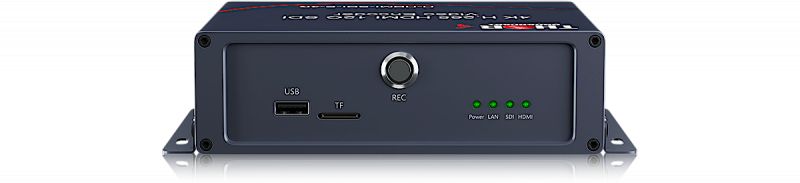

  One-button recording to USB 3.0 storage with automatic file handling, enabling simple local archiving alongside live streaming.

• Professional Audio Handling

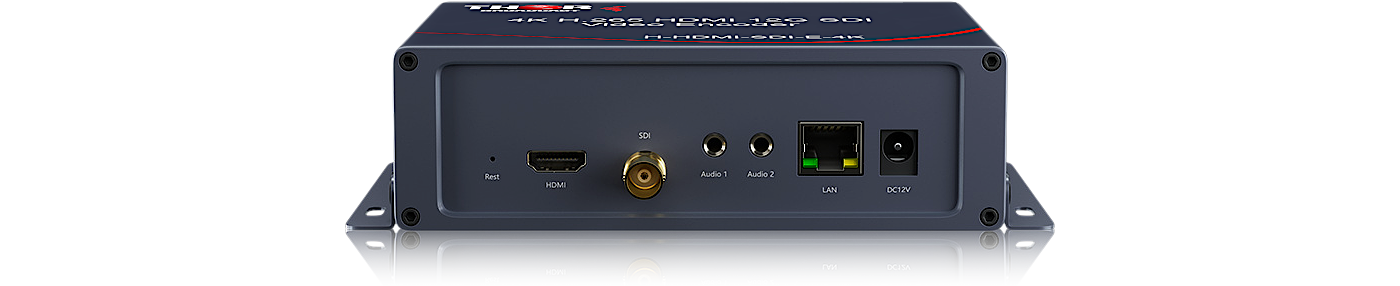

  Supports embedded audio and external analog audio inputs with multiple codec options, ensuring compatibility with broadcast, IPTV, and surveillance systems.

• Web-Based Management and Remote Control
  Fully configurable through a browser interface, allowing remote setup, monitoring, and maintenance without special software or physical access.
