Professional IPTV and streaming video decoder designed for reliable 24/7 operation in broadcast, AV, surveillance, and digital signage systems.
The Thor IP-HDMI-CVBS-4K-D is a compact 4K IP video decoder built to receive H.265 or H.264 network streams and convert them into local video outputs for monitors, displays, and legacy AV systems. It supports a wide range of IPTV and streaming protocols, making it an excellent choice for professional video distribution across commercial and broadcast environments.
The IP-HDMI-CVBS-4K-D is a versatile 4K IP decoder created for installations where dependable video decoding and flexible output options are essential. It accepts IP streams over standard Ethernet networks and decodes H.265 / HEVC, H.264 / AVC, and MJPEG formats, then delivers video to HDMI, VGA, and analog video outputs for integration into both modern and legacy systems.
Designed for continuous operation, this decoder uses an embedded Linux platform for stable 24/7 performance in demanding applications. It supports a broad range of streaming protocols including HTTP, HLS, FLV, RTSP, RTMP(S), SRT, and UDP/RTP in both unicast and multicast environments, making it suitable for IPTV headends, digital signage networks, surveillance monitoring, control rooms, and enterprise AV workflows.
The unit supports output resolutions up to 3840 × 2160 at 30fps and includes web-based management for easy setup and remote administration. OSD capability allows text and image insertion directly on the output, which can be useful for labeling channels, adding branding, or displaying operational information.
Whether used as a standalone decoder at a display endpoint or as part of a larger IP video system, the Thor IP-HDMI-CVBS-4K-D provides a cost-effective and professional-grade solution for high-quality video delivery over IP.
Thor Broadcast delivers professional video distribution solutions for broadcast, CATV, IPTV, AV, and fiber transport applications. The IP-HDMI-CVBS-4K-D is designed to give integrators a dependable decoder with flexible outputs, broad protocol support, and stable long-term performance for real-world deployments.
[Camera / HDMI Source]
↓
[Encoder]
(H.264 / H.265 IP)
↓
[Network Switch]
↓
(Ethernet RJ45)
↓
[IP-HDMI-CVBS-4K-D Decoder]
↓ ↓ ↓
HDMI VGA CVBS
↓ ↓ ↓
TV Monitor Analog System

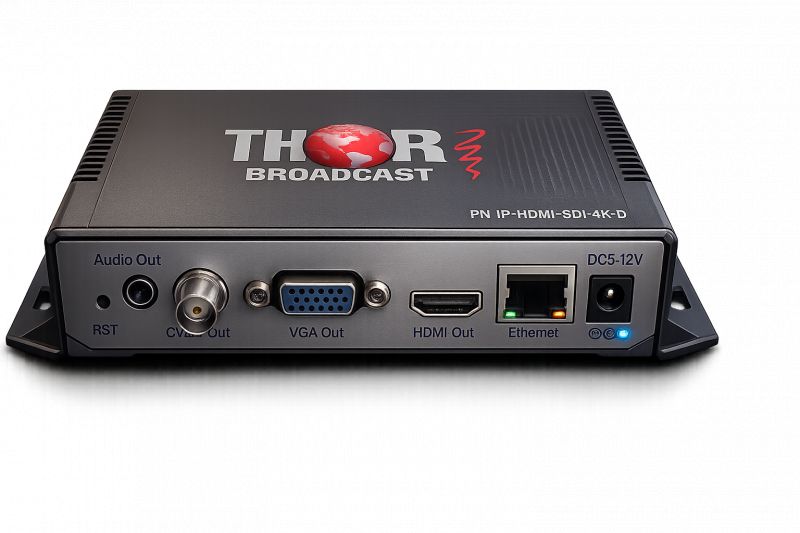

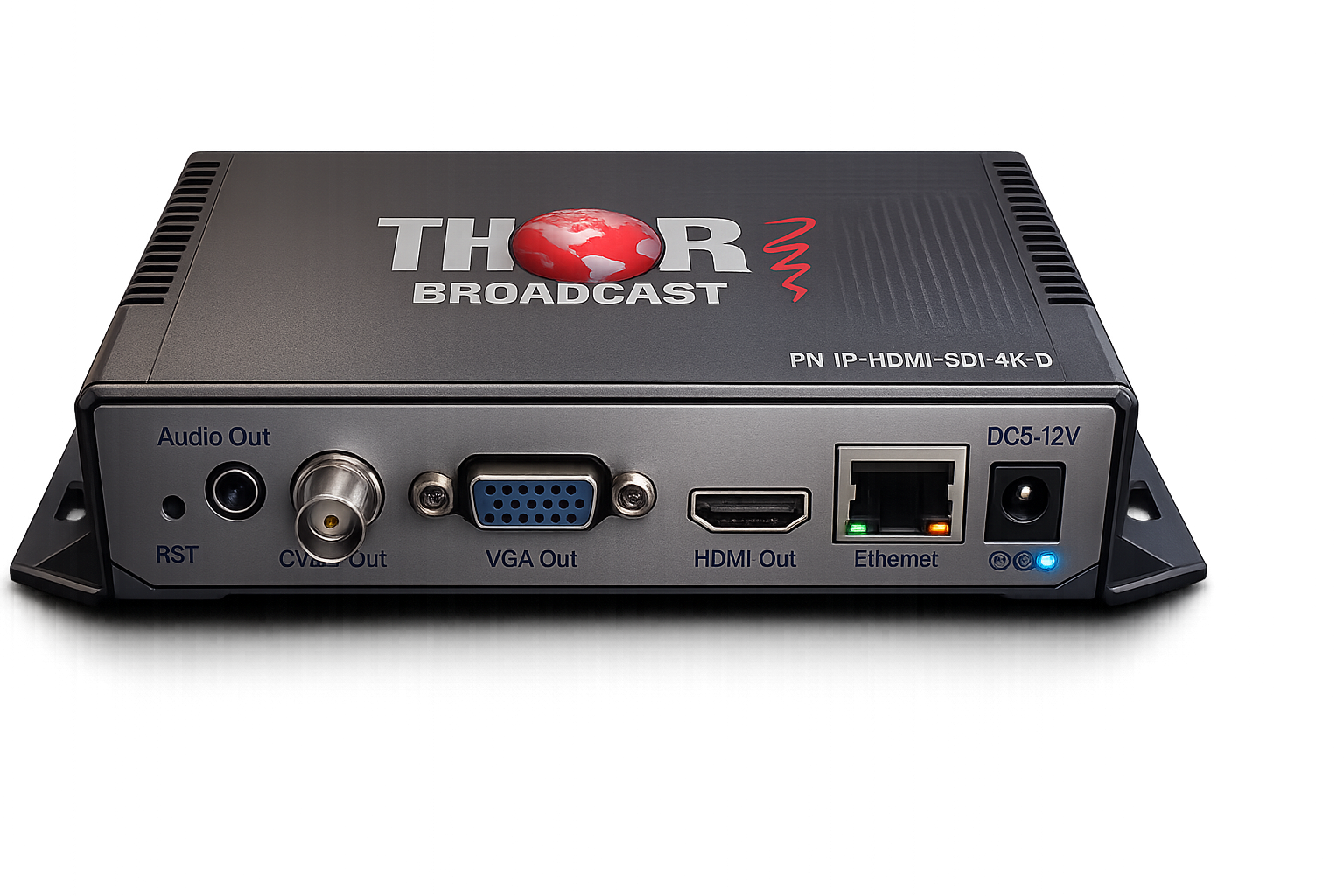

IP-HDMI-CVBS-4K-D - 4K H.265 H.264 IP Video Decoder with HDMI VGA and CVBS Output
| Model | IP-HDMI-CVBS-4K-D |
| Video Decoding | H.265 / HEVC, H.264 / AVC High/Main/Baseline, MJPEG / JPEG |
| Max Video Resolution | 3840 × 2160 @ 30fps, 1080p @ 60fps |
| Bitrate Range | 0.1 to 32 Mbps |
| Frame Rate | 1 to 60 fps for 1080p and below, 4K @ 30fps |
| Streaming Protocols | HTTP, HLS, FLV, RTSP, RTMP(S), SRT, UDP/RTP, ONVIF |
| IP Streaming Mode | Unicast / Multicast |
| Video Outputs | HDMI, VGA, Analog Video -CVBS (NTSC or PAL) |
| HDMI Output Formats | 3840×2160p30, 1440p30, 1080p60, 1080i60, 1080p50, 1080i50, 1080p30, 1080p25, 720p60, 720p50, 576p50, 480p60 |
| VGA Output Formats | 1080p60, 1080i60, 1080p50, 1080i50, 1080p30, 1080p25, 720p60, 720p50, 576p50, 480p60 |
| Audio Formats | AAC, AAC+, AAC++, MP3, MP2, AC3, G.711 |
| Audio Output | HDMI embedded audio and external analog stereo audio |
| Audio Sample Rates | 8000 / 11250 / 22500 / 44100 / 48000 Hz |
| Network Interface | RJ45 Gigabit Ethernet, 1000 Mbps |
| CVBS Analg Video Output | NTSC or PAL |
| Control Method | Web-based management interface |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -20°C to +80°C |
| Humidity | 5% to 90% non-condensing |
| Chassis Size | 1U, 483 × 250 × 44.5 mm |
| Approx. Weight | 4.5 kg |
| Power Supply | AC 100–240V, 50/60Hz, DC 12V / 8.5A adapter |

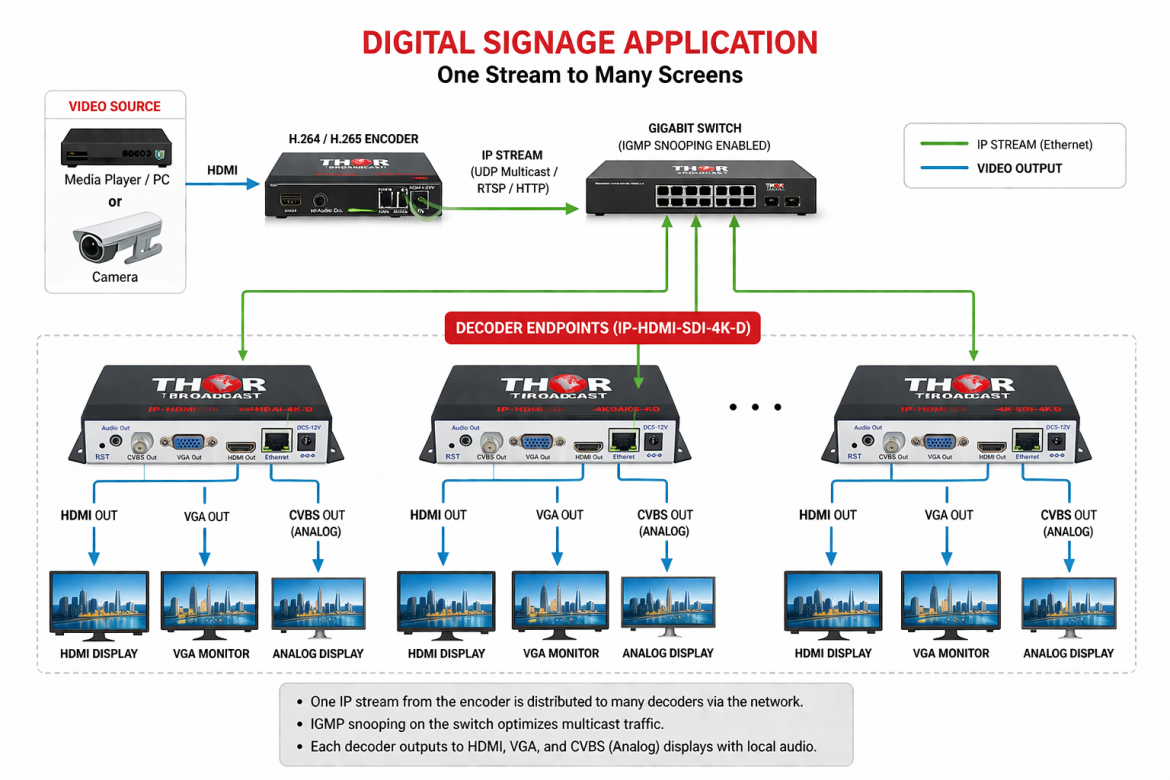

The IP-HDMI-CVBS-4K-D decoder enables scalable digital signage systems where a single video stream is distributed across multiple displays over a standard IP network. Using multicast or replicated streams, the same content can be delivered simultaneously to many endpoints with minimal bandwidth usage.
1. Content Source
2. Encoder / Headend
3. Network Distribution
4. Decoder Endpoints (IP-HDMI-CVBS-4K-D)
5. Displays
