| Availability: | Check availability | Condition: | new |
|
| Shipping: | starting at $10 | Warranty: | 5Yrs |

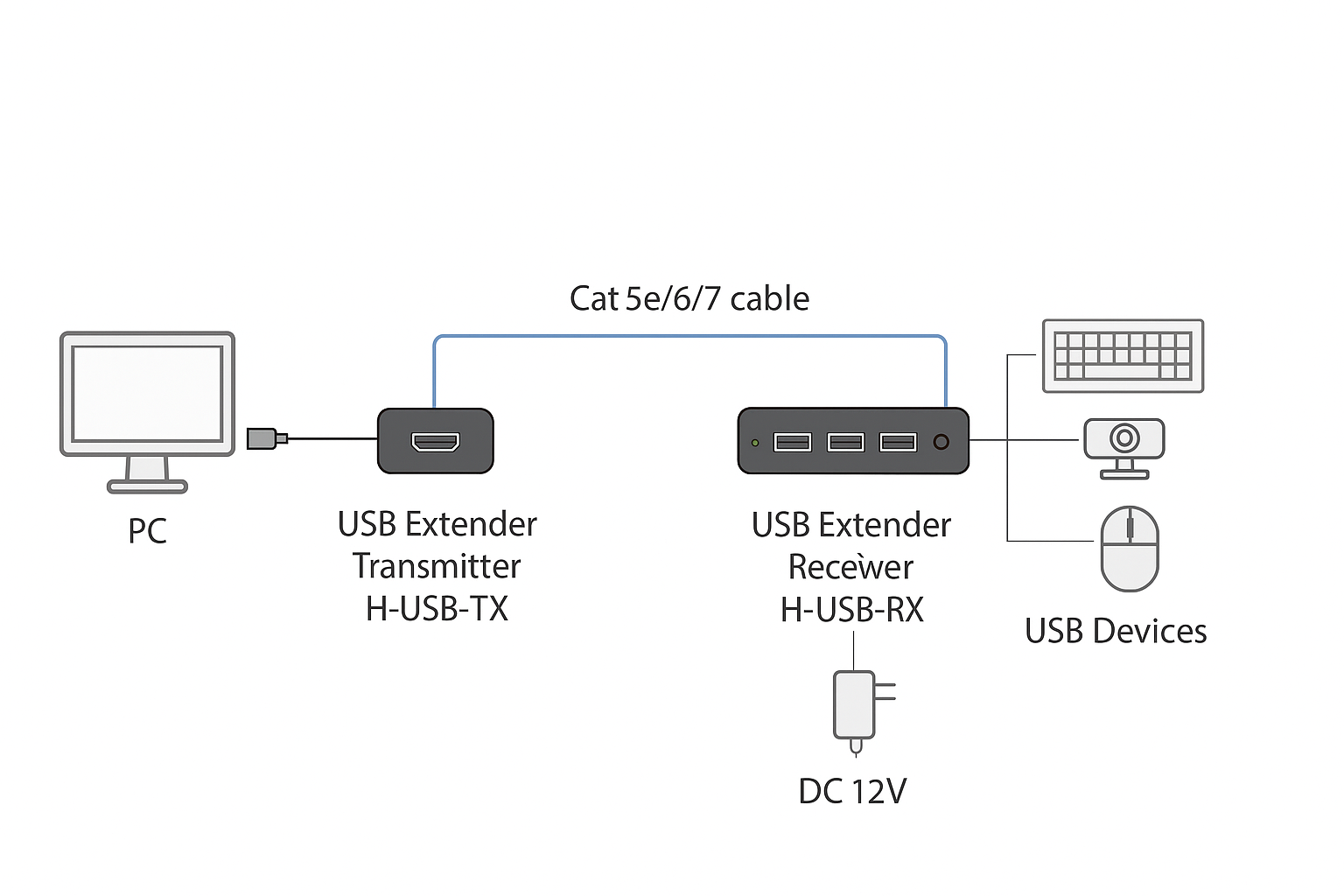

It is a high-speed USB 2.0 extension solution designed for reliable long-distance USB signal transmission over a single CAT5e/6/7 cable up to 50 meters (164 ft).

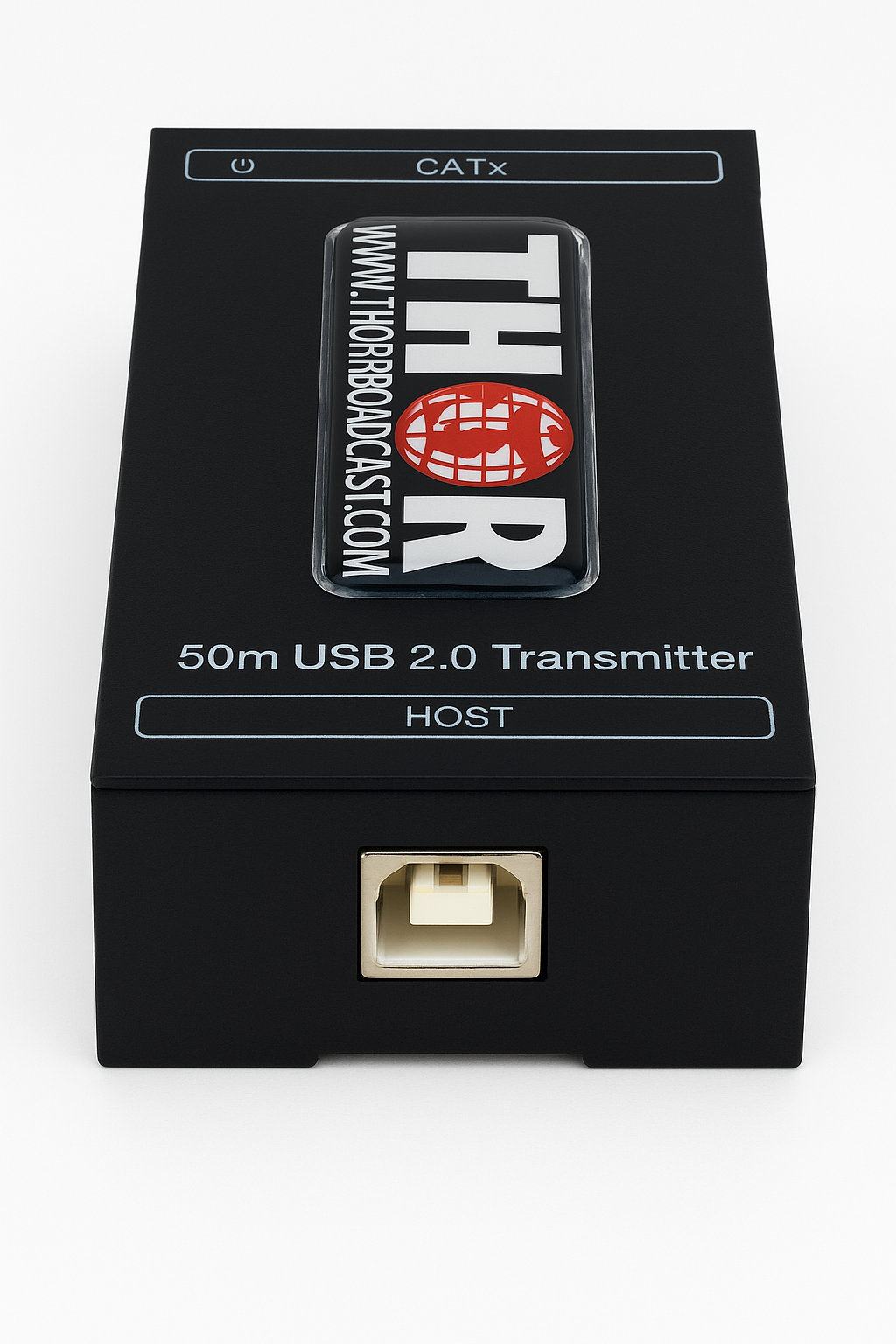

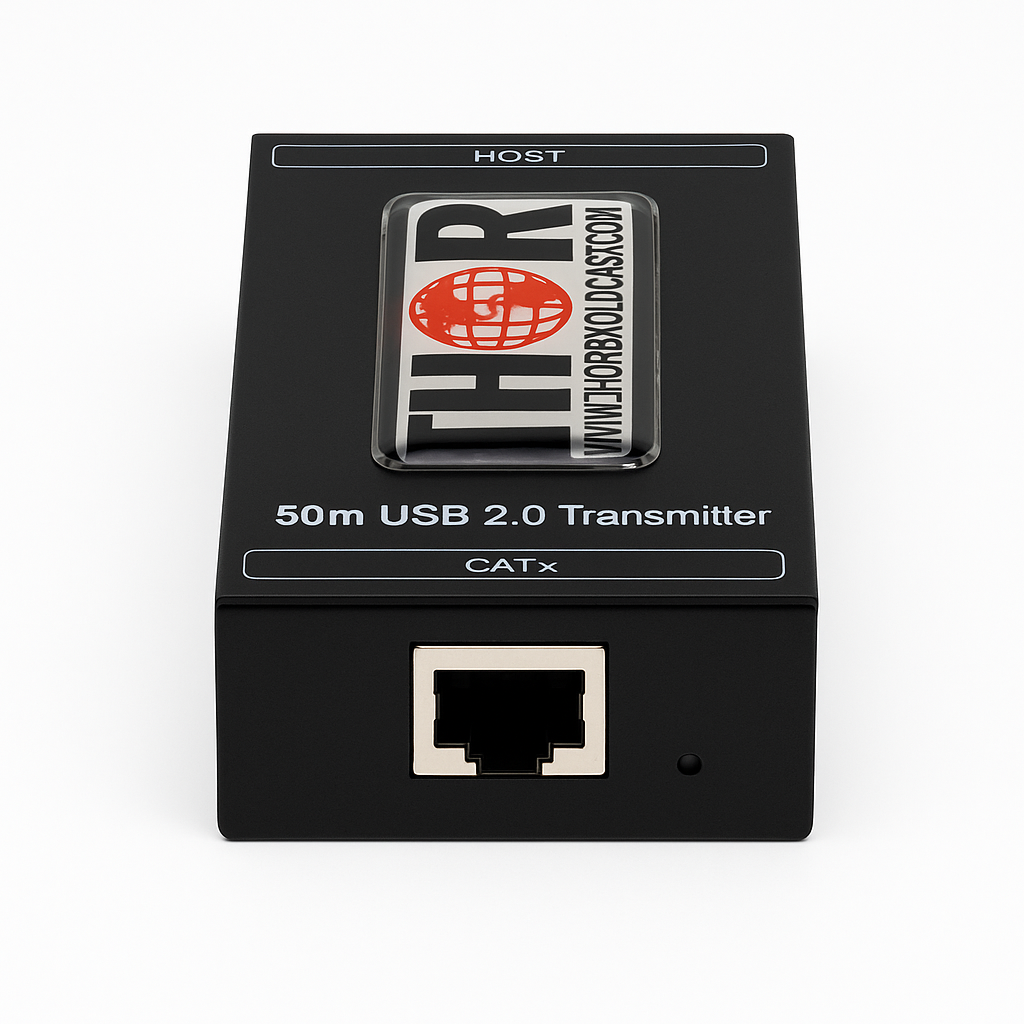

The transmitter (H-USB-TX) connects to a host PC via USB-B, while the receiver (H-USB-RX) functions as a 4-port USB hub, supporting USB peripherals like keyboards, mice, webcams, and microphones. No driver installation required – just plug and play.

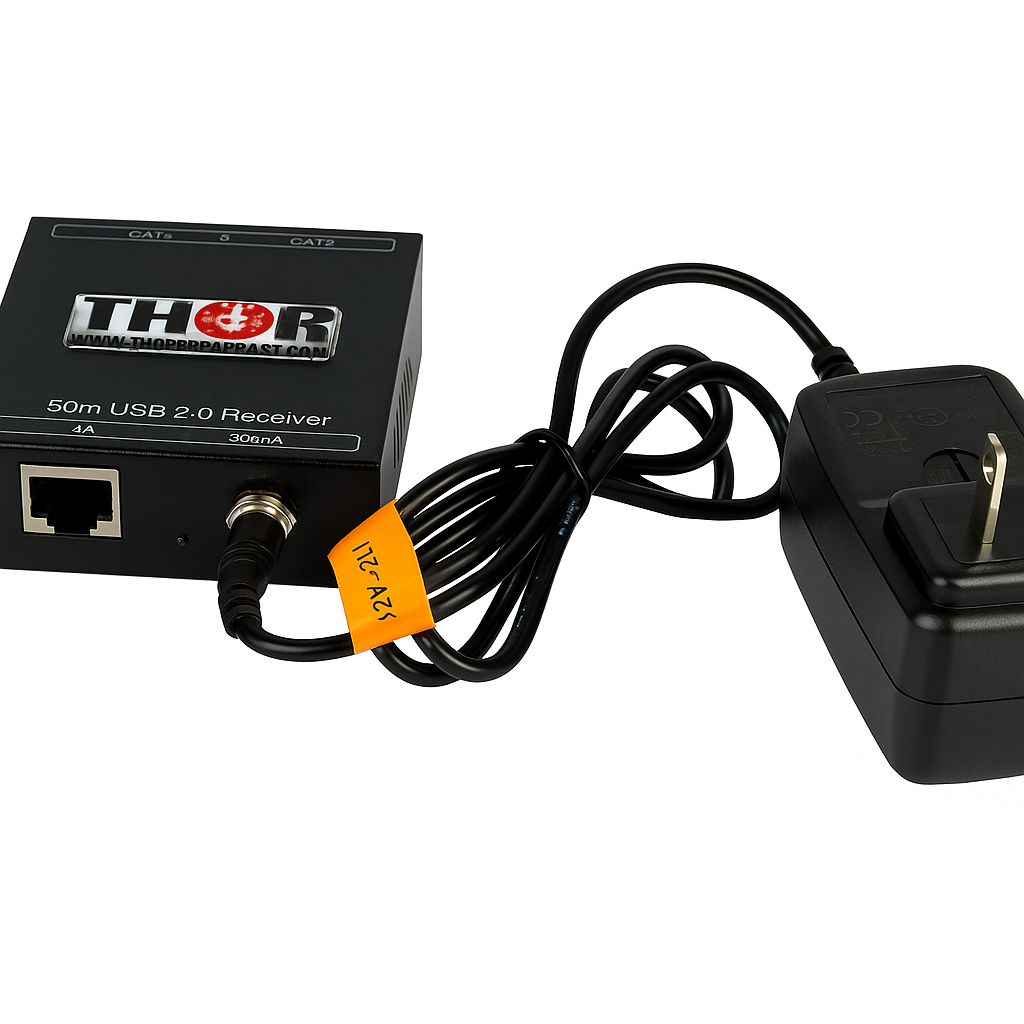

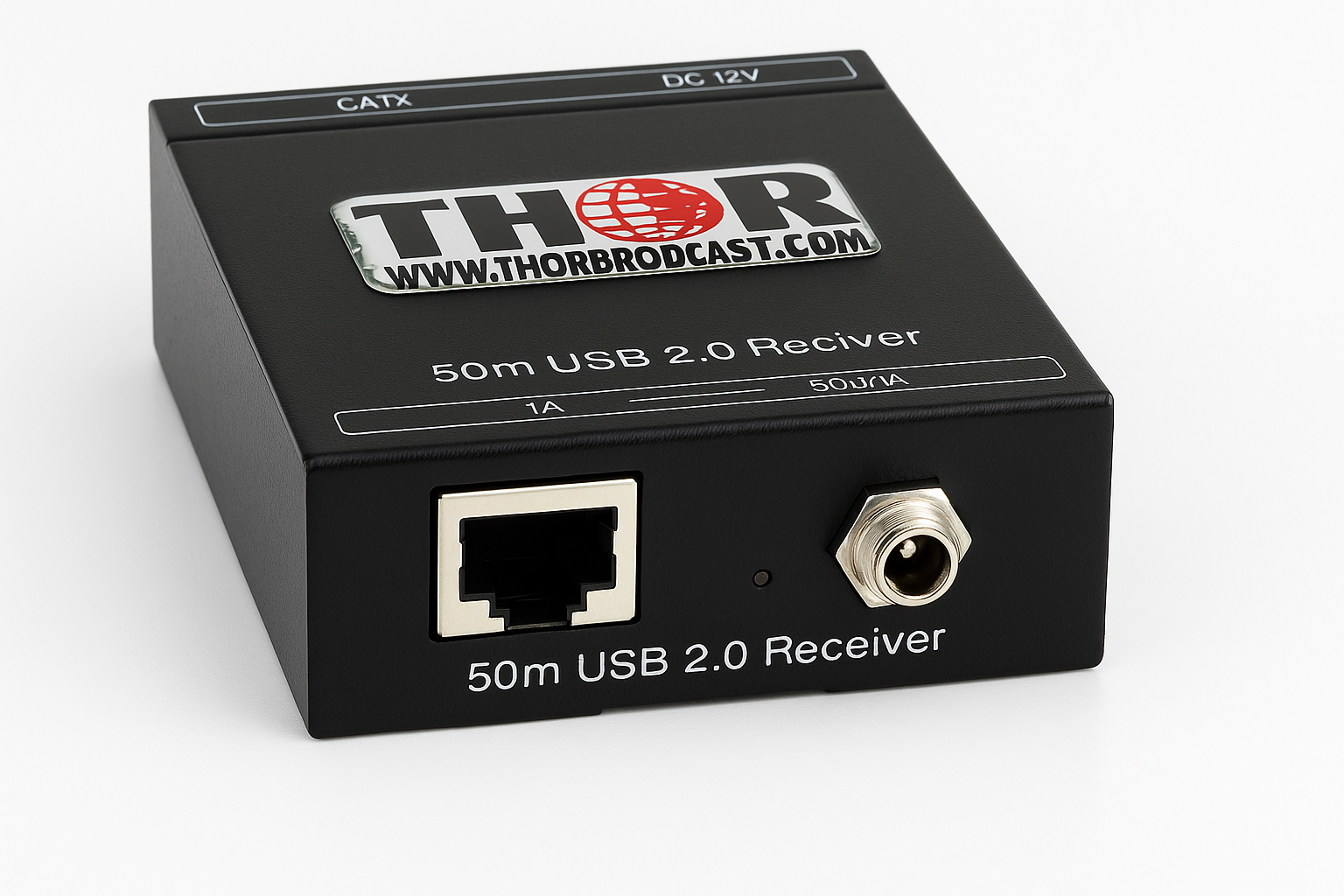

The receiver is powered by an external 12V adapter, supporting both low and high-powered USB devices. Its compact, robust design is ideal for conference rooms, classrooms, AV racks, control rooms, and any application requiring remote USB access.
Extending USB for remote webcams or microphones in meeting rooms
KVM extension for industrial control setups
USB connection for interactive whiteboards or touch panels
Remote USB access in control centers or AV closets
Digital signage systems requiring local input devices far from the media player
Extends USB 2.0 Signals Up to 50m (164 ft)
Transmit USB over a single CAT5e/6/7 Ethernet cable – no signal degradation or latency.
High-Speed USB 2.0 Compliance
Supports data rates up to 480 Mbps for fast and reliable performance with all USB 2.0 devices.
Receiver with Built-In 4-Port USB Hub
Connect up to four USB peripherals simultaneously—ideal for keyboard, mouse, webcam, printer, etc.
Powered Receiver with USB Power Distribution
Two ports provide 5V/1A, and two provide 5V/500mA, supporting both low and high-powered USB devices.
Driver-Free Plug-and-Play Operation
No drivers or configuration required—just connect and use. Compatible with Windows, macOS, and Linux.
Compact and Durable Metal Housing
Robust enclosure suitable for industrial, commercial, and AV rack environments.
Wide Application Range
Perfect for KVM extension, AV system control, remote USB device mounting, and more.
Power and Link Status LEDs
Quick visual diagnostics for power and connectivity.

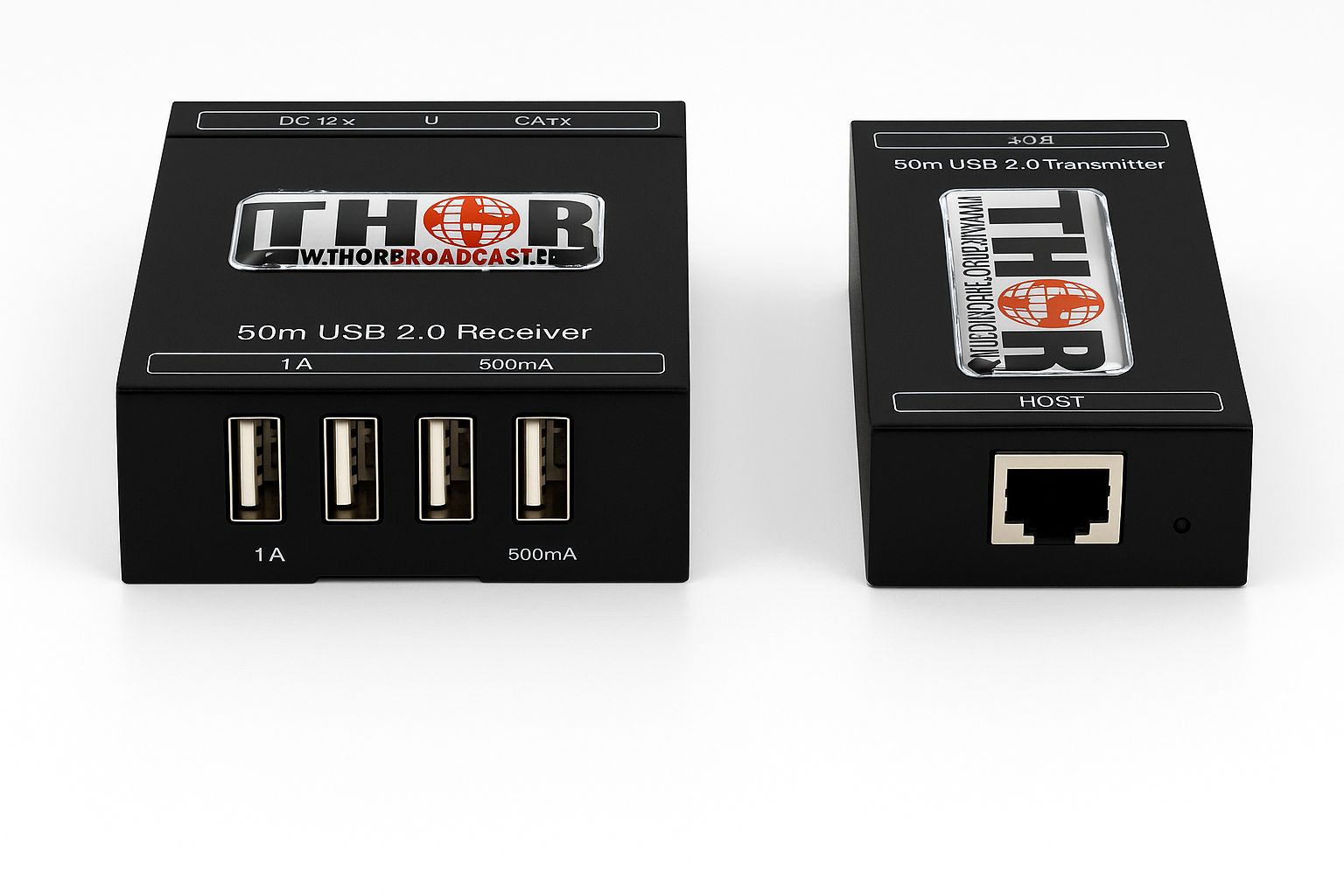

H-USB-TX / RX - USB 2.0 Over Ethernet Extender Transmitter and Receiver kit
| H-USB-TX / H-USB-RX USB 2.0 Extender Specifications | |
|---|---|
| Transmission Distance | Up to 50m (164 ft) over CAT5e/6/7 |
| Data Rate | 480 Mbps (USB 2.0) |
| Transmitter Input | 1x USB Type-B (Host) |
| Transmitter Output | 1x RJ45 CATx Port |
| Receiver Input | 1x RJ45 CATx Port |
| Receiver Output | 4x USB Type-A |
| USB Power Output | 2x 5V/1A, 2x 5V/500mA |
| Power Supply (Receiver) | DC 12V 2A (included) |
| OS Compatibility | Windows, macOS, Linux |
| Transmitter Dimensions | 43 × 78 × 23 mm (1.7” × 3.1” × 0.9”) |
| Receiver Dimensions | 64 × 78 × 23 mm (2.5” × 3.1” × 0.9”) |
| Weight | TX: 91g / RX: 136g |
| Certifications | FCC Class A compliant |
