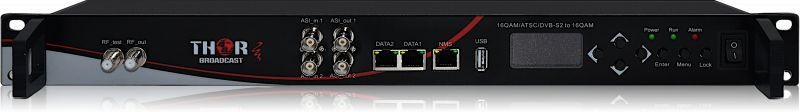

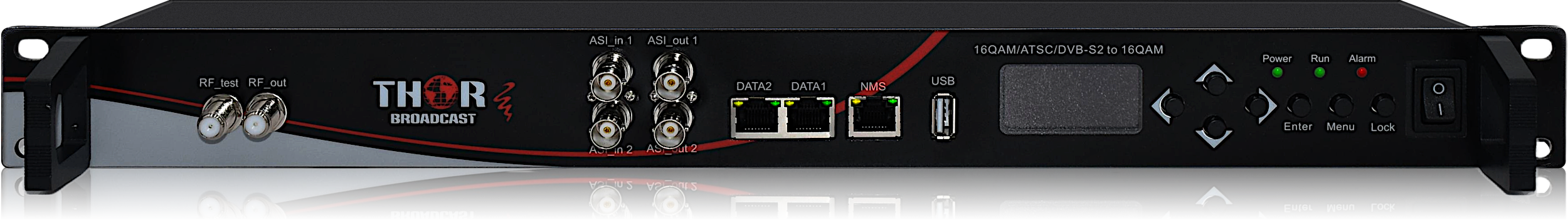

CATV RF QAM Transmodulator

Descripción

CATV RF to IP Gateway + CATV RF Trans - modulator for QAM ATSC DVBS/S2 DVB-T ISDB-T

16 RF Inputs to IP outputs +16 RF Outputs (RF to IP Gateway + RF to RF transmodulator)
This unit can take existing ATSC channels and convert them to IP streams and QAM RF channels simultaneously (RF input = IP + RF output)
EXAMPLE Model numbers can be (H-16QAM-IP-ATSC ---- H-16DVBS-IP-ATSC)
RF Inputs can be ATSC / QAM / DVBS-S2/ DVB-T/ ISDB-T
RF Outputs can be ATSC / QAM /DVB-T / ISDB-T

This gateway and transmodulator is a unique device that can easily convert existing RF streams, up to 16 frequencies and convert to IP and RF channels. This will allow you to add any RF to existing RF channel bank as well as create IP streams for easy access via LAN. For consideration you can convert ATSC to IP and QAM, or you can convert DVBS2 to IP and QAM, or also use it as a translator so you can take 16 QAM frequencies and convert to IP and 16 QAM (different frequencies, if you like to rearrange your channel lineup). The vast array of options make this an ideal headend piece to quickly and efficiently become more dynamic, add free OTA channels to a QAM headend, or simply create a RF to IP gateway with existing RF programs. This is the exact same unit that is mentioned above with the added benefit of transmodulation, we can essentially mix and match any RF to any RF with a couple exceptions. Please contact your local dealer or Thor directly for more information.

Simply put, it is a 16 RF to 16 RF + IPTV gateway. This is a multi-standard CATV, Air, and Satellite Digital modulation standard transmodulator-converter with IPTV output.

The unit has 16 individual tuner inputs, and depending on the model, it can support the following modulation standards:

ATSC
DVB-C Annex A/B/C QAM 64/256
DVB-S/S2
DVB-T, DVB-T2
ISDB-T

Depending on the model, the output can be ATSC, QAM, DVB-T, or ISDB-T.

The unit can also be used for the same modulation conversions, like QAM to QAM or ATSC to ATSC, for UP or Down channel conversion.

In addition, the device has an IPTV output, so each TS from the inputs can be outputted as a UDP/RTP multicast or unicast for local LAN video distribution over the network.

The device also has 2 independent DVB-ASI inputs, allowing additional TS programs from external encoders to be injected into the modulator as separate channels or subchannels."

This version corrects grammatical errors and improves the flow and clarity of the original text. Let me know if there are any other areas you need assistance with

Caracteristicas

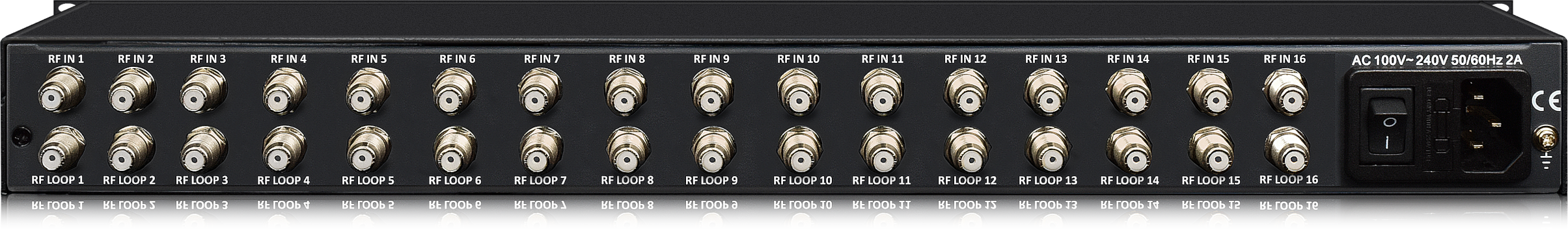

INPUTS: 16 ATSC or QAM or DVB-S/S2 FTA or DVB-T or ISDB-T RF Tuners + 2 ASI inputs
OUTPUTS : 16 channels QAM or ATSC or DVB-T or ISDB-T ( model dependendt)
Excellent RF output performance index, MER≥40db
16 groups multiplexing +16 groups scrambling +16 groups QAM modulating
1 IP(MPTS) output over UDP or RTP
512 IP SMPTS' output over UDP or RTP
Accurate PCR adjusting
PSI/SI editing and inserting
VCT edit
Web management, Updates via web
16RF to IP+ 16RF ( any combination )

Dibujos

Selección de modelo

Models :

Satt or Cable or Air RF to IP and RF Translator ( transmodulator)

H-16ATSC-IP-16ATSC : 16 ATSC to 16 ATSC and IP out
H-16ATSC-IP-16QAM : 16 ATSC to 16 QAM and IP out
H-16QAM-IP-16ATSC : 16 QAM to 16 ATSC and IP out
H-16QAM-IP-16QAM : 16 QAM to 16 QAM and IP out
H-16DVBS-IP-16ATSC 16 DVBS/S2 to 16 ATSC and IP out
H-16DVBS-IP-16QAM : 16 DVBS/S2 to 16 QAM and IP out
H-16DVBS-IP-16DVBT : 16 DVB-T, DVB-T2 to 16DVB-T and IP out
H-16DVBT-IP-16QAM : 16 DVB-T, DVB-T2 to 16QAM and IP out

Especificación

Input	16 INPUT FTA Tuner selection:: DVB-S/S2 OT ATSC or DVB-C Annex A/B QAM (Model dependent)
	512 IP (GE1only)input over UDP and RTP protocol
	2 ASI input, BNC interface
Tuner Section	DVB-S	Input Frequency	950-2150MHz
		Symbol rate	2-45Msps
		Signal Strength	-65~-25dBm
		FEC Demodulation	1/2, 2/3, 3/4, 5/6, 7/8 QPSK
	DVB-S2	Input Frequency	950-2150MHz
		Symbol rate	QPSK 1~45Mbauds 8PSK 2~30Mbauds
		Code rate	1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
		Demodulation Mode	QPSK, 8PSK
Multiplexing	Maximum PID Remapping	128per input channel
	Function	PID remapping (automatically or manually)
		Accurate PCR adjusting
		Generate PSI/SI table automatically
Modulation Output	Modulation Output format	ATSC or DVB-C Annex A / B QAM ( model dependendt, please chek model selection)
	Standard	EN300 429/ITU-T J.83A/B or 8VSB ( ATSC model )
	MER	≥40db
	RF frequency	50~960MHz, 1KHz step
	RF output level	-20~+10dbm(87~107 dbµV),0.1db step
	Symbol Rate	5.0Msps~7.0Msps, 1ksps stepping
	Constellation	16/32/64/128/256QAM
		J.83A	J.83B
	Constellation	16/32/64/128/256QAM	64/256 QAM
	Bandwidth	8M	6M
System	Remote management	Web NMS (10M/100M)
	RF Out	16 DVB-C output or ATSC ( model dependendt, please chek model selection)
	IP Out	1 IP (MPTS) output over UDP and RTP/RTSP (GE1 only) Mirrors one carrier
	Language	English
	Software Upgrading	Web
General	Dimension (WDH)	482mm×300mm×44.5mm (1RU 19x8x3)
	Weight	3.7kg
	Temperature	0~45°C(Operation) ; -20~80°C(Storage)
	Power	AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ
	Consumption	25W

Question and Answers

Answer:

Great question, our units are very flexible and designed exactly for this type of application.

You are not limited to passing the full RF stream. Our gateways can work in both ways—you can pass the entire transport stream or select only the specific sub-channels (programs) you want, depending on your bandwidth needs.

You can take a look at:

They can output streams as UDP multicast or unicast, and you can choose between full MPTS or selected programs (SPTS),

making them very efficient for transport over GRE tunnels.

Please review and let me know if this fits your setup.

--------------------

SPTS capability I think is exactly what we need for efficiency. If you use these as SPTS, does that limit each tuner to one channel? or can we send say 2/4 of the subchannels from one tuner? We have 6 desired RF channels but may want to send about 16 channels all together. About half of what's available. Would we need the H-16atsc or would the H-8 work? ------------------------ Each tuner is not limited to one channel. From a single RF carrier, you can select multiple sub-channels, and the unit will generate a separate SPTS stream for each one, only the specific programs you choose. In your case with 6 RF channels and approximately 16 total programs, the H-8ATSC-IP will be more than enough. You can tune those 6 carriers and pull multiple sub-channels from each to reach your 16 streams. There is no need for the 16-tuner unit unless you plan to expand your RF carrier count later.

Answer:
As we discussed, there are several ways to approach your installation and applications. Here are some key points to consider: 1. **RF Input Power:** The RF input power into the 32MW TX should be +15-+30dbmv. 2. **Optical Level:** The optical level by the RX should be about +/-3db. If this is too high, you can use optical attenuators like the 5db SC/APC to SC/APC. F-AT-XX-SC/APC - https://thorbroadcast.com/product/fiber-optic-attenuators.html F-FOM - https://thorbroadcast.com/product/fiber-optic-power-meter-universal-connector-st-sc-fc.html 3. **Fiber Type:** This RF over fiber link supports single-mode fiber only. 4. **QAM to IP Gateway:** You can use a 16ch QAM to IP gateway for additional IP channels. it will convert all programs to UDP multicast . H-16QAM-IP - https://thorbroadcast.com/product/16-rf-tuners-to-iptv-1.html/117 This is link to our IP STB for your reference H-STB-IP https://thorbroadcast.com/product/compact-ip-decoder-set-top-box.html 5. **HDMI Encoder:** You can use your existing HDMI encoder for additional IP channels.
