It supports 4/8/12 HDMI input, one DVB-C (ATSC optional) tuner input and 256 IP input with Data1 (GE) port. It also supports DVB-C RF out with 16 non-adjacent carries or DVB-T RF out with 8 non-adjacent carriers and supports 16 MPTS as mirror of 16 carriers or 8 MPTS as mirror of 8 carriers through Data2 (GE) output port. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment
version,and 8 MPTS out in DVB-T version)

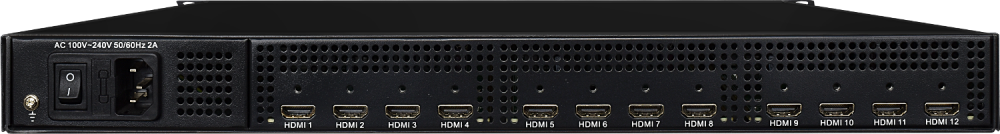

This Encoder is the new broadcasting audio & video encoding and multiplexing device with powerful functionality. It is equipped with 12 HDMI audio & video input interfaces and 12 CC input ports (Closed Caption). It supports both MPEG-2 and MPEG-4 AVC/H.264 HD/SD video encoding and MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) audio encoding (Optional), AC3 (2.0/5.1) pass through. Its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc. |
Key features
|
Technical specification
Input |
12 HDMI inputs 12 CC (closed caption, EIA608/EIA708) input, BNC interface |
|||
Video |
Resolution |
Input |
1920*1080_60p, 1920*1080_50p,1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i |
|
Output |
1920*1080_60p, 1920*1080_50p,1920*1080_60i, 1920*1080_50i, 1440*1080_60i, 1440*1080_50i, 1280*720_60p, 1280*720_50P, 720*576_50p, 720*576_50i, 720*576_30p, 720*576_25p, 720*480_60p, 720*480_60i,720*480_30p, 720*480_25p,320*240_60p,320*240_50p, 320*240_30p, 320*240_25p,320*180_60p, 320*180_50p, 320*180_30p, 320*180_25p, 960*540_50i, 704*576_50i,704*480_60i, 640*576_50i 640*480_60i, 544*576_50i,544*480_60i, |
|||
Encoding |
MPEG2 & MPEG4 AVC/H.264 |
|||
Bit-rate |
0.8~19Mbps for H.264 encoding 1~19Mbps for MPEG-2 encoding |
|||
Rate Control |
CBR/VBR |
|||
GOP Structure |
GOP B Frame: 0-3, GOP P Frame: 0-6 |
|||
Aspect Ratio |
4:3; 16:9 |
|||
Advanced Pretreatment |
De-interlacing, noise reduction |
|||
Audio |
Encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) encoding (Optional), AC3 (2.0/5.1) passthrough |
||
Sampling rate |
48KHz |
|||
Resolution |
24-bit |
|||
Bit-rate |
64Kbps-320kbps each channel |
|||
Multiplexing |
Maximum PID Remapping |
256 input per channel |
||
Function |
PID remapping ( automatically or manually) |
|||
Accurate PCR adjusting |
||||
Generate PSI/ SI table automatically |
||||
Stream output |
1 MPTS and 12 SPTS IP output over UDP and RTP/RTSP, 2*1000M Base-T Ethernet interface, Data 1 and Data 2 1 ASI output as mirror of MPTS |
|||
System function |
Network management (WEB) |
|||
Ethernet software upgrade |
||||
Miscellaneous |
Dimension (W×L×H) |
482mm×440mm×44mm |
||
Approx weight |
8kg |
|||
Environment |
0~45°C(work);-20~80°C (Storage)
|
|||
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
|||
Power consumption |
20W |
Input |
4/8/12 HDMI inputs for option 1 DVB-C(ATSC optional) Tuner for re-mux, F type interface 256 IP input over UDP and RTP, DATA1, RJ45 |
|||||
Video |
Resolution |
Input |
1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, |
|||
Output |
1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, |
|||||
Encoding |
MPEG-4 AVC/H.264 |
|||||
Bit-rate |
1Mbps~13Mbps each channel |
|||||
Rate Control |
CBR/VBR |
|||||
GOP Structure |
IP…P (P Frame adjustment, without B Frame ) |
|||||
Audio |
Encoding |
MPEG-1 Layer 2 |
||||
Sampling rate |
48KHz |
|||||
Resolution |
24-bit |
|||||
Audio Gain |
0-255 Adjustable |
|||||
Bit-rate |
64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps |
|||||
Multiplexing |
Maximum PID Remapping |
256 input per channel |
||||
Function |
PID remapping ( automatically or manually) |
|||||
Accurate PCR adjusting |
||||||
Generate PSI/ SI table automatically |
||||||
Scrambling |
Maximum simulcrypt CA |
4 |
||||
Standard |
EN300 429/ITU-T J.83A/B |
|||||
Connection |
Local/remote connection |
|||||
Modulation |
DVB-C
|
QAM Channel: 16 non-adjacent carriers output (maximum bandwidth 192MHz) Standard: EN300 429/ITU-T J.83A/B MER: ≥40db RF frequency: 50~960MHz, 1KHz step RF output level: -20~+10dbm (87~117 dbµV), 0.1db step Symbol Rate: 5.0Msps~7.0Msps, 1ksps stepping Constellation: 16/32/64/128/256QAM |
||||
|
J.83A |
J.83B |
||||
Constellation |
16/32/64/128/256QAM |
64/256 QAM |
||||
Bandwidth |
8M |
6M |
||||
DVB-T |
Standard |
EN300744 |
||||
FFT mode |
2K,4K, 8K |
|||||
Bandwidth |
6M, 7M, 8M |
|||||
Constellation |
QPSK, 16QAM, 64QAM |
|||||
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
|||||
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
|||||
MER |
≥42 dB |
|||||
RF frequency |
50~960MHz, 1KHz step |
|||||
RF out |
8*RF COFDM DVB-T out (8 carriers combined output) |
|||||
RF output level |
-20~ +10 dBm (87~117 dbµV), 0.1db step |
|||||
Stream output |
RF output (F type interface) |
|||||
16 MPTS output over UDP and RTP/RTSP as mirror of 16 DVB-C carriers, 8 MPTS output over UDP and RTP/RTSP as mirror of 8 DVB-T carriers(Optional) 1*1000M Base-T Ethernet interface |
||||||
System function |
Network management (WEB) |
|||||
Chinese and English language |
||||||
Ethernet software upgrade |
||||||
Miscellaneous |
Dimension (W×L×H) |
482mm×440mm×44mm |
||||
Approx weight |
8kg |
|||||
Environment |
0~45°C(work); -20~80°C (Storage) |
|||||
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
|||||
Power consumption |
20W |
