16x16 HDMI Matrix Switch 4K with LAN, IR, RS232, Web GUI contol

H-16x16HDMI-4K-SW
Qty: 0
Price: $ 1,695.00
Availability: In stock Condition: new QR Code 16x16 HDMI Matrix Switch 4K with LAN, IR, RS232, Web GUI contol
Shipping: starting at $22.00 Warranty: 2Yrs
Quantity:
add to basket
ask about product
send request
Description Features Drawings Models Accessories Specification Support

Description

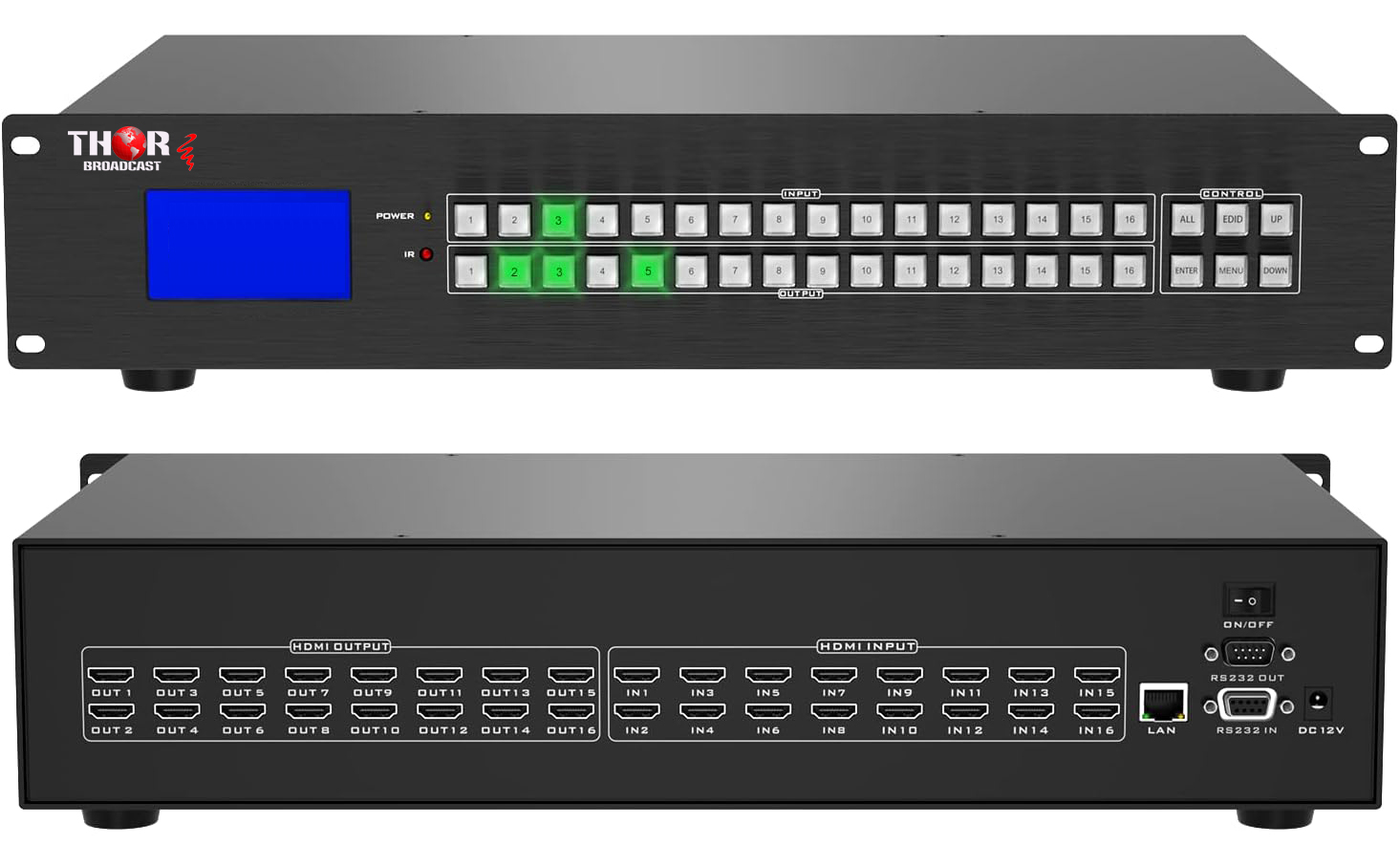

16 x16 HDMI Marix Switch -4K

The H-16x16HDMI-4K-SW is a high-performance 4K HDMI matrix switch that allows any of 16 HDMI input sources to be routed to any of 16 HDMI displays. With full 4K@60Hz 4:4:4 resolution support, it's ideal for professional AV systems that demand ultra-clear visuals and real-time switching.

This unit features multiple control options including front panel buttons, IR remote, RS232 serial command, LAN, and a full Web GUI for advanced control scenarios. Smart EDID management ensures compatibility with a wide range of displays and sources. Built for rack-mount installation, it's the perfect backbone for any large-scale AV setup.

Application Examples

  • Broadcast Master Control Rooms

  • Digital Signage for Airports & Retail Chains

  • University Lecture Halls & Training Centers

  • Live Event Control Booths

  • High-End Home Theater Systems

Features

Key Features

  • Ultra HD 4K@60Hz – True 4:4:4 chroma resolution support

  • 16x16 Routing Matrix – Each output can be independently assigned to any input

  • Multi-Control Options – RS232, IR, LAN, and Web GUI

  • Smart EDID Handling – Ensures seamless handshake between sources and displays

  • Instant Switching – Near zero latency switching

  • Rack Mountable – Includes rack ears for 1U installation

  • HDCP Compliant – Works with protected content sources

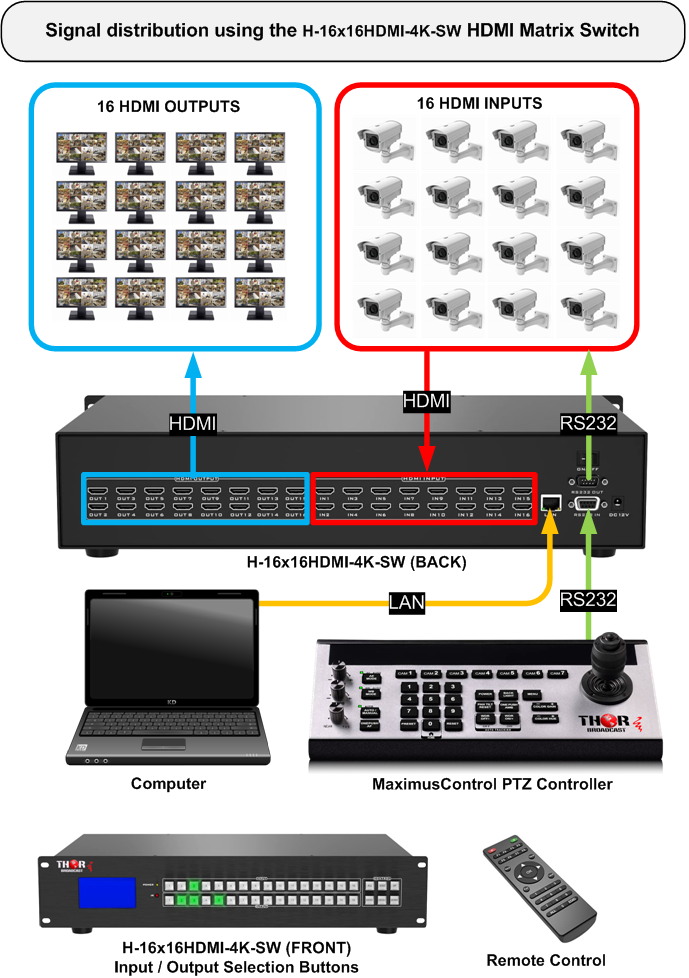

Drawings

Model Selection

H-16x16HDMI-4K-SW

Accessories & Upgrades

Specification

Thor Broadcast 16x16 HDMI Matrix Switch Specifications
Model H-16x16HDMI-4K-SW
Input Ports 16x HDMI (HDMI 2.0)
Output Ports 16x HDMI
Max Resolution 3840 x 2160 @ 60Hz (4:4:4)
Control Methods Front Panel, IR Remote, RS232, LAN, Web GUI
EDID Management Manual/Auto EDID Configurations
HDCP Support Yes
Power Supply AC 100~240V, 50/60Hz
Rack Mountable 1U Rackmount Kit Included
Dimensions 482mm x 250mm x 44mm
Included Accessories IR Remote, RS232 Cable, Rack Ears, Power Cable, User Manual
Similar products:

8 Input 8 Output HDMI Matrix Switcher 8 Input 8 Output HDMI Matrix Switcher

Thor Broadcast H-8x8HDMI-SW rack-mount or standalone 8x8 HDMI switcher with remote, multiple control options and easy to use GUI. Now you can use an HDMI matrix switcher to control up to 8 different HDMI sources going to 8 different HDMI screens. Simple setup and smart EDID management, HDCP 1.4 compliant, HDMI 1.3a version with resolutions up to 1080p 60hz

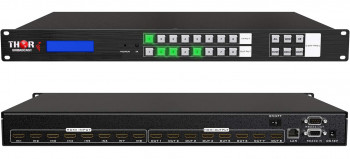

8x8 HDMI Matrix Switch 4K Rack Mount with Web GUI, RS232, IR, LAN Control 8x8 HDMI Matrix Switch 4K Rack Mount with Web GUI, RS232, IR, LAN Control
