| Availability: | In stock | Condition: | new |
|
| Shipping: | starting at $22.00 | Warranty: | 2Yrs |

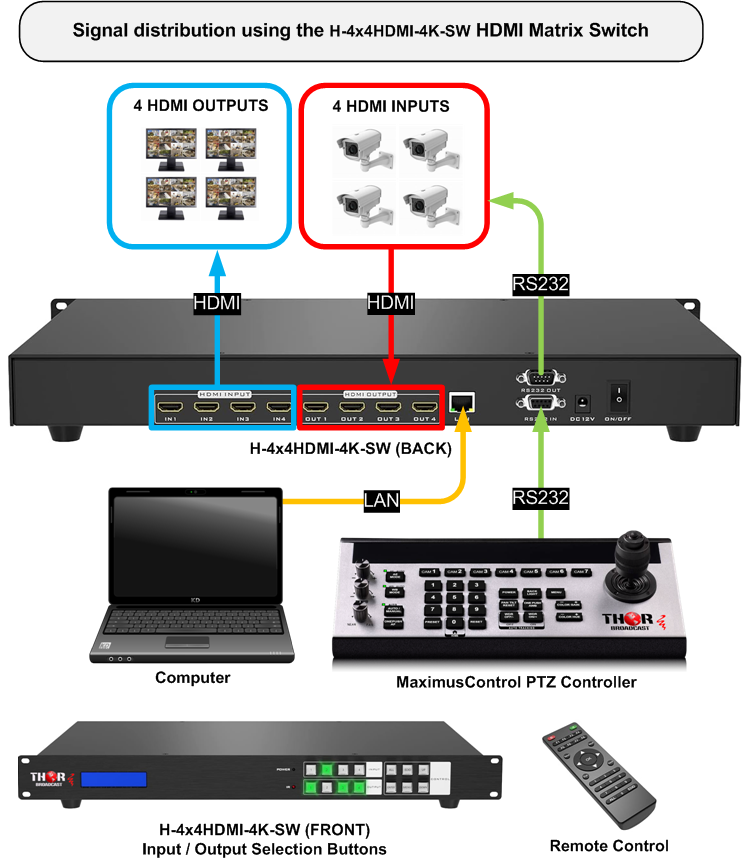

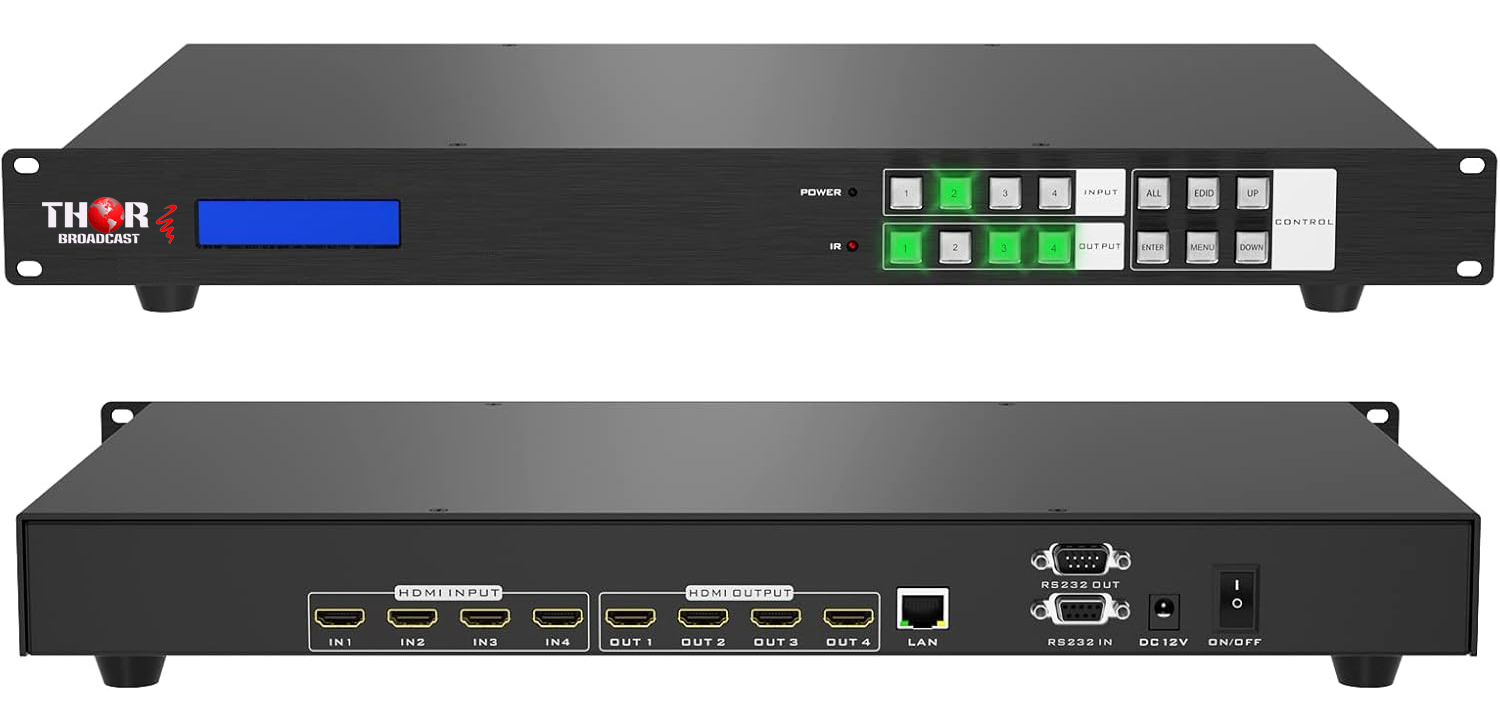

H-4x4HDMI-4K-SW is a compact, rack-mountable 4x4 HDMI matrix switch engineered for high-performance AV environments. It allows any of four HDMI sources to be independently routed to any of four displays—perfect for live production, digital signage, or control room setups.
With support for Ultra HD resolutions up to 4K@30Hz, this unit ensures stunning image clarity across all outputs. Users can manage switching via front panel buttons, IR remote, RS232 interface, or Web-based GUI—making it easy to control from virtually any platform. Built-in EDID management ensures optimal display
Conference Room AV Distribution
Digital Signage for Retail or Hospitality
Education & Lecture Capture Systems
Video Walls or Multi-Display Systems
Home Theater Integration with Central Control
4x4 Matrix Switching – Route any input to any output independently
4K Ultra HD Support – Up to 3840x2160 @30Hz resolution
Multiple Control Interfaces – IR, RS232, Web GUI, and front panel
EDID Management – Smart handshake with display devices
Stereo Audio Output – Extract audio via OUT4 (if available on your variant)
Rack-Mountable – Ideal for AV racks, studios, and equipment rooms
HDCP Compliant – Supports protected content from modern HDMI sources
H-4x4HDMI-4K-SW
| Thor Broadcast H-4x4HDMI-SW Specifications | |
|---|---|
| Model | H-4x4HDMI-SW-4K |
| Input Ports | 4x HDMI |
| Output Ports | 4x HDMI |
| Max Resolution | 3840 x 2160 @30Hz |
| Control Options | IR Remote, RS232, Web GUI, Front Panel |
| Audio Format Support | PCM, Dolby Digital, DTS |
| EDID Handling | Automatic / Manual EDID Config |
| Power Supply | DC 12V (included) |
| Rack Mount | 1U Rackmount Kit Included |
| Accessories | IR Remote, RS232 Cable, Rack Ears, Power Adapter, User Manual |

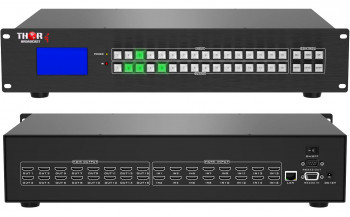

16x16 HDMI Matrix Switch 4K with LAN, IR, RS232, Web GUI contol
Thor Broadcast H-16x16HDMI-4K-SW is a professional 16x16 HDMI matrix switch that routes up to 16 HDMI sources to 16 UHD displays with 4K@60Hz resolution. Features include IR, RS232, LAN, and Web GUI control, plus EDID management and rack mount design.
8 Input 8 Output HDMI Matrix Switcher
Thor Broadcast H-8x8HDMI-SW rack-mount or standalone 8x8 HDMI switcher with remote, multiple control options and easy to use GUI. Now you can use an HDMI matrix switcher to control up to 8 different HDMI sources going to 8 different HDMI screens. Simple setup and smart EDID management, HDCP 1.4 compliant, HDMI 1.3a version with resolutions up to 1080p 60hz
