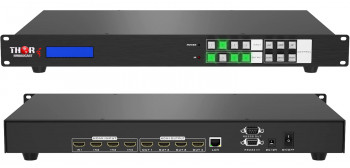

The Thor Broadcast H-8x8HDMI-SW is an easy to use video accessory that allows any HDMI source to go into a matrix with outputs going out to 8 different HDMI enabled screens. These units are HDMI and HDCP compliant meaning they can be used with any HDMI source including a set top box, gaming system, PC, Blu Ray etc.
Using various controls the HDMI Matrix switch is a breeze to setup; comes stock with RS232 control, an IR remote, web GUI with login, smart EDID managmenet, and front panel buttons to quickly access the HDMI input to the HDMI output of your choice. Every input and output is capable of resolutions up to 1080p60hz and the unit itself can be installed in a 19inch rackmount shelf or simply placed on a table top. Quick and efficient, this matrix switcher will allow you create a multi viewing HDMI environment for any scenario such as bars, restaurants, conferences, security, government, hospitals, education, sports, and courts.
Supports video resolutions up to 1080p@60Hz.
Compliant with the HDMI 1080P60 and HDCP 1.4 specifications
Smart EDID management to match the connected displays
Front panel buttons , internet web GUI, and RS232 control
Includes IR remote control
Rackmount or Table Top installation
H-8x8HDMI-SW
| Input | 8 HDMI |
| Input connector | 8 female type A HDMI |
| Video Output | |
| Output | 8 HDMI |
| Output connector | 8 female type A HDMI |
| Control | |
| Control | Firmware, TCP/IP, RS232 |
| Control Connector | Micro-USB, RJ45, Female DB9 |
| Video General | |
| Video Resolution | Up to 1080p@60Hz 4:4:4 8bit |
| HDMI Version | 1.3a |
| HDCP Version | 1.4 |
| HDMI Input Cable | ≤ 15 meters |
| HDMI Output Cable | ≤ 15 meters |
| Bandwidth | 5.6Gbps |
| General | |
| Control Options | Front Panel, IR Remote, web GUI, RS232 |
| Power Supply | Input:100V~240V AC; Output: 24V DC 1.25A |
| Power Consumption | 13.5 watts (Max) |
| Operation Temperature | -5~ +55°C |
| Storage Temperature | -25 ~ +70°C |
| Relative Humidity | 10%-90% |
| Dimension (W*H*D) | 410mm x28mm x 160mm |
| Net Weight | 1.6KG |
