Its key advantages include long-distance reach, strong anti-interference, and signal stability, making it ideal for broadcast, medical, military, and surveillance use. Features include jitter reduction, cable equalization, and pathological signal support ensure reliable performance in complex environments.

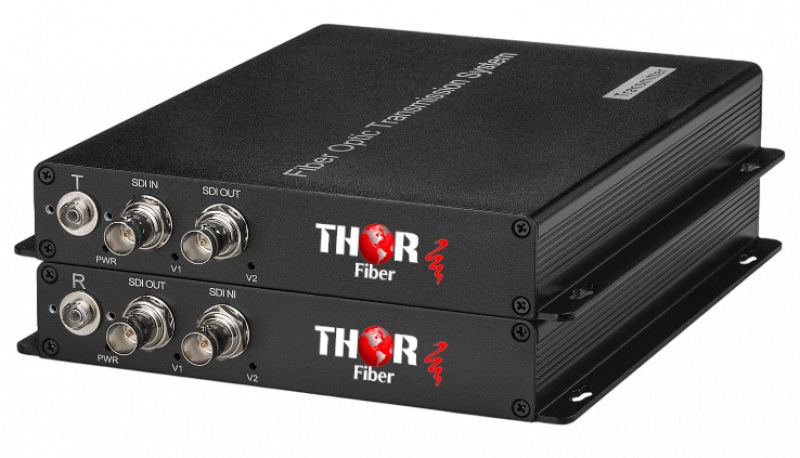

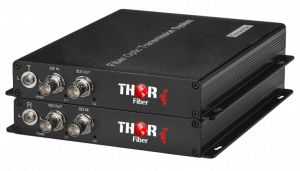

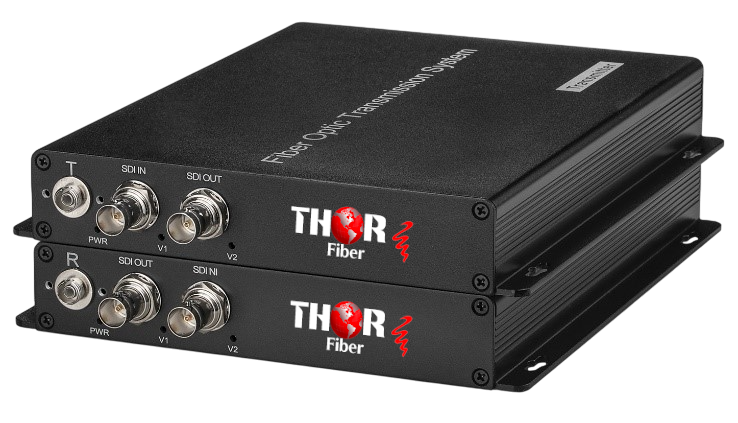

Built for flexibility and durability, the device uses a modular design with ST/PC fiber connectors and industrial-grade components. With a rugged aluminum housing, wide temperature tolerance, and safety protections, it delivers consistent performance in demanding conditions.
Supported SDI Standard List
Standard |
Name |
Bit rate |
Video format example |
SMPTE 259M |
SD-SDI |
270 Mbit/s, 360 Mbit/s, 143 Mbit/s, and 177 Mbit/s |
480i, 576i |
MPTE 344M |
ED-SDI |
540 Mbit/s |
480p, 576p |
SMPTE 292M |
HD-SDI |
1.485 Gbit/s, and 1.485/1.001 Gbit/s |
720p, 1080i |
SMPTE 372M |
Dual Link HD-SDI |
2.970 Gbit/s, and 2.970/1.001 Gbit/s |
1080p |
SMPTE 424M |
3G-SDI |
2.970 Gbit/s, and 2.970/1.001 Gbit/s |
1080 |
Summary:
The F-SDI-3G-B-TX/RX stands out from competitors primarily due to its true broadcast-grade quality and use of pure hardware architecture. While many similar converters on the market rely on software-based processing, which can introduce latency or compatibility issues, this unit offers zero-compression, zero-delay transmission with superior signal integrity. Its full compliance with SMPTE standards (including 424M for 3G-SDI) ensures that it works seamlessly with professional video equipment, and its ability to handle pathological test patterns gives it an edge in environments where signal reliability is non-negotiable.

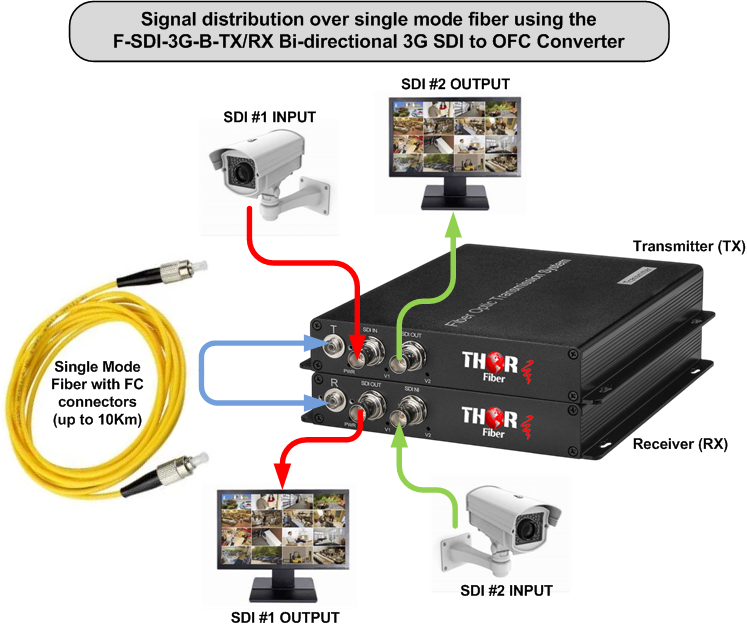

Another key advantage is its longer transmission range and versatility. Many competing SDI-to-fiber converters are limited to shorter distances or require dual fibers for bidirectional communication. The F-SDI-3G-B-TX/RX supports bidirectional video over a single fiber up to 20 kilometers without repeaters, reducing installation complexity and cost. It also supports CWDM (Coarse Wavelength Division Multiplexing), allowing for scalable multi-channel setups—something not typically available in entry-level or mid-range devices.
Additionally, its rugged industrial design and modular flexibility provide significant operational benefits over competing products. Combined with robust safety features, extreme temperature tolerance, and plug-and-play ease of use, the F-SDI-3G-B-TX/RX delivers a professional-grade solution that goes well beyond the capabilities of typical SDI fiber converters.
F-SDI-3G-B-TX/RX – Bi-Directional 3G-SDI over one fiber – 20 km
F-SDI-3G-B-TX/RX-40 – Bi-Directional 3G-SDI over one fiber – 40 km
F-SDI-3G-B-TX/RX-80 – Bi-Directional 3G-SDI over one fiber – 80 km
Fiberparameter |
||
Wavelength |
1310nm-1470nm |
|
Rate |
3G bps |
|
Transmitter power |
>-6db |
|
Receiver sensitivity |
>-14db |
|
Fiber type |
Single mode, single fiber |
|
Distance |
20km |
|
Fiber connector |
ST/PC |
|
Videoparameter |
||
Signal type |
DVB –ASI, SD-SDI, HD-SDI, 3G-SDI |
|
Work standards |
DVB-ASI , SMPTE259M-C , SMPTE292M , SMPTE424M |
|
Bit rates |
270 Mbps, 1.485Gbps, 2.97Gbps |
|
Video input/output |
||
Signal type |
1channel DVB-ASI, SD-SDI, HD-SDI, 3G-SDI digital video |
|
Input impedance |
75 Ohm |
|
Clock recovery |
When 270 Mbps, 1.485 Gbps, and 2.97Gbps are automatic, the others are bypassed |
|
Input level |
800mVp-p±10% |
|
Enter the echo loss |
>10dB @ 2.97 Gbps |
|
Output DC offset |
<±0.5V |
|
Output echo loss |
>10dB @ 2.97 Gbps |
|
The biggest shake |
<0.1UI(1485Mbps) |
|
Signal overshoot |
<5% (1485Mbps) |
|
Equipment information |
||
Product size |
192*167*28mm / 7.56 × 6.57 × 1.10 inches |
|
Product net weight (pair) |
0.45KG |
|
Product weight (including the outer packaging) |
2.5KG |
|
Packing size |
345*210*90mm /13.58 × 8.27 × 3.54 inches |
|
Input voltage |
100VAC ~ 242VAC,50-60Hz |
|
Power supply |
DC 5V |
|
Power dissipation |
<1.5W |
|
Other parameter |
||
Operating temperature-20°C ~75°C |
||
Storage temperature |
-40°C ~85°C |
|
Relative humidity |
From 5 to 95% (non-condensing) |
|
MTBF (Mean Time Between Failures) |
> 100,000 hours |
