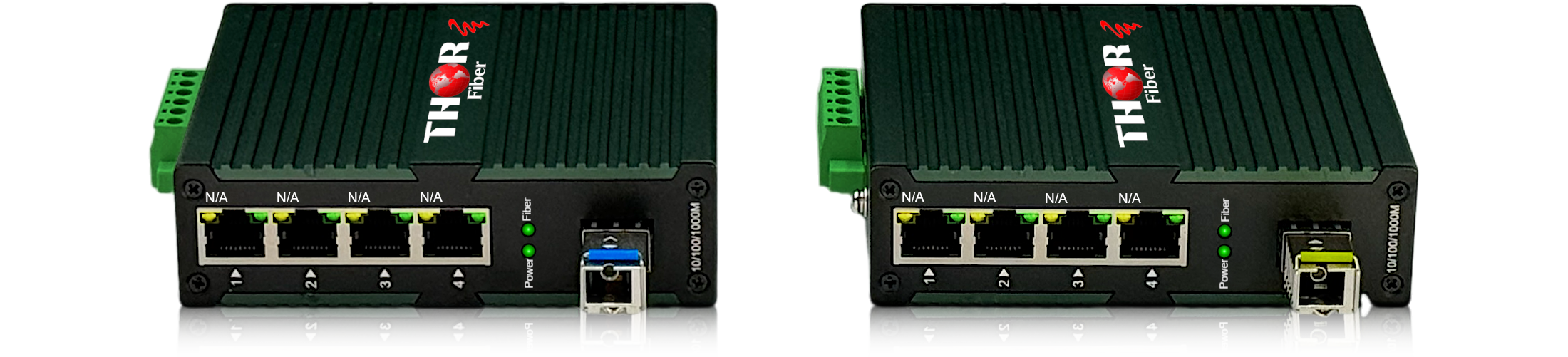

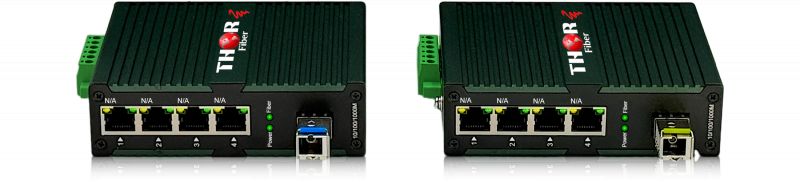

4-Port Gigabit Ethernet over Single Fiber Transceiver
Thor Fiber’s 4-Port Gigabit Ethernet Transceiver transmits five 10/100/1000 Mbps Ethernet channels over a single-mode fiber using WDM technology—one strand, full-duplex.

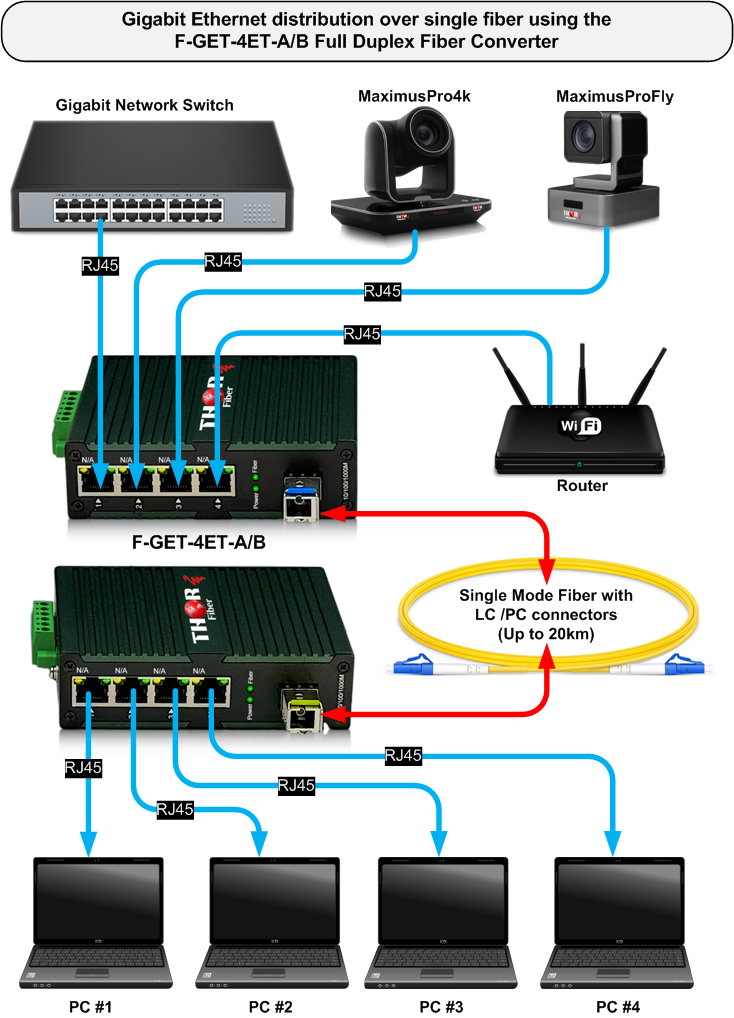

It allows you to connect multiple Ethernet devices on each end, such as IP cameras, PCs, network switches, Wi-Fi routers, and IP encoders—supporting up to 4 devices per side, making connectivity simple and efficient.
The unit functions as a transparent, unmanaged switch with plug-and-play operation—no configuration required. It uses LC/PC connectors and supports transmission distances up to 20km.
A complete link requires a matched A/B pair (Side A transmits at 1310nm, Side B at 1550nm).
Ideal for industrial, remote monitoring, and transportation applications.
Point-to-point bi-directional transmission over a single (simplex) fiber
Zero-delay automatic forwarding
Auto Speed negotiation
Full Duplex
Transmits 4 ports of 10/100/1000 Mbps Gigabit Ethernet (10BASE-T / 100BASE-TX / 1000BASE-T)
4 x RJ45 connectors (auto-negotiated, unmanaged switch)
Supports single-mode, single-fiber via LC connectors (simplex)
Transmission distance: 20km standard (40km, 80km, or 120km available depending on model)
Hot-pluggable modules
Available in chassis mount, wall-mount, or DIN-rail configurations
1500W surge protection and 15kV ESD protection
External power supply
Wide operating temperature range: -40°C to +70°C
Input voltage: 9 ~ 48VDC
Reverse polarity protection
Compact form factor
Electromagnetic interference (EMI) is common in industrial plants, warehouses, and factory floors. It can corrupt data over copper-based Ethernet links. In contrast, fiber optic transmission is completely immune to EMI, RFI, and ground loop issues ensuring clean, reliable data communication.
By using fiber, you eliminate problems caused by voltage equalization currents and electromagnetic noise, enabling more stable and reliable network performance, especially in electrically noisy environments.
Model: F-GET-4ET-A/B (A/B Link Pair)
Distance: 20Km over Single-Mode Fiber (LC/PC Connector)
A complete point-to-point solution for transmitting Gigabit Ethernet over a single strand of fiber. Ideal for industrial, security, and long-distance IP networking applications.
Each system requires both A and B units (sold as a matched pair).
Model Breakdown:
F-GET-4ET-A
4 x 10/100/1000 Mbps Ethernet ports over 1 simplex fiber
LC/PC connector – Single-Mode Fiber
TX: 1310nm / RX: 1550nm
Distance: 20Km
F-GET-4ET-B
4 x 10/100/1000 Mbps Ethernet ports over 1 simplex fiber
LC/PC connector – Single-Mode Fiber
TX: 1550nm / RX: 1310nm
Distance: 20Km
Category | Specification |
---|---|
Ethernet Ports | 4 x RJ45 ports (G1–G4) – 10/100/1000 Mbps Auto-Negotiated |
Standards Supported | IEEE 802.3 – Ethernet base standard IEEE 802.3u – 100BASE-TX IEEE 802.3ab – 1000BASE-T IEEE 802.3x – Full Duplex & Flow Control IEEE 802.3az – Energy Efficient Ethernet (optional) |
Auto-Negotiation | Supports auto detection of 10/100/1000 Mbps speeds and full/half duplex modes |
Transport/Application Protocols | Pass-through support for: TCP, UDP, HTTP/HTTPS, FTP/TFTP/SFTP, DHCP, BOOTP, SNMP, NTP, DNS, Modbus TCP, BACnet/IP |
Optical Interface | LC/PC Connector – Single Fiber (Simplex) |
Transmission Distance | 20Km standard (40, 80, 120Km available per model variant) |
Fiber Type | Single-mode, simplex (dual-fiber SFP version available upon request) |
LED Indicators | PWR, Link/Activity LEDs for each port |
Interface Protection | 1500W Surge Protection, 15KV ESD Protection |
Operating Temperature | -30°C to +75°C |
Humidity | 0–95% RH (non-condensing) |
RoHS Compliant | Yes |
Power Supply | 5V DC Input (external power supply included) |
Power Consumption | ≤ 2.68W |
AC Power Range (optional) | 85 ~ 220V AC input version available upon request |
Dimensions | 4” x 5” x 1.25” |
Transport of E1 or T1 carrier signals over fiber is possible with these units. Transport distances of up to 150 Km is possible with custom optics.

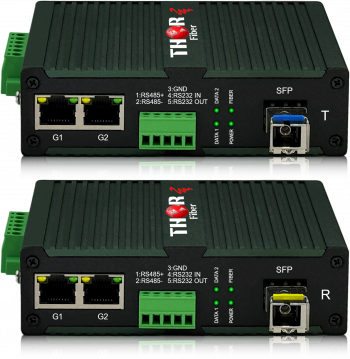

2 x Gigabit Ethernet Ports + 1x RS-232 + RS-485 Over a Single Fiber This full-duplex fiber converter transmits two Gigabit Ethernet channels, one RS-232, and one RS-485 signal over a single optical fiber. It provides a cost-effective solution for extending both Ethernet and serial asynchronous data connections over long distances. Ideal for applications requiring reliable serial control and high-speed network connectivity in industrial, transportation, or remote monitoring environments.
