Name: IRD - Satellite or ATSC Decoder to SDI, IP, ASI, Closed Captions - Satellite DVBS/S2 RF Input
Brand: Thorbroadcast
Price: 1995 USD
Availability: InStock

Description

Universal Broadcast IRD Decoder

Thor H-HD-IRD series Integrated Receiver Decoders have several applications for decoding program content to broadcast quality video. Equipped with every major video signal output, including HD-SDI, Thor H-HD-IRD units can provide HD video to any display or professional video system. Also available are modern digital audio outputs on both optical Toslink and XLR connectors. Dolby AC/3 audio pass through is standard, and closed caption support for both 608 and 708 captioning systems is present. The V3 platform adds a front panel LCD video display for confidence monitoring, as well as an internal program multiplexer for combining content from both ASI and IP sources simultaneously. The web interface displays all available programs and corresponding PID's. Each program can be independently added to either the ASI or IP outputs.

All selected programs are multiplexed into a single MPTS output. Additionally, the IP output can be configured for up to 32 SPTS single program stream outputs, each with different address and port settings. This allows the V3 system to be used as an intelligent ASI to IP or RF to IP Gateway with add drop and ASI video signal multiplexing capabilities. Combined multi program transport streams carried over IP can also be separated into their corresponding single program streams. The RF tuner can be configured for QAM, 8VSB (ATSC), DVB-T, DVB-C, or DVB-S2 signal sources. Two CAS card slots allow decoded of encrypted programing.

Thor HD-IRD units can be used for converting broadband programing to uncompressed HD video, as well as multiplexing and retransmitting programs to both ASI and IP outputs. Thor HD-IRD systems are a reliable and versatile platform for broadcast program decoding and TS protocol conversion:

There are simplify capabilities of this IRD:

Inputs:

It can take in different types of signals:
- ATSC RF:
- DVB-S/S2 RF
- QAM RF:.
- IP UDP Multicast / Unicast:
- DVB-ASI:

Outputs:

It can send out signals in various ways:
- ASI: For distributing MPEG transport streams.
- IP: Sending content over computer networks.
- Decoder Video: It can provide video in different formats such as SDI, HDMI, YPbPr (component video), and CVBS (composite video).

Applications and Conversions:

Decode (SATT DVB-S/S2 RF ) to SDI, HDMI, CVBS, YPbPr Video and Audio
Decode (Tersial ATSC RF ) to SDI, HDMI, CVBS, YPbPr Video and Audio
Decode (CABLE TV QAM RFor ISDB-T) to SDI, HDMI, CVBS, YPbPr Video and Audio
Sattelite DVB-S/S2 RF to IP - UDP
Off Air ATSC RF to IP
Cable QAM RF to IP

Sattelite DVB-S/S2 RF to DVB-ASI
Off Air ATSC RF to DVB-ASI
Cable QAM RF to DVB-ASI

IP-ASI It can change IP input streams into two ASI streams.
ASI-IP It can convert ASI input as IP output .

You can merge two ASI streams into one.
It supports IP streaming with one MPTS and eight SPTS streams over UDP and RTP/RTSP, with ASI output.
IP to VIDEO/AUDIO - It can convert IP streams to video formats like SDI, HDMI, CVBS, and YPbPr.
ASI to VIDEO/AUDIO ASI streams can be converted to video formats too, like SDI, HDMI, CVBS, and YPbPr.

In simple terms, this IRD is like a translator for different types of TV signals. It can take in signals from antennas, satellites, cables, the internet, and other sources, and then it can change them into different types of signals or video formats, so you can watch them on your TV or send them over the internet.

Tags: ASI Decoder ASI to IP ASI to SDI Coax Multiplexer DVBS to SDI

Features

RF / IPTV / ASI INPUT - All Audio-Video Outputs incl. HDSDI, HDMI, CVBS, Suppoty SD and HD formats up to 1080p/60
Tuner available as OFF AIR ATSC, QAM CABLE, ISDBT, DVBT, DVBC, DMBT - Any standard
10/100 Etherent for IPTV multicast or unicast TS MPEG2/4 Input
H.264 and MPEG-2 Hardware Decoding to HD-SDI, HDMI, YPbPr, and CVBS Outputs
Combine programs from both ASI and IP inputs to multiplexed ASI and IP Outputs
ASI input for Remultiplexer option to create a new MUX out as well 48x ip streaming spts out for routing and distribution
Cam slot for tv programing description
Front panel video monitor for confidence monitoring and troubleshooting
Separate multiplexed program transport streams to SPTS IP outputs 32 Max
Web server interface for secure browser management and full front panel interface
Supports Closed Caption 608 and 708 systems, supports Dolby AC/3 Pass Through

Drawings

Video

Quick configuration Guide for H-IRD-V3-ATSC. IRD - Satellite or ATSC Decoder to SDI, IP, ASI, CC

High end state of the art decoder with RF tuner, advanced IP streaming, front LCD confidence monitor, and supports 608 and 708 closed captioning. RF tuners for DVB-S2, ATSC, and QAM are available. All settings and alarm information are available through web browser based network management console. Universal Broadcast IRD Decoder Thor H-HD-IRD series Integrated Receiver Decoders have several applications for decoding program content to broadcast quality video. Equipped with every major video signal output, including HD-SDI, Thor H-HD-IRD units can provide HD video to any display or professional video system. Also available are modern digital audio outputs on both optical Toslink and XLR connectors. Dolby AC/3 audio pass through is standard, and closed caption support for both 608 and 708 captioning systems is present. The V3 platform adds a front panel LCD video display for confidence monitoring, as well as an internal program multiplexer for combining content from both ASI and IP sources simultaneously. The web interface displays all available programs and corresponding PID's. Each program can be independently added to either the ASI or IP outputs. All selected programs are multiplexed into a single MPTS output. Additionally, the IP output can be configured for up to 32 SPTS single program stream outputs, each with different address and port settings. This allows the V3 system to be used as an intelligent ASI to IP or RF to IP Gateway with add drop and ASI video signal multiplexing capabilities. Combined multi program transport streams carried over IP can also be separated into their corresponding single program streams. The RF tuner can be configured for QAM, 8VSB (ATSC), DVB-T, DVB-C, or DVB-S2 signal sources. Two CAS card slots allow decoded of encrypted programing. Thor HD-IRD units can be used for converting broadband programing to uncompressed HD video, as well as multiplexing and retransmitting programs to both ASI and IP outputs. Thor HD-IRD systems are a reliable and versatile platform for broadcast program decoding and TS protocol conversion: There are simplify capabilities of this IRD: Inputs: It can take in different types of signals: ATSC RF: DVB-S/S2 RF QAM RF:. IP UDP Multicast / Unicast: DVB-ASI: Outputs: It can send out signals in various ways: ASI: For distributing MPEG transport streams. IP: Sending content over computer networks. Decoder Video: It can provide video in different formats such as SDI, HDMI, YPbPr (component video), and CVBS (composite video). Applications and Conversions: Decode (SATT DVB-S/S2 RF ) to SDI, HDMI, CVBS, YPbPr Video and Audio Decode (Tersial ATSC RF ) to SDI, HDMI, CVBS, YPbPr Video and Audio Decode (CABLE TV QAM RFor ISDB-T) to SDI, HDMI, CVBS, YPbPr Video and Audio Sattelite DVB-S/S2 RF to IP - UDP Off Air ATSC RF to IP Cable QAM RF to IP Sattelite DVB-S/S2 RF to DVB-ASI Off Air ATSC RF to DVB-ASI Cable QAM RF to DVB-ASI IP-ASI It can change IP input streams into two ASI streams. ASI-IP It can convert ASI input as IP output . You can merge two ASI streams into one. It supports IP streaming with one MPTS and eight SPTS streams over UDP and RTP/RTSP, with ASI output. IP to VIDEO/AUDIO - It can convert IP streams to video formats like SDI, HDMI, CVBS, and YPbPr. ASI to VIDEO/AUDIO ASI streams can be converted to video formats too, like SDI, HDMI, CVBS, and YPbPr. In simple terms, this IRD is like a translator for different types of TV signals. It can take in signals from antennas, satellites, cables, the internet, and other sources, and then it can change them into different types of signals or video formats, so you can watch them on your TV or send them over the internet. RF / IPTV / ASI INPUT - All Audio-Video Outputs incl. HDSDI, HDMI, CVBS, Suppoty SD and HD formats up to 1080p/60 Tuner available as OFF AIR ATSC, QAM CABLE, ISDBT, DVBT, DVBC, DMBT - Any standard 10/100 Etherent for IPTV multicast or unicast TS MPEG2/4 Input H.264 and MPEG-2 Hardware Decoding to HD-SDI, HDMI, YPbPr, and CVBS Outputs Combine programs from both ASI and IP inputs to multiplexed ASI and IP Outputs ASI input for Remultiplexer option to create a new MUX out as well 48x ip streaming spts out for routing and distribution Cam slot for tv programing description Front panel video monitor for confidence monitoring and troubleshooting Separate multiplexed program transport streams to SPTS IP outputs 32 Max Web server interface for secure browser management and full front panel interface Supports Closed Caption 608 and 708 systems, supports Dolby AC/3 Pass Through

Model Selection

H-IRD-V3s - Broadcast RF (Satellite DVB-S/S2) Decoder with SDI, ASI, IPTV Output

H-IRD-V3-ATSC - Broadcast RF ATSC Off Air Decoder with SDI, ASI, IPTV Output

H-IRD-V3-QAM - Broadcast RF QAM Decoder with SDI, ASI, IPTV Output

H-IRD-V3-DVBT - Broadcast RF DVB-T Decoder with SDI, ASI, IPTV Output

H-IRD-V3-ISDBT - Broadcast RF ISDB-T Decoder with SDI, ASI, IPTV Output

2 Tuners models:

H-IRD-V3s-2 - Broadcast 2x Tuners RF (Satellite DVB-S/S2) Decoder with SDI, ASI, IPTV Output

H-IRD-V3-ATSC-2 - Broadcast 2x Tuners RF ATSC Off Air Decoder with SDI, ASI, IPTV Output

H-IRD-V3-QAM-2 - Broadcast 2x Tuners RF QAM Decoder with SDI, ASI, IPTV Output

H-IRD-V3-DVBT-2 - Broadcast 2x Tuners RF RF DVB-T Decoder with SDI, ASI, IPTV Output

H-IRD-V3-ISDBT-2 - Broadcast RF ISDB-T Decoder with SDI, ASI, IPTV Output

Specification

*All Specifications Subject to Change Without Notice
Input	RF Tuner - DVB-S/S2. ATSC Off Air, Cable QAM, DVB-T, ISDB-T (model dependent) DVB-ASI Network IP
Supported Output Resolutions	HD-SDI 1080i, 720p, 720i, 576i, 480i HDMI 1080i, 720p, 720i YPbPr 1080i, 720p, 720i CVBS 576i, 480i
Video Codecs	H.264 - MPEG-2
Audio Codecs	MPEG1 Layer 2, MPEG2 Layer 2 Dolby AC/3, HD-AAC V2, LC-AAC
ASI Input	1x BNC 188/204 format up to 200 Mbps
IP Input	1x RJ-45 10/100 UDP or RTP up to 85 Mbps
RF Input	1x Type-F ATSC-T: 54-860 MHz 6M Bandwidth QAM: 47-860 MHz QAM16, 32, 64, 128, 256 DVB-S: 950-2150 MHz Symbol Rate 2-45 MBaud DVB-S2: 950-2150 MHz QPSK 1-45 MBaud DVB-T: 145-870 MHz 6, 7, 8 M Bandwidth DVB-C: 45-870 MHz QAM16, 32, 64, 128, 256 ISDB-T: 153-858 MHz 6, 7, 8 M Bandwidth

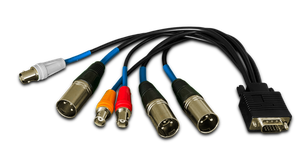

Audio Output	2x BNC - Analog Unbalanced 2x XLR - Digital AES/EBU 1x Toslink - Digital Optical
IP Transport Stream Output	1x MPTS UDP or RTP 1-32x SPTS UDP or RTP
ASI Transport Stream Output	2x ASI Multiplexed Output 2x ASI Tuner Pass Through
Management Interface	Web Based Browser Interface Full Front Panel LCD Interface Front Panel LCD Video Monitor
Dimensions	20 x 18 x 1~1/2 Inches
Weight	7 lbs
Operating Temperature	28º ~110º F

Question and Answers

Question:

I would like to take 2 x HDSDI signals from a remote location flip to IP send over AT&T Internet and Decode the 2 x HDSDI signals at our location to feed our Router

Answer:

We have 2 ways to do it.

First H-NVS3500 is a SDI RTSP encoder/decoder, design to reliable send SDI over the public internet, doesn't requires big bandwidth to do it, just about 3Mbps

You would need to use 4pcs to do 2 Videos; 2 as encoders, 2 as a decoders

https://thorbroadcast.com/product/3g-sdi-hdmi-1080p50-60-streaming-video-server-encoder-client-8230.html

Or the secound option:

1pcs 2 x SDI encoder H-2SDI-QAM-IPLL 2 SDI input IP streams output

https://thorbroadcast.com/product/1-4-sdi-to-qam-modulators-and-iptv-streaming-encoders.html/5

2pcs IRD decoder H-IRD-V3s IP input SDI output

https://thorbroadcast.com/product/ird-satellite-or-atsc-decoder-to-sdi-ip-asi-8230.html/75

Question:

Hello, I m searching for DVB-S2 receiver with SDI output for our client , the CI slot needed. Can you suggest and offer, please? I found https://thorbroadcast.com/t/dvbs-to-sdi and I d like to ask you to send me your best price for the product as many alternatives as you can offer.

Answer:

The only way we can do DVBS-S2 to SDI would be using the H-IRD-V3s IRD decoder.

This is a multifunction device with a lot of different futures, one of them is DVBS-S2 to SDI /HDMI / CVBS video output.

It does have CI slot for the CI card, Common Interface (also called DVB-CI) is a technology which allows decryption of pay TV channels.

The Common Interface allows TV manufacturers to support many different pay TV stations, by allowing to plug in exchangeable conditional-access modules (CAM) for various encryption schemes. Smart cards and encryption BISS Cisco Videoscape VideoGuard Conax Irdeto Cryptoworks Digicipher HDCP KeyFly Nagravision PowerVu RAS SECA Mediaguard Verimatrix Viaccess

Question:

I have been on tech support with Thor and Axis (Camera Manufacturer) today. The camera is now set up to send a multicast stream and we can see the camera in the multicast group on the network. I don't know how to make the IRD device join the multicast group. The following link is from Axis for this case. They asked that you upload your stream requirements to the case and see if we can make the two devices talk to one another. It probably is a good idea for me to get out of the middle at this point. Would you be so kind as to give them the requirements including what has to be used as the address so that we can make this work for the customer?

Answer:

Please check the attached screenshot for the place where you need to put multicast information into our IRD :

Question:

Would like to ask if you have an encoder/decoder to satisfy the attached SLD

Answer:

We do have a solution for integrated Video encoder and satellite DVB-S/2 modulator

please check these links:

SDI or HDMI Encoder / DVBS-s 2 modulator, that will be installed in your Transmitting Site

https://thorbroadcast.com/product/sdi-to-dvb-s-s2-satellite-modulator.html

On the Receiving side, you can use Sat IRD to receive and decode sat signal to HDMI or SDI

H-IRD-V3S

Please see those links and specifications and let me know if that would work for you

You can use 1 IRD, but you would be able to get video from one or the other encoder or you could use 2 IRD's to receive both feeds at the same time

Question:

Wondering if the ATSC RF input to ASI decoder will allow ALL services from a single 8VSB source to pass on the ASI-TS output. Such as in the case of a translator site with ALL subchannels available in the ASI-TS output.

Answer:

Yes, that is correct. The 8VSB will take the entire frequency and all data within it and output to the ASI.

So if you have any subchannels, data like closed captions etc, everything will be passed onto the ASI TS.

Question:

I wonder if H-IRD-V3 can fit these requirements:

IRD input MPEG4, DVB-S2 satellite.

Which contains a TS with a video with two embedded audios (one in AC3 and the other in MPEG1).

That it can receive the same signal through a TS via IP.

It demodulates and delivers the second audio program into balanced analog audio outputs (it is the signal sent by the radio transmitter). That transcodes the video signal with its associated audio (which arrives in AC3) to MPEG2 to generate a TS with the necessary bitrate for the ATSC signal (19.39 Mbps).

That the processed signal is delivered through two ASI outputs. Basically this is the processing that they require from the IRD to deliver the signal to the MUX (where the ATSC and PSIP tables are inserted) and from there to the TDT transmitters.

Answer:

The IRD works as a Gateway, which means that if the Satellite RF signal carries MPEG4 and MPEG1 or AC3 audio, you will have exactly the same TS on the IP or ASI output with all encoded audios. We cannot transcode it to MPEG2. Basically, whatever goes in will go out.

If the Sat channel has multiple TS's, we can modify it in the MUX setting, but please note that we cannot modify the TS bitrate. Whatever TS is encoded, it will stay the same.

At the same time, we can decode the video and audio to SDI/HDMI/CVBS and Analog Audio. We can only decode 1 stereo audio of your choice. So, even if the TS has, let's say, 1 Spanish + 2 English audio tracks, we can decode one of them.

Since you need MPEG2 video, the easiest way would be to decode that signal to SDI and then re-encode it using an MPEG2/AC3 encoder.

like this one :

https://thorbroadcast.com/product/1-ch-sdi-or-hdmi-hd-encoder-mpeg2-h264.html/120

https://thorbroadcast.com/product/all-inputs-iptv-streaming-and-asi-hd-encoder-608-708-captioning-8230.html

Question:

I have a client that currently 30 tuners that are 8 years old or so, and they are looking potentially to repalce them as they currently are having issues with their current tuners. I was looking at this product and it seems like a good fit for replacement. It seems like this unit will produce 2 streams, either IP, HS-SDI, or ASI. Is that correct?

Answer:

We have one ATSC tuner IRD – H-IRD-V3-ATSC or a two-ATSC tuner IRD H-IRD-V3-ATSC-2 available.

The H-IRD-V3-2 is a 2-channel ATSC tuner capable of generating multiple IP/ASI TS streams, which are modulated on two ATSC carriers.

For example, if a channel contains subchannels like 2.1, 2.2, 2.3, and 3.1, 3.2, 3.3, we can output all six of them as UDP multicast or unicast IP streams simultaneously, as well as through muxed MPTS ASI output.

However, the unit can decode SDI/HDMI video/audio for only one program at a time (e.g., 2.1 or 2.2), but not both simultaneously, as it has only one SDI/HDMI video output.

Please let me know how the customer is using their existing tuners. Do they output video as IP, ASI, SDI, or all of them at once? I can then recommend the best solution.

Question:

We had another question about these IRD-Decoders. Can any of these units take in both RF and ASI, and output as SDI/HDMI? The idea is to have 2 separate inputs, but to switch between which input to monitor via the output.

I’m also trying to figure out which unit option takes ASI in and can output SDI/HDMI.

Answer:

Thor Broadcast

12:25?PM (7 minutes ago)

to Cory

Yes, the device can accept RF, ASI, and IP (UDP/RTP) inputs. The unit will display all the TS (transport streams) from these inputs, and you can select any of those TS streams to decode to SDI/HDMI (the same video will be displayed on both).

So, the answer is yes, you can, but only one TS can be decoded at a time. It can be selected from RF, ASI, or IP inputs.

Basically, you can use the same unit or the second unit and use it for ASI to SDI converter, but not at the same time as an RF to SDI

Please let me know if this is clear.

Documents

h-ird-v3-2023-model-user-manual.pdf

h-ird-v3-s2-user-s-manual.pdf

h-hd-ird-v3-atsc-user-s-manual.pdf

atsc-off-air-us-television-channels-center-frequency-mhz-chart-for-atsc-tuner.pdf

h-ird-v3-2023-.pdf

quick-configuration-guide-h-ird-v3-atsc-2023.pdf

H-IRD-V3-ATSC - QUICK SETUP

H-IRD-V3-ATSC-2 - QUICK SETUP

H-IRD-V3-QAM - QUICK SETUP

H-IRD-V3S2 - QUICK SETUP

H-IRD-V3S - QUICK SETUP
