SMPTE ST 2110 IP to SDI / DVP Video Converter / Receiver

Thor H-ST2110-TXRX Bidirectional 3G-SDI to SMPTE ST 2110 Converter with HDMI Output

The Thor H-ST2110-TXRX is a professional bidirectional 3G-SDI to SMPTE ST 2110 video over IP converter designed for low-latency, uncompressed video transport over 10G Ethernet or fiber networks. Each unit can transmit and receive at the same time, allowing an SDI video source to be sent from one location to another while simultaneously receiving a remote ST 2110 stream and outputting it as HDMI video.

The H-ST2110-TXRX is ideal for broadcast studios, live production, control rooms, remote camera links, medical imaging, industrial machine vision, and professional AV-over-IP systems where high-quality, real-time video transport is required.

Bidirectional SDI over ST 2110

The H-ST2110-TXRX is designed as a true bidirectional ST 2110 converter. On the transmit side, the unit accepts a 3G-SDI or HD-SDI input through the BNC connector and converts it into an uncompressed SMPTE ST 2110 IP stream through the SFP+ network port. On the receive side, the same unit can simultaneously receive an incoming ST 2110 stream and convert it to HDMI output for connection to a monitor, display, or production device.

This allows two units to work together as a full two-way video transport system. One unit at Location A can send an SDI camera feed to Location B, while the unit at Location B can simultaneously send a second SDI source back to Location A. Each side receives the remote video feed and outputs it locally through HDMI.

Flexible 10G SFP+ Network Interface

The H-ST2110-TXRX includes a professional 10G SFP+ network port, giving users flexibility to choose the right transport method for their application. The units can be connected directly to each other in a simple point-to-point configuration, or they can be connected through a 10G Ethernet switch network for larger ST 2110 routing, distribution, and monitoring systems.

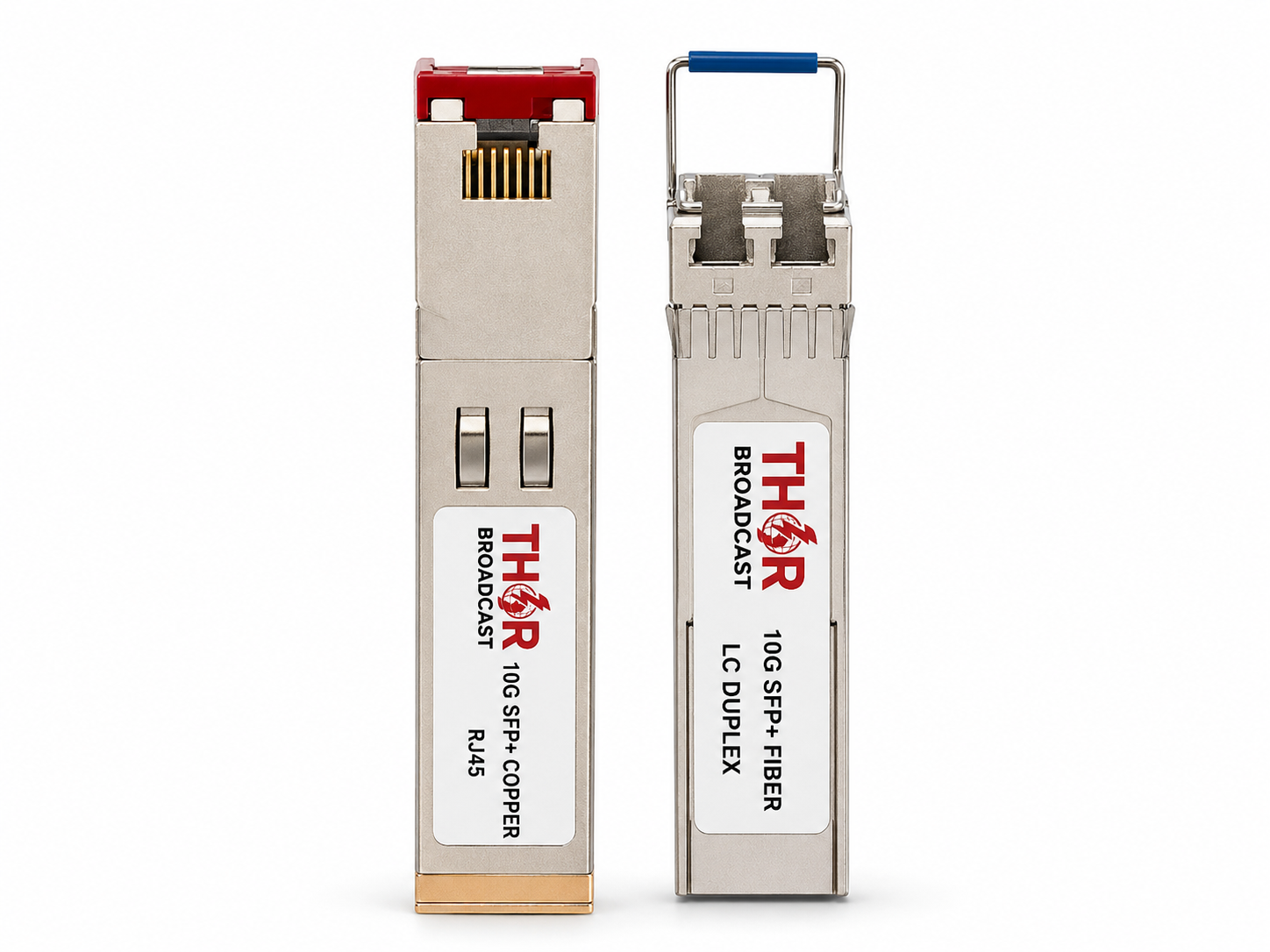

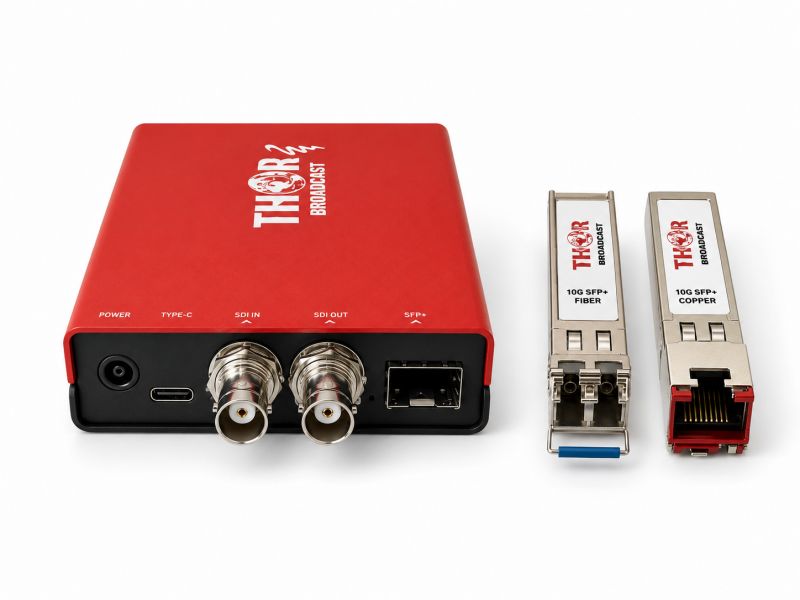

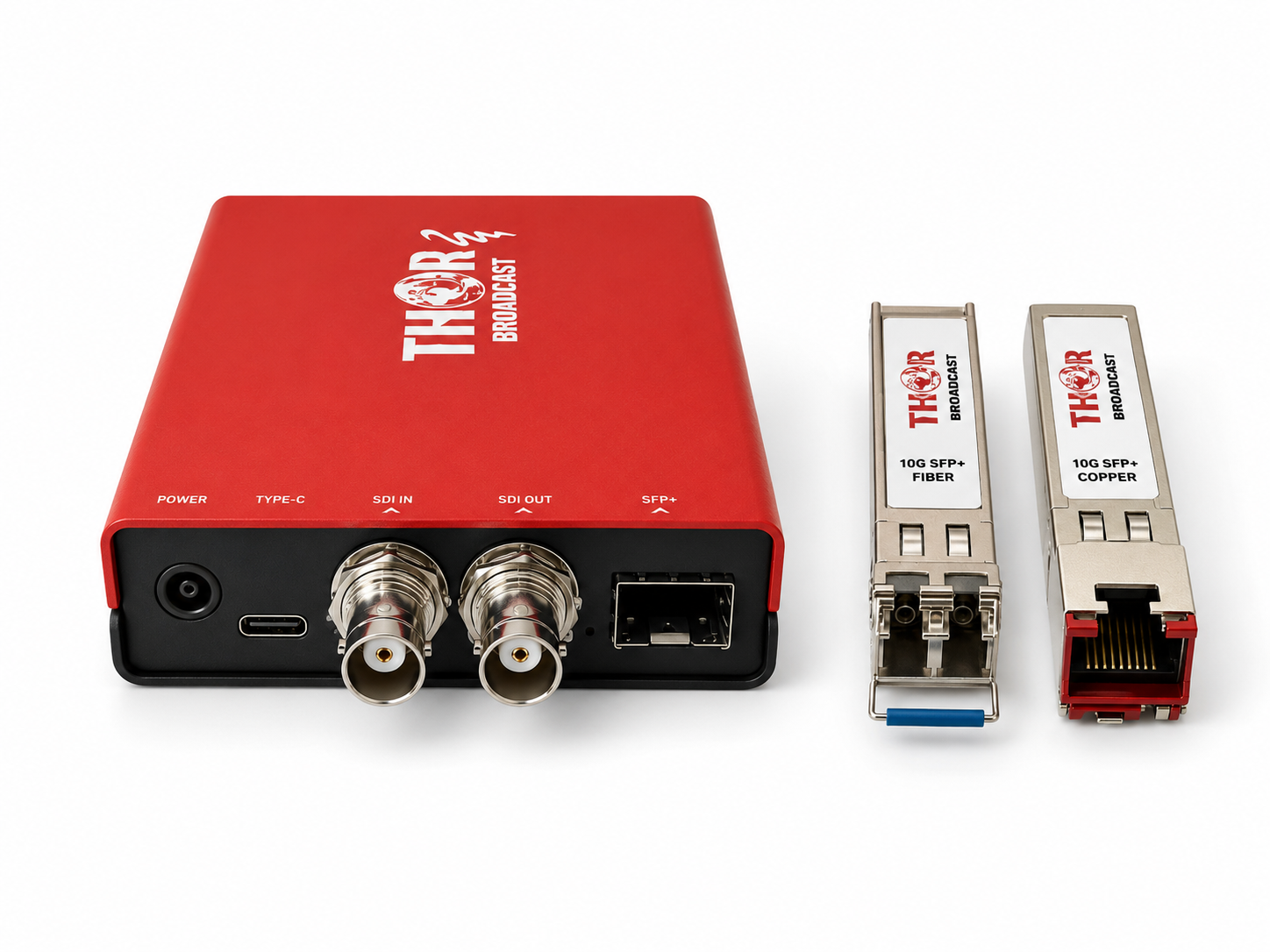

Each unit comes standard with dual 10G single-mode fiber SFP+ modules, making it ready for fiber-based ST 2110 transport. Customers may also use other compatible 10G SFP+ modules, including single-mode fiber, multimode fiber, or copper RJ45 SFP+ modules, depending on the required distance, network infrastructure, and project needs.

This flexibility makes the H-ST2110-TXRX suitable for both dedicated fiber links and modern 10G IP video networks.

SDI Loop Output for Local Monitoring

The unit includes an SDI loop output, allowing the incoming SDI signal to be passed locally while also being converted to ST 2110. This is useful when the original SDI source needs to feed a local SDI monitor, recorder, switcher, router, or other production equipment.

Main Functionality

SDI Input to ST 2110 IP Output
ST 2110 IP Input to HDMI Output
Simultaneous transmit and receive operation
SDI loop output for local monitoring
10G SFP+ port for fiber or copper network connectivity
Point-to-point or 10G switch-based ST 2110 operation

• Key Features

• Bidirectional SMPTE ST 2110 video converter
• Converts 3G-SDI / HD-SDI input to uncompressed ST 2110 IP stream
• Receives ST 2110 IP stream and outputs HDMI video
• One unit can send and receive video at the same time
• SDI loop output for local SDI monitoring or recording
• 10G SFP+ network port

•

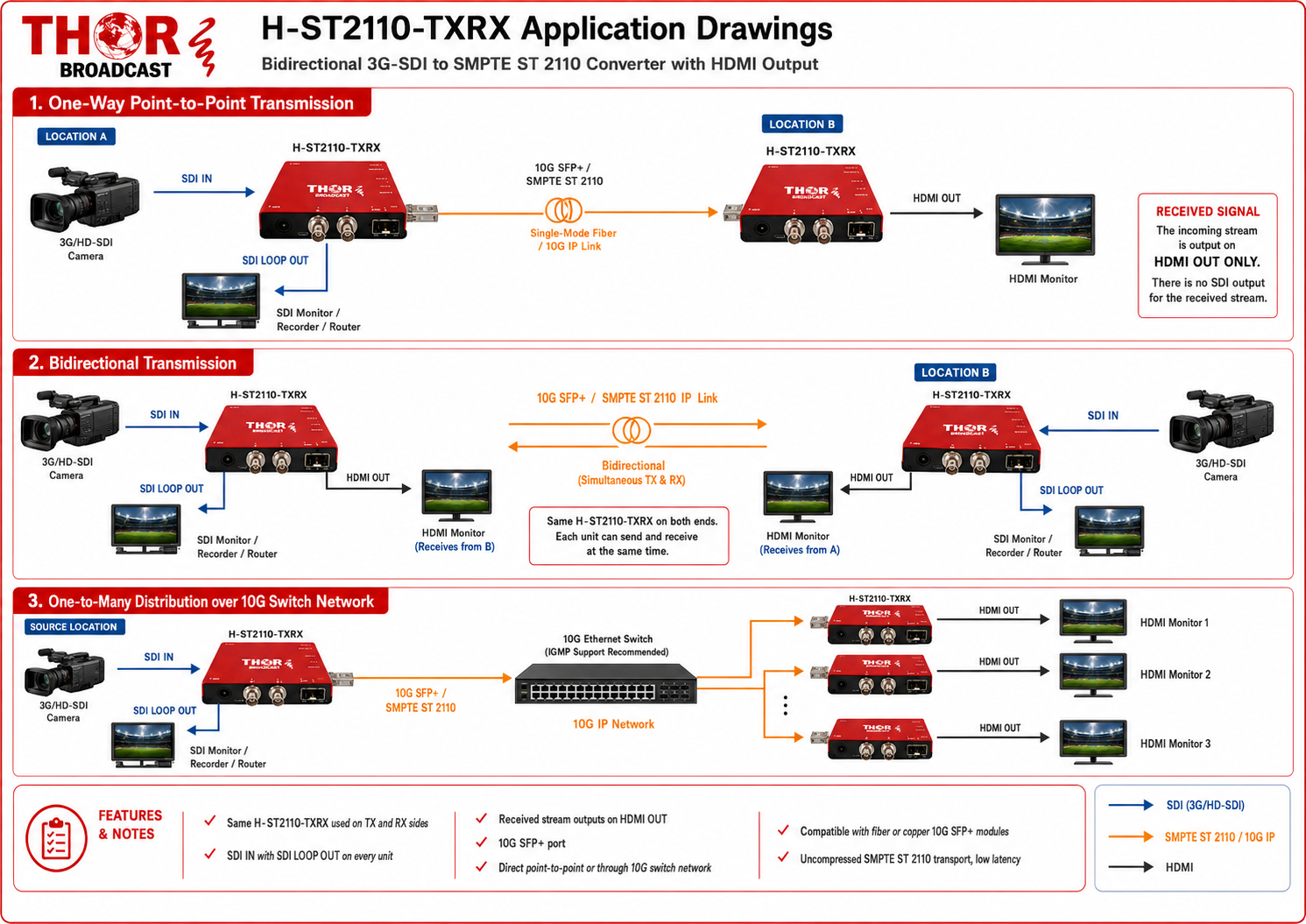

  Typical Point-to-Point Application

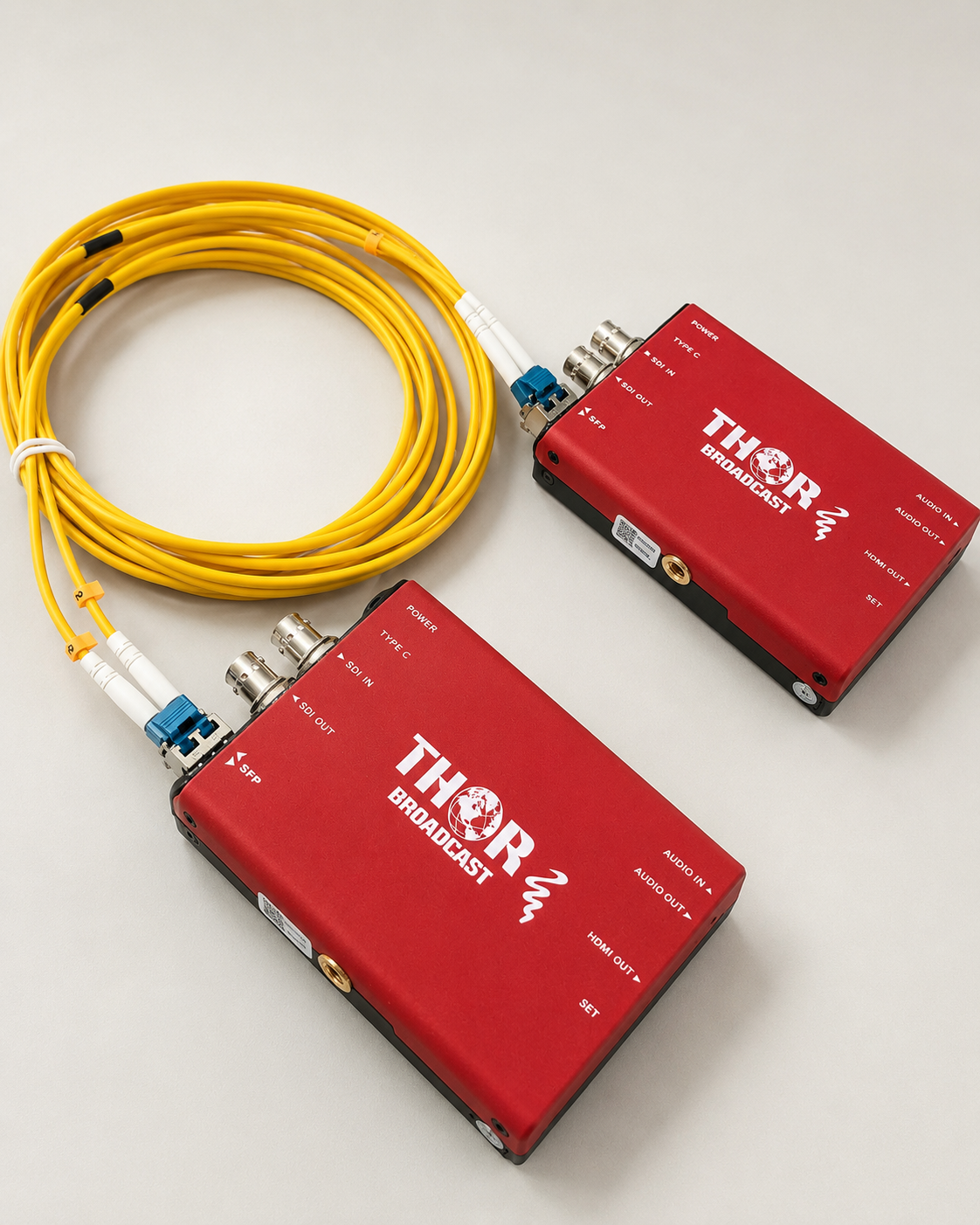

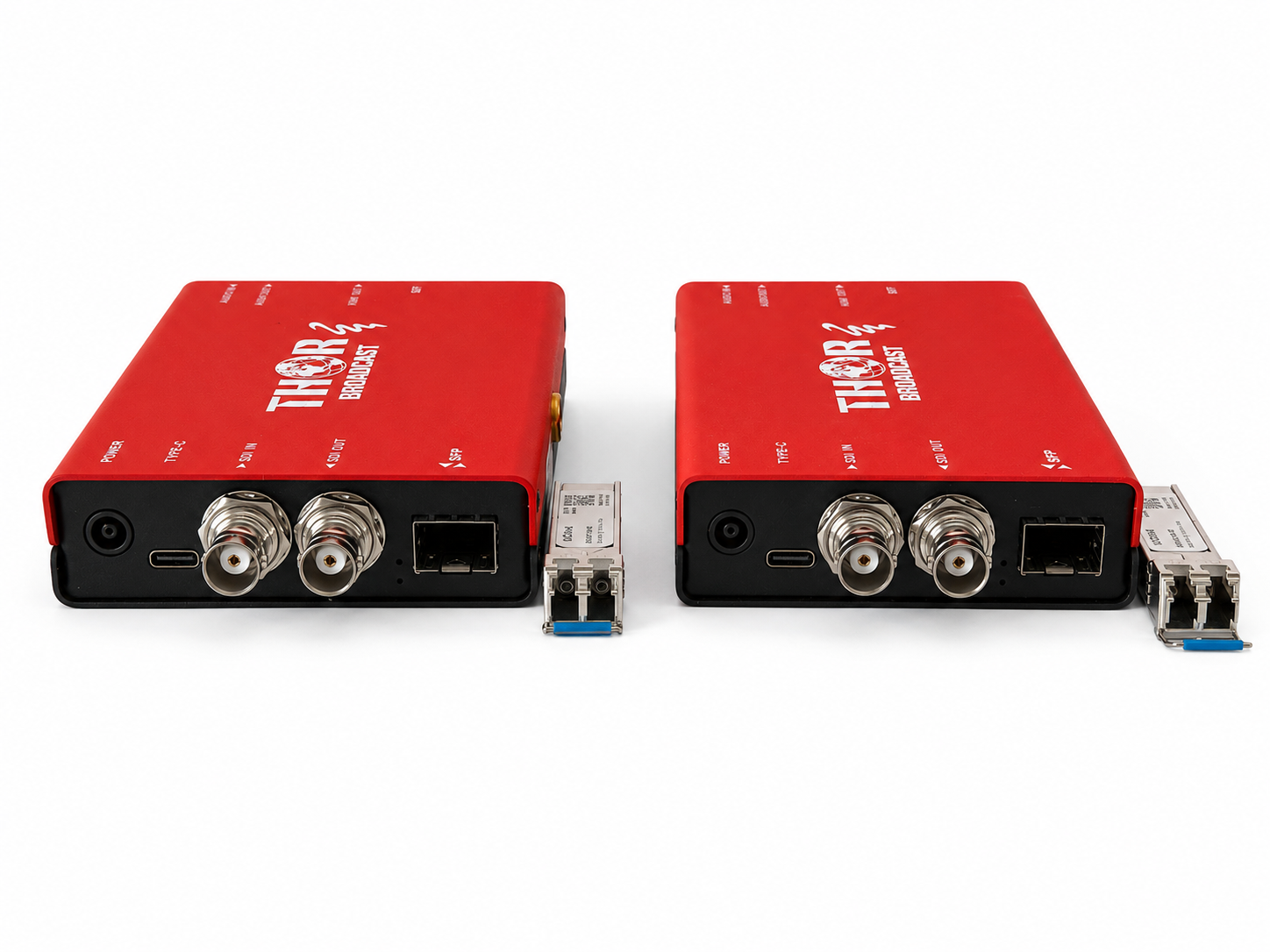

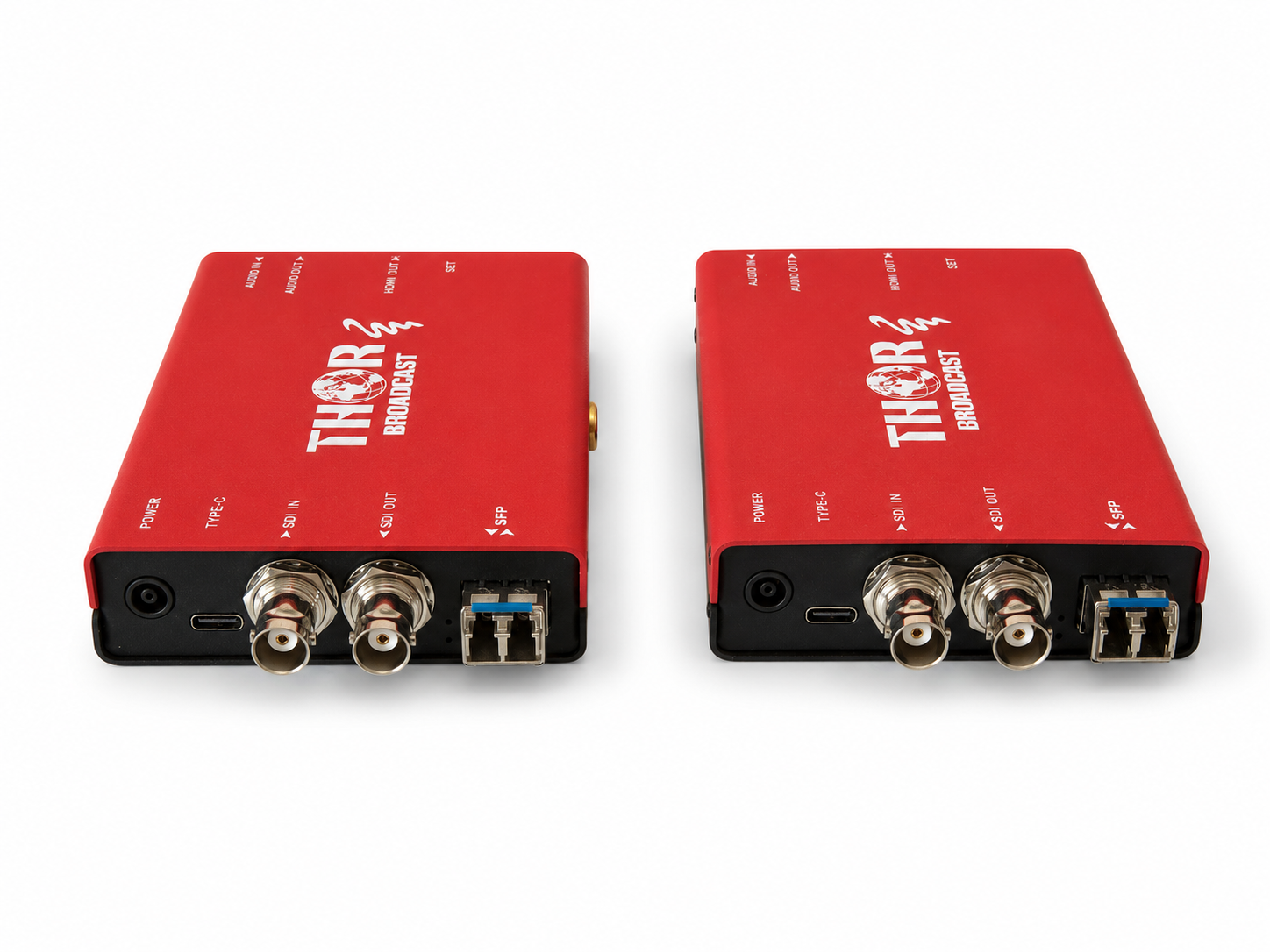

  In a point-to-point setup, one H-ST2110-TXRX is installed at each end of the link. Location A can send an SDI camera feed to Location B over ST 2110, while Location B simultaneously sends another SDI feed back to Location A. The received video at each location is output through HDMI for local display or monitoring.

  This setup is ideal for a simple two-location SDI video-over-fiber link using 10G SFP+ modules.

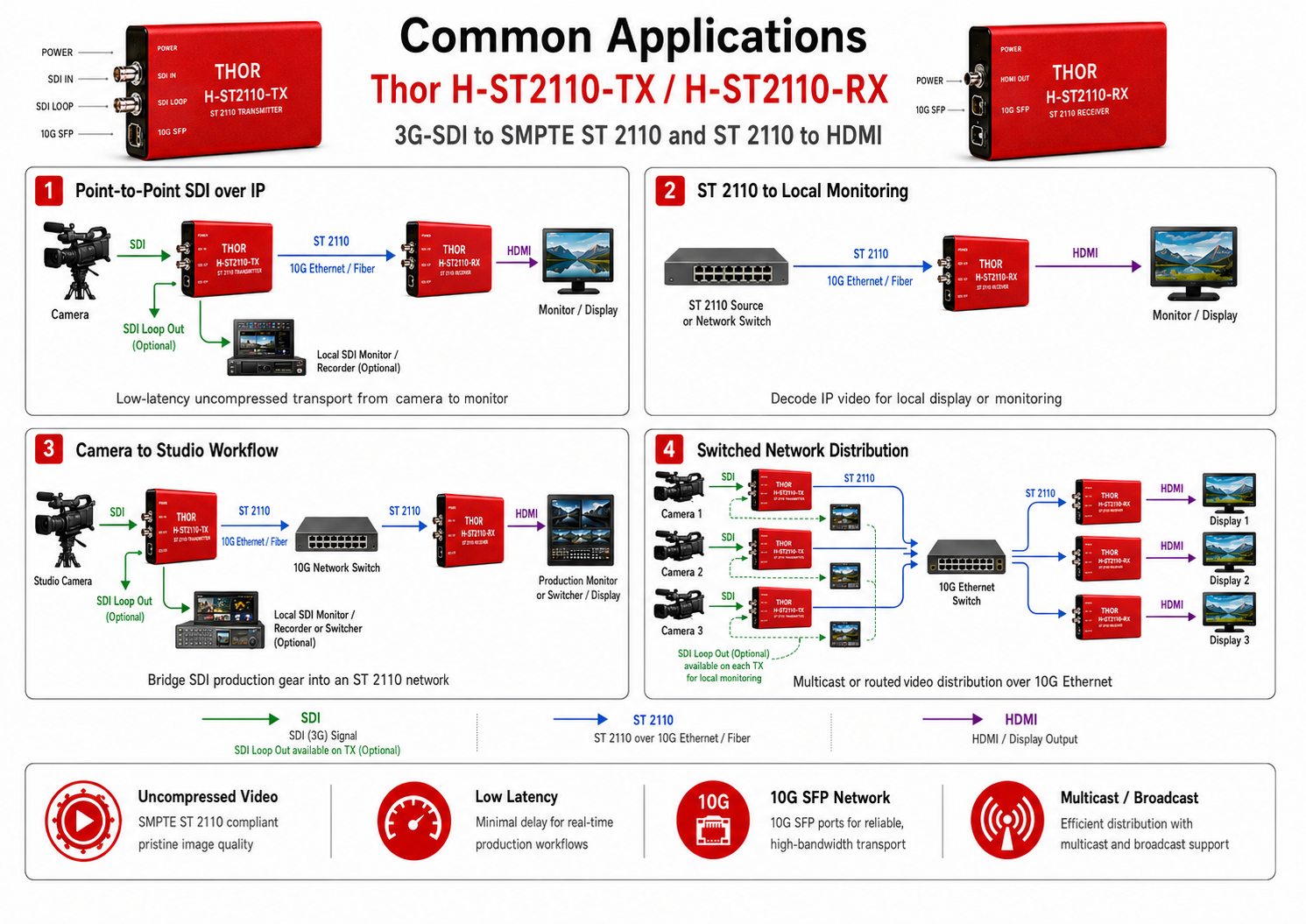

  Typical 10G Switch Network Application

  For larger systems, multiple H-ST2110-TXRX units can be connected to a professional 10G Ethernet switch. This allows SDI sources to be converted into ST 2110 streams and distributed across a 10G IP video network. The system can support routing, monitoring, and flexible video distribution depending on the network design and switch configuration.

• Includes dual 10G single-mode fiber SFP+ modules

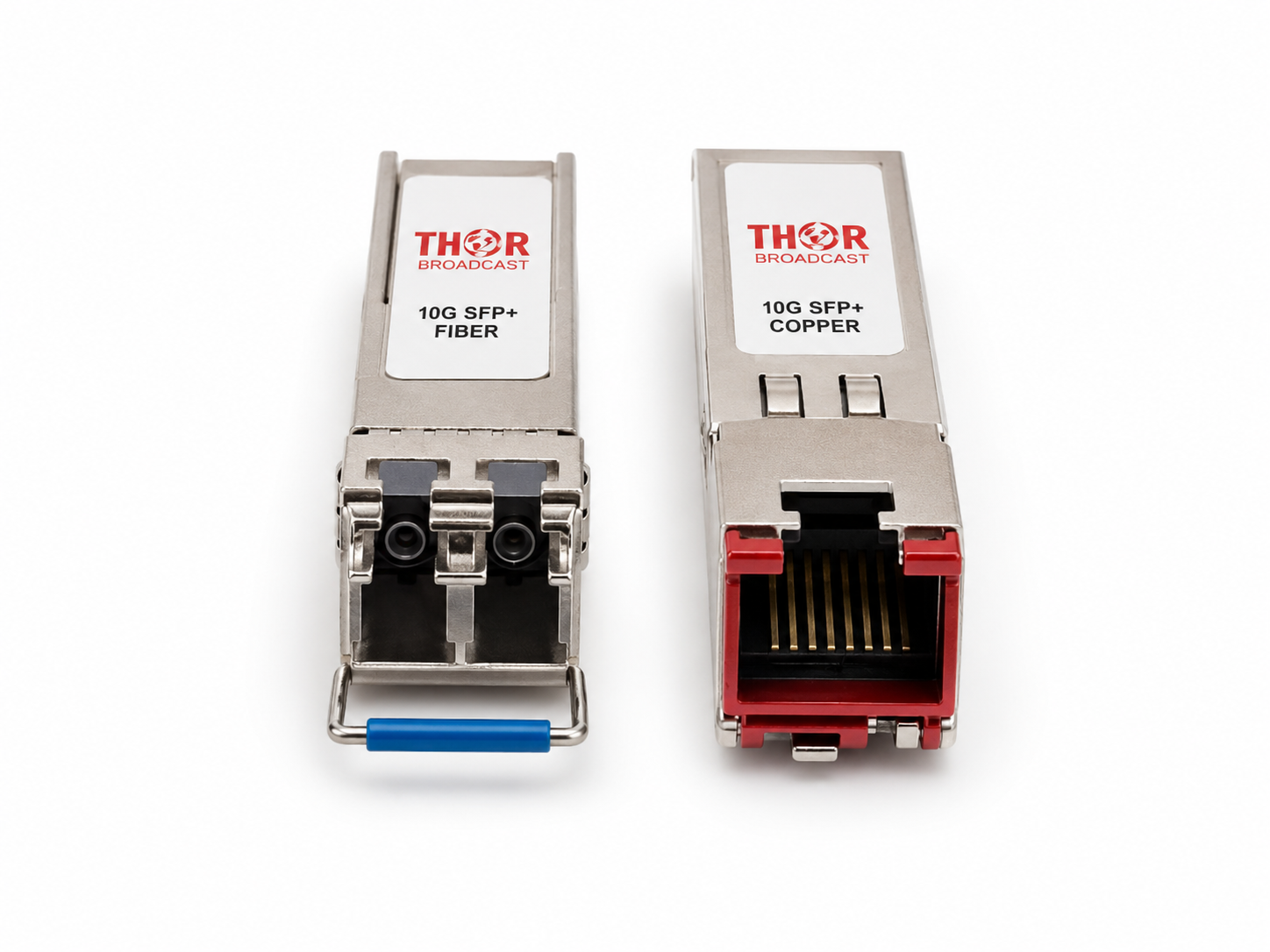

• Supports compatible 10G fiber or copper SFP+ modules
• Can be used point-to-point between two units
• Can be used through a 10G Ethernet switch network
• Supports low-latency uncompressed video transport
• Supports professional ST 2110 video-over-IP workflows
• Ideal for broadcast, production, control room, medical, industrial, and AV-over-IP applications

Typical Point-to-Point Application

In a point-to-point setup, one H-ST2110-TXRX is installed at each end of the link. Location A can send an SDI camera feed to Location B over ST 2110, while Location B simultaneously sends another SDI feed back to Location A. Each location receives the remote video signal and displays it through HDMI.

Typical Network Application

For larger systems, multiple H-ST2110-TXRX units can be connected to a 10G Ethernet switch. This allows SDI sources to be converted into ST 2110 streams for routing, distribution, and monitoring across a professional IP video network.

Why Use the Thor H-ST2110-TXRX?

The Thor H-ST2110-TXRX provides a reliable bridge between traditional SDI video equipment and modern SMPTE ST 2110 IP video infrastructure. Unlike compressed video encoders, this solution is designed for uncompressed, low-latency video transport, preserving image quality for professional broadcast and real-time applications.

With bidirectional operation, SDI loop output, HDMI monitoring output, and 10G SFP network connectivity, the H-ST2110-TXRX is a flexible and cost-effective solution for modernizing SDI workflows and building professional video-over-IP systems.

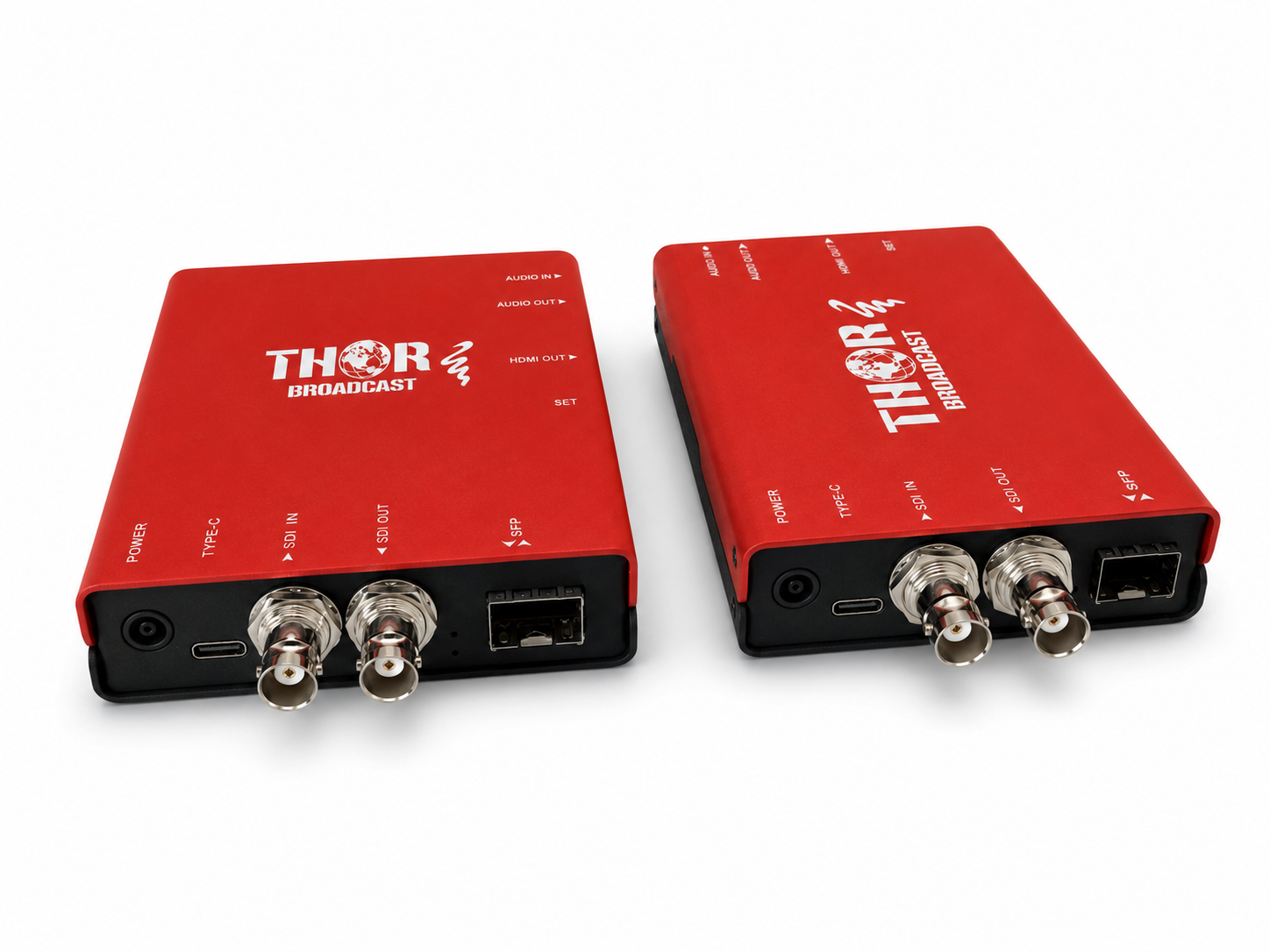

H-ST2110-TXRX - Single bidirectional ST 2110 converter unit with single-mode 10G SFP+ module. Uses dual-fiber LC/PC connection, 9/125 µm single-mode fiber. Two units are required for point-to-point transmission.

Technical Specifications
