Technologies such as 3G SDI, HD-SDI, and 12G SDI over fiber are really very current today, considering that HD and UHD contents are one of the building blocks of most broadcasts.
Table of Contents
Probably one of the most important features of staying updated with the advancement in broadcast technology involves learning about the very minute details of the Serial Digital Interface standards. Technologies such as 3G SDI, HD-SDI, and 12G SDI over fiber are really very current today, considering that HD and UHD contents are one of the building blocks of most broadcasts. This paper, therefore, shall review three standards for which bandwidth capability and image quality, typical uses are put under terms such as SDI over fiber, SDI multiplexer, SDI mux, SDI fiber extender, and SDI fiber multiplexer.
Where Fiber Optic Cables Came in Fiber optic cables revolutionized video transmission since they let the signals go further without losing much quality. SDI is usually over coax cable; however, once fiber optics are used to transmit SDI over fiber, performance is radically enhanced for longer runs. The fiber optic cables are immune to electromagnetic interference; hence a very clean signal is maintained.
HD-SDI operates at a bandwidth of 1.5 Gbps. Its biggest application is transmitting 1080p formats. It will hence find the most significant application in HD broadcasting and studio applications. Since the bandwidth is somewhat low, HD-SDI can support only one HD signal at a time over a single cable.
3G SDI doubles the bandwidth capacity to 3 Gbps; this further allows it to support 1080p video with better frame rates and color depth, thus making it perfect for sports broadcasting and events that demand fast motion without artifacts. The additional bandwidth makes the more complex 3G SDI handle more sophisticated video formats, including 1080p with 10-bit color.
12G SDI is the quantum leap in bandwidth capacity, supporting up to 12 Gbps. This allows for the uncompressed transmission of 4K at 60 frames per second-something quite indispensable in modern high-end broadcasting. The even higher bandwidth allows the transmission of High Dynamic Range content, further enhancing image quality.
HD-SDI goes up to 1080p resolution, decent enough for traditional broadcast applications. The limitation with HD-SDI is that it cannot keep pace with the added resolution audiences now want beyond ultra-high-definition content creation or more complex visual effects. [Read More]
3G SDI extends from HD-SDI by allowing for higher frame rates at better color depth, making for a more colorful and smooth picture. This is very helpful in situations where there is fast motion, such as sporting events or action movies, where this capability to reduce blur makes for a better viewer experience. Additionally, it works well with live broadcasts that demand a high level of visual quality. [Read More]
12G SDI pushes image quality to the edge, enabling 4K video transmission with extreme clarity and detail. This standard finds its greatest application on high-end productions, including feature films and live events that require multiple cameras for every shoot. This also covers HDR content, making images so much richer and more dynamic for an unparalleled viewing experience. [Read More]
HD-SDI: With its capability, HD-SDI is well-suited to traditional broadcast environments such as, amongst others:

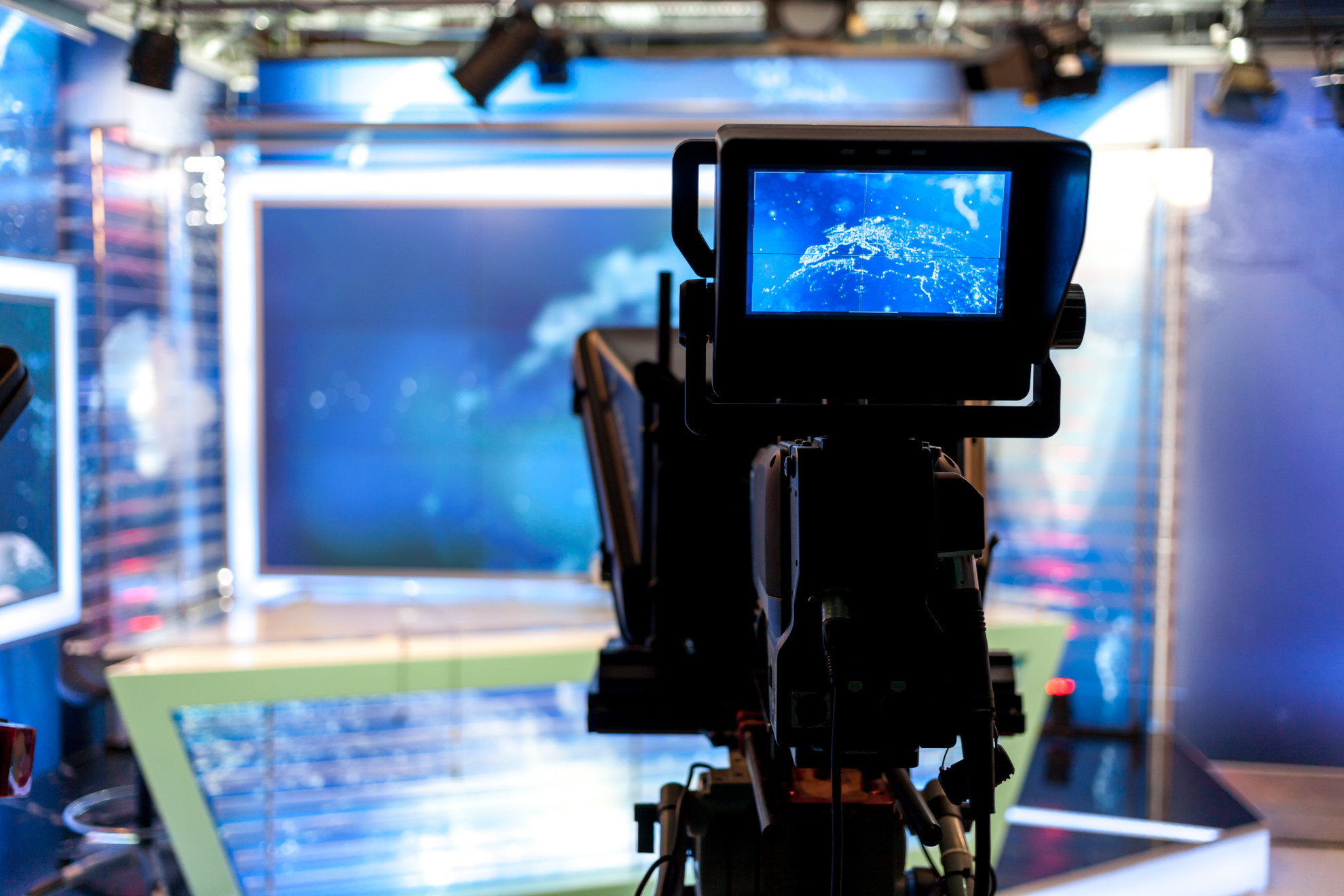

Studio broadcasts where HD is only needed.
Surveillance systems where reliable HD video transmission is a necessity.
Events where the budget may become an issue with more advanced, high-bandwidth solutions.
3G SDI is eminently well-suited to applications that demand quality video with a lot more flexibility, including but not limited to:
High-frame-rate live sports broadcasting of any nature, when the high frames are most useful to capture the action. Multi-camera productions for applications that require several feeds to be combined and forwarded efficiently. High-end video editing applications that call for high-quality signal integrity. 12G SDI Applied at a high enough bandwidth to confidently deal with even advanced broadcasting applications, some of the areas where 12G SDI has been applied include:
Creation of 4K HDR content for movie and premium event applications. Applications that require live broadcasting and stitching of several camera feeds seamlessly.
This is because high-value videos need to be transported over long distances without degradation. Role of SDI Multiplexers An SDI multiplexer may also be termed as SDI Mux, which is basically a device that combines several SDI signals into one stream. This feature can be quite useful when working with 3G and 12G SDI, given that it enables broadcasters to manage many channels effectively.
For example, it is possible to link different cameras to an SDI Mux in a live event; it only has one line out that can go over the fiber optics. This will reduce the level of complexity on wiring and improve general signal integrity.
This is important in view of the fact that the SDI fiber extenders provide an opportunity to perform longer transmission without loss of an SDI signal. Besides, they combine with the SDI multiplexers to turn out a really robust solution suitable for the most difficult conditions of high-quality video transmission.
For instance, an SDI fiber multiplexer would take the numerous different SDI signals output from, say, a sports event and combine them into a single stream, then transmit the data over the fiber optics to some central location. This, in turn, would enable broadcasters to maintain high-quality visuals without risk of degradation associated with longer coaxial runs.
What's most important to broadcast professionals is the distinction between 3G, HD, and 12G SDI over fiber solutions. Each of these standards offers unique benefits about bandwidth, image quality, and applications within broadcast.
With the industry continuing to move towards higher resolutions and an increasing complexity in workflows, this is a space that, time after time, is going to continue making the SDI multiplexers, fiber extenders, and fiber multiplexers increasingly important. This is one way of recognizing that with advanced technology, broadcasters are able to make sure quality is maintained in content delivery, and at the same time it meets the ever-increasing expectations of the viewers. In this light, it will put them in an even better position to make informed decisions in enhancing their traditional HD broadcast or bleeding-edge 4K production capability.
