Case study of a resort-wide MATV and RF over Fiber upgrade at WorldMark Angels Camp using Thor Fiber solutions, SONIFI integration, and centralized TV distribution.
_Technology.jpg)
Resort-wide MATV and RF over Glass (RFoG) deployment using Thor Fiber solutions to centralize television services, improve signal quality, simplify maintenance, and support interactive hospitality services over existing singlemode fiber.
View Thor RF Over Fiber ProductsTable of Contents
WorldMark Angels Camp, a Wyndham Vacation Resort located in California, completed a comprehensive television distribution upgrade utilizing Thor Fiber RF over Fiber (RFoG) technology.
The project was designed to modernize the property's MATV infrastructure while leveraging the resort's existing singlemode fiber network. The deployment centralized television services, improved signal quality, simplified maintenance, and provided a scalable foundation for future hospitality technology upgrades.
The resort's buildings were divided into two independent RF distribution trunks, improving system organization, scalability, and operational reliability.
Large hospitality properties often face several television distribution challenges. WorldMark Angels Camp required a solution capable of delivering television programming, guest services, and interactive television functionality across a multi-building campus while utilizing the property's existing fiber infrastructure.
Transporting television signals reliably between multiple resort buildings requires a distribution platform that performs over long distances.
Traditional coaxial distribution networks can introduce loss, noise, and service inconsistency across larger properties.
Hospitality properties need infrastructure that supports future channels, services, and building-level upgrades without major redesign.
Distributed television equipment across multiple locations can make maintenance, troubleshooting, and operational management more difficult.
Interactive television and guest services platforms often require reliable return-path support in addition to forward RF transport.
The system had to integrate with existing SONIFI FTG/ITV and DirecTV hospitality distribution infrastructure.

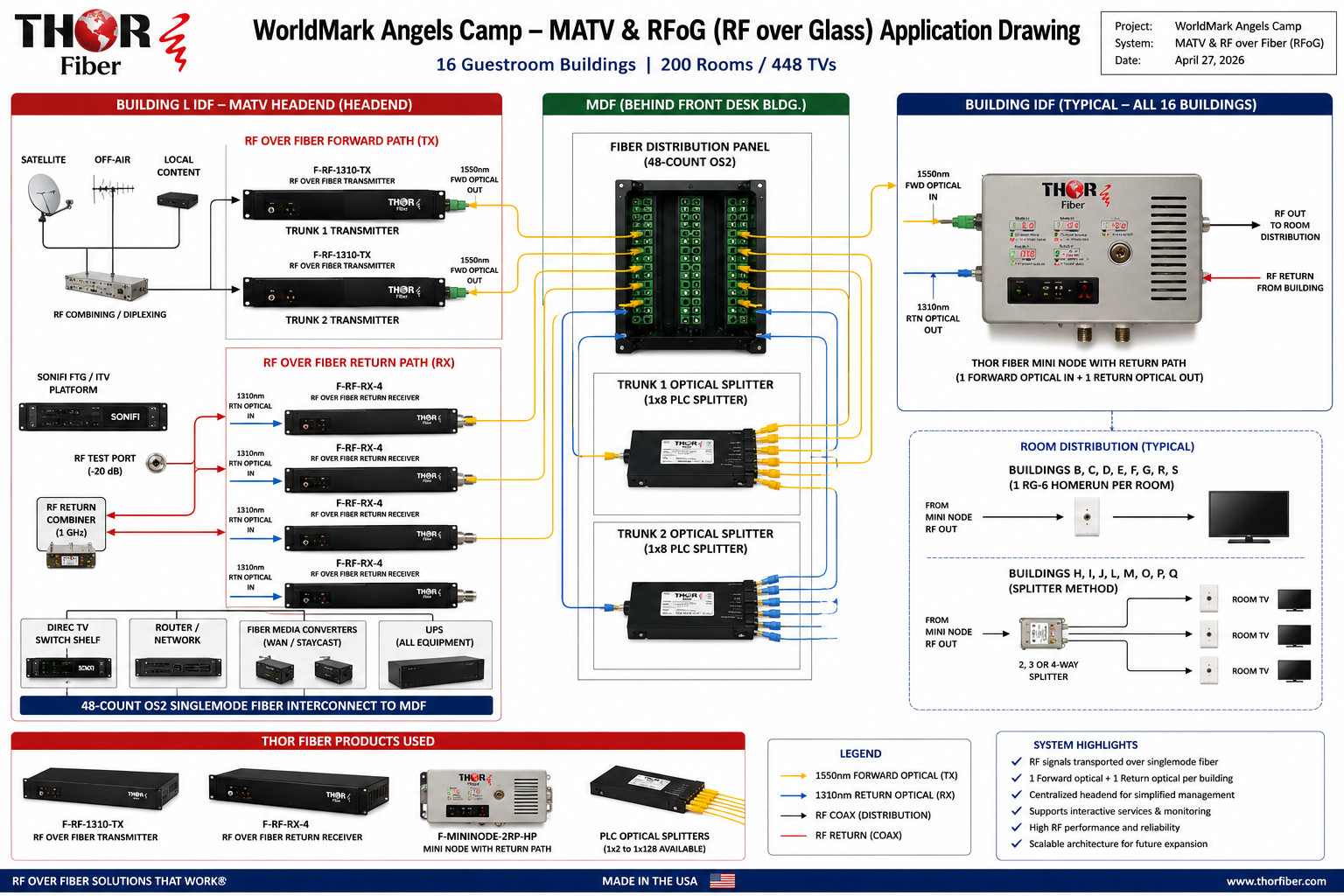

The upgraded architecture utilizes Thor Fiber RF over Fiber technology to transport CATV and MATV RF signals over dedicated singlemode fiber.
At the MATV Headend, RF signals are converted into optical signals and distributed throughout the property via optical splitters and OS2 fiber infrastructure. At each building, a Thor Fiber Mini Fiber Node converts the optical signal back into RF for local television distribution.
The design includes both forward RF transport and return path RF monitoring and interactive services. This architecture supports SONIFI Interactive Television services while maintaining exceptional RF signal quality throughout the resort.
The MATV Headend utilizes dedicated RF over Fiber transmitters for each distribution trunk.
Product:
F-RF-1310-TX RF Over Fiber Transmitter
Key Benefits:
Dedicated return-path receivers provide monitoring and interactive service transport from all building IDFs back to the centralized headend.
Product:
F-RF-RX-4 RF Over Fiber Return Receiver
Key Benefits:
Each building IDF contains a Thor Fiber Mini Fiber Node, and the project deployed Mini Fiber Nodes throughout all sixteen guestroom buildings.
Product:
Features:
The optical distribution network utilizes passive PLC splitters to distribute optical signals to each building.
Product:
Benefits:
The primary television headend was installed in the Building L IDF. Centralizing the equipment significantly reduces maintenance complexity while simplifying troubleshooting and future upgrades.
The headend includes:
The property was divided into two RF distribution trunks. This approach improves operational flexibility while balancing optical distribution loads.
Buildings:
Buildings:
The resort utilizes a dedicated fiber backbone that provides virtually lossless signal transport between the MDF and all building IDFs.
Optical transport eliminates many of the challenges associated with long coaxial cable runs.
The RFoG architecture delivers highly reliable signal distribution throughout the property.
Centralized management significantly reduces troubleshooting time and operational costs.
The integrated return-path architecture supports SONIFI guest services and interactive television applications.
The fiber infrastructure provides a foundation for:
RF over Fiber technology has become the preferred television distribution platform for a wide range of multi-building and mission-critical properties.
Benefits include:
| Project | WorldMark Angels Camp Resort |
| Location | Angels Camp, California |
| Architecture | MATV + RF over Glass (RFoG) |
| Buildings Served | 16 |
| Guest Suites | 200 |
| Televisions | 448 |
| Fiber Infrastructure | OS2 Singlemode Fiber |
| Technology Platform | Thor Fiber RF over Fiber Solutions |
| Hospitality Integration | SONIFI FTG / ITV |
| Result | Resort-wide centralized television distribution with interactive services support, improved reliability, simplified maintenance, and future-ready fiber infrastructure. |
