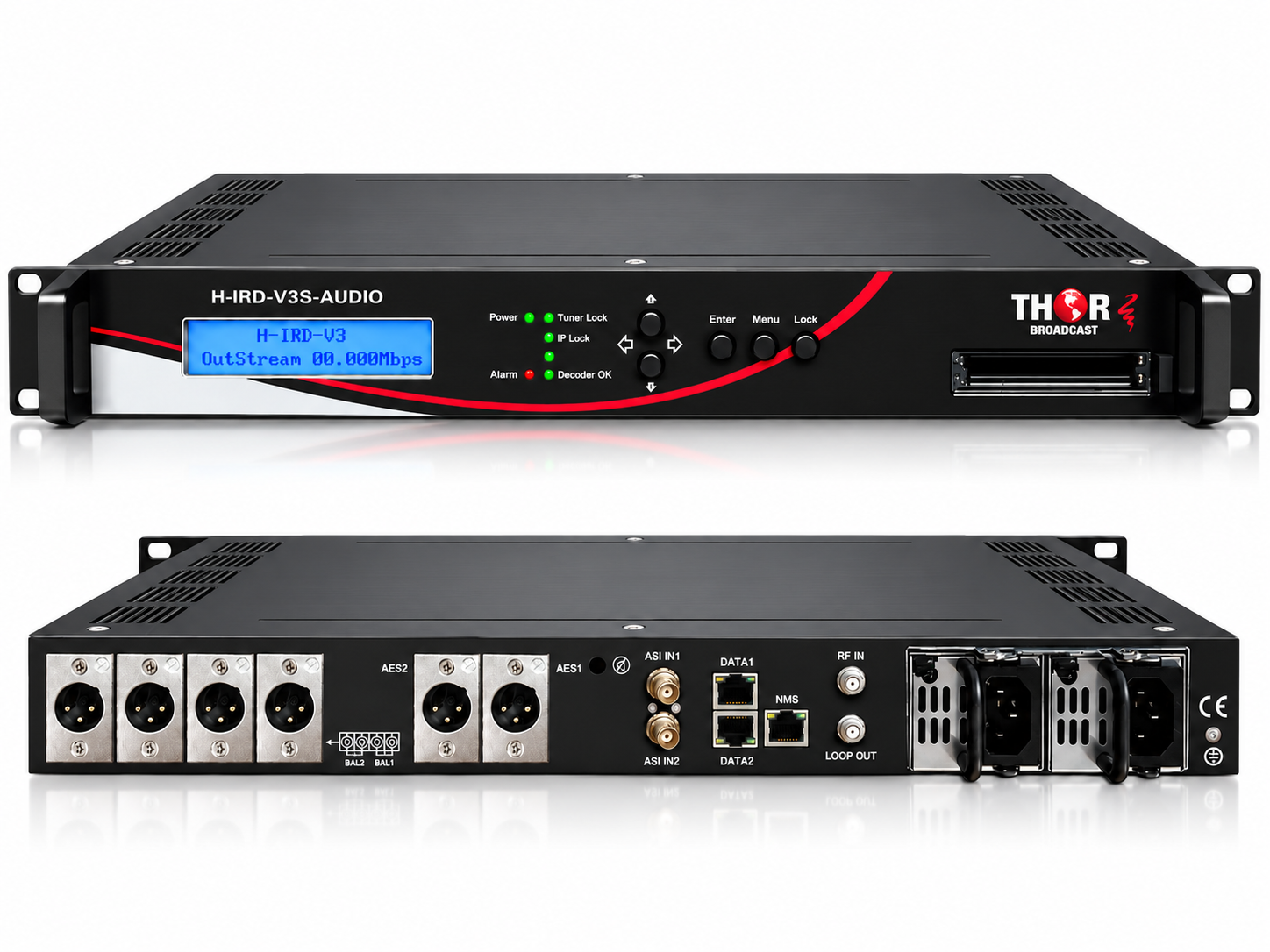

The H-IRD-V3S-AUDIO is a professional dual-program audio decoder designed for broadcast headends, satellite downlink facilities, IPTV systems, cable television networks, and professional audio distribution applications.
The unit can decode two audio programs simultaneously from a satellite tuner, ASI transport stream, or IP stream.
The H-IRD-V3S-AUDIO supports professional balanced analog audio and AES/EBU digital audio output through XLR interfaces,
providing an effective bridge between compressed digital broadcast transport streams and professional audio infrastructure.
For IP-based systems, two input streams can be received using UDP or RTP over unicast or multicast networks,
while decoded programs can also be delivered as individual SPTS streams over IP.
The decoder supports MPEG-1 Layer II, MPEG-2 AAC, AC-3, E-AC-3 and DRA,
providing compatibility with a wide range of digital television and radio distribution systems.
Local LCD controls and browser-based Web GUI management provide flexible configuration and system monitoring.

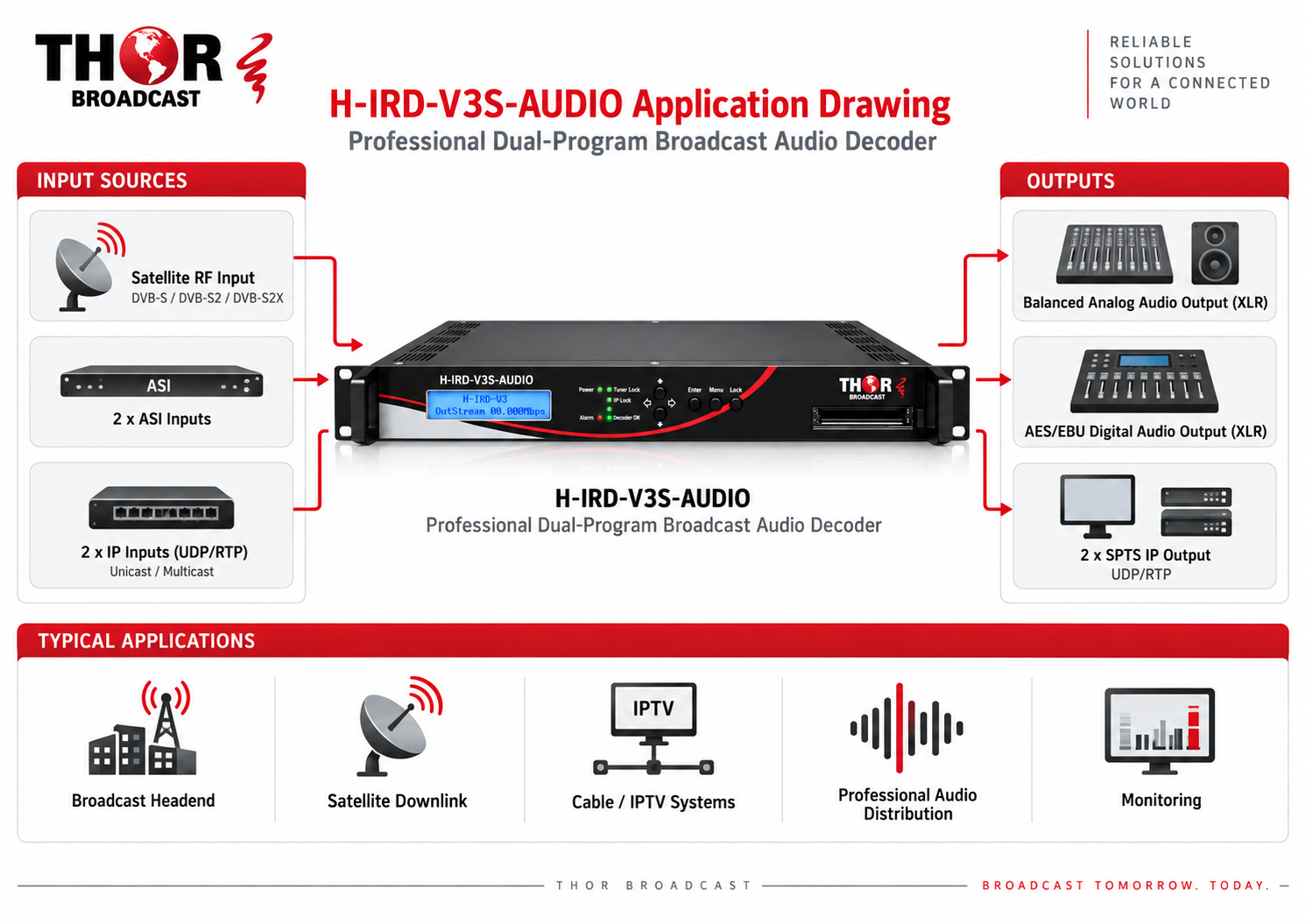

Broadcast Headends
Decode satellite, ASI or IP audio services for professional audio distribution.
Satellite Downlink Facilities
Extract audio services from DVB-S, DVB-S2 or DVB-S2X satellite transport streams.
Cable Television Systems
Decode program audio for redistribution within CATV headends.
IPTV Systems
Receive multicast or unicast transport streams and convert selected audio services to professional analog or AES/EBU outputs.
Radio & Audio Distribution
Decode compressed digital audio services for routing into broadcast audio systems.
Monitoring Facilities
Provide professional audio outputs from satellite, ASI or IP transport streams for confidence monitoring.
H-IRD-V3S-AUDIO – Professional Dual-Program Satellite & IP Audio Decoder ( DVBS/S2/2X - Satellite Tuner)
H-IRD-V3-ATSC-AUDIO Professional Dual-Program 8VSB-ATSC & IP Audio Decoder ( ATSC 1.0 Tuner) - Special order
H-IRD-V3-QAM-AUDIO Professional Dual-Program QAM & IP Audio Decoder ( QAM1.0 Tuner) -Special Order
| Category | Parameter | Specification |
|---|---|---|
| Decoding | Number of Audio Programs | 2 simultaneous audio decodes |
| Audio Decoding | Formats | MPEG-1 Layer II, MPEG-2 AAC, AC-3, E-AC-3, DRA |
| Audio Decoding | Sample Rate | 48 kHz, 44.1 kHz |
| Audio Control | Audio Channel | Left, Right, Stereo |
| Audio Control | Gain Adjustment | -24 dB to +12 dB |
| Satellite Input | Standards | DVB-S, DVB-S2, DVB-S2X |
| Satellite Input | Frequency | 950–2150 MHz |
| DVB-S | Symbol Rate | 0.5–45 Msps |
| DVB-S | Input Signal Level | -65 to -25 dBm |
| DVB-S | Constellation | QPSK |
| DVB-S | FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| DVB-S2 | Symbol Rate | QPSK/8PSK/16APSK: 0.5–45 Msps; 32APSK: 0.5–40 Msps |
| DVB-S2 | Constellation | QPSK, 8PSK, 16APSK, 32APSK |
| DVB-S2X | Symbol Rate | QPSK/8PSK/16APSK: 0.5–45 Msps; 8APSK/32APSK: 0.5–40 Msps |
| DVB-S2X | Constellation | QPSK, 8PSK, 8APSK, 16APSK, 32APSK |
| ASI Input | Interface | 2 × ASI, BNC |
| IP Input | Protocol | UDP/RTP |
| IP Input | Mode | Unicast / Multicast |
| IP Input | Interfaces | 2 × 100/1000M adaptive RJ45 |
| Analog Output | Interface | 2 balanced analog audio outputs, XLR |
| Digital Output | Interface | 2 AES/EBU digital audio outputs, XLR |
| IP Output | Streams | 2 SPTS |
| IP Output | Protocol | UDP/RTP, Unicast / Multicast |
| Local Control | Interface | LCD + control buttons |
| Remote Management | Interface | Web-server management |
| Language | GUI | English |
| Firmware Upgrade | Method | Web management |
| Dimensions | W × D × H | 482 × 350 × 44 mm |
| Weight | Approximate | 3.2 kg |
| Operating Temperature | Range | 0 to 45°C |
| Storage Temperature | Range | -20 to 80°C |
| Power Input | AC | 110 VAC ±10%, 50/60 Hz or 220 VAC ±10%, 50/60 Hz |
| Power Consumption | Maximum | <20 W |
| Power Supply | Configuration | Single PSU or optional dual hot-swappable PSU |
