HDMI to Component Video Audio converter

H-HDMI-YPbPr
Qty: 0
Availability: Check availability Condition: new QR Code HDMI to Component Video Audio converter
Shipping: starting at $10 Warranty: 1 Year
ask about product
send request
Description Features Drawings Accessories Specification Support

Description

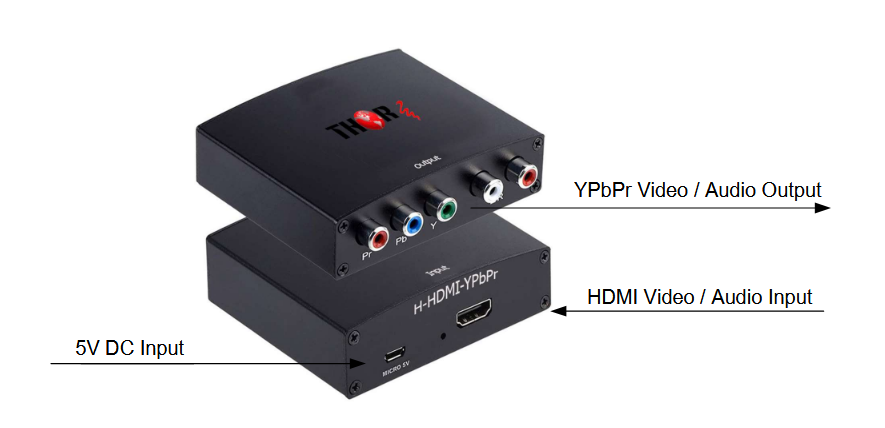

HDMI to Component Video Audio Converter HDMI input to analog YPbPr Video and R/L audio signal output.

The HDMI to YPbPr converter is a device that allows you to convert a digital HDMI signal to an analog YPbPr signal. This is useful if you have an older TV or display that doesn't have an HDMI input, but does have a component video input (which uses the YPbPr signal). The converter has an HDMI input port and a YPbPr output port, as well as an LR RCA audio output port.



Features

  • Allows you to convert HDMI signal source to the YPbPr Component Video Audio
  • HDCP
  • HDTV/YPbPr
  • Video resolution up to 1080P
  • 165MHz/1.65Gbps per channel (6.75Gbps full channel) bandwidth
  • 8bit per channel (24bit for all channels) deep color
  • PCM and Dolby Digital Audio

Drawings

Accessories & Upgrades

Specification

  • HDMI-Compatible connector
  • Type A (19-pin) female Video interface
  • 3 RCA component Audio interface
  • 2 RCA component Input Video
  • HDMI Output Video
  • YPbPr Interlaced (50&60HZ)
  • 480i, 576U, 1080i Progressive (50&60Hz)
  • 480p, 576p, 720p, 1080p
  • Working temperature: 0 to +70°C
  • Working humidity: 10% to 85% RH (non-condensing)
  • Storage temperature: -10 to +80°C
  • Storage humidity: 5% to 95% RH (non-condensing)
  • External power supply: DC 5V/1A
  • Power consumption (maximum): 5W
  • Size: 88*60*25mm
