One Device. Two Distribution Technologies.

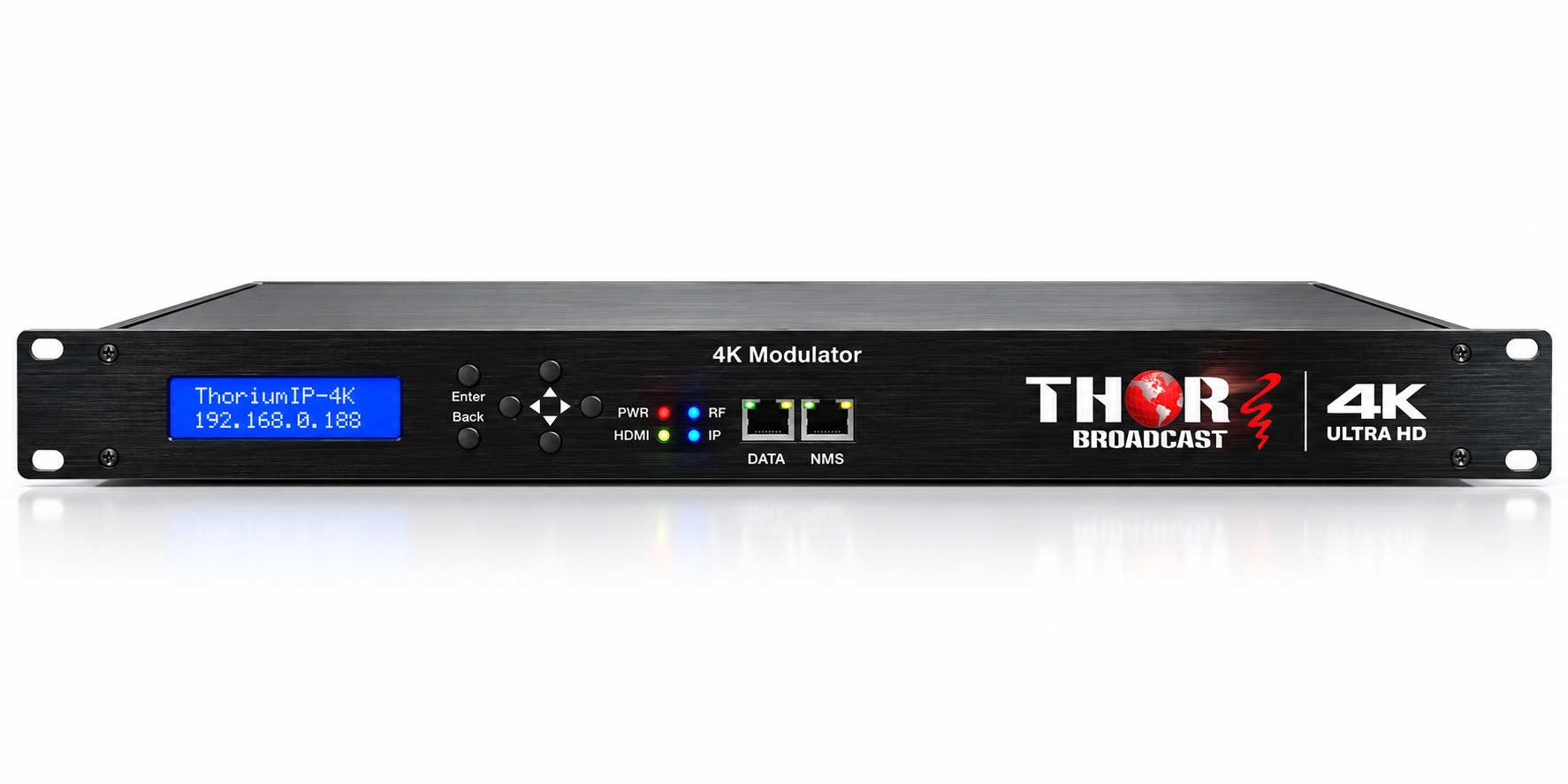

The ThoriumIP-4K is a professional single-channel 4K UHD HDMI encoder and integrated ATSC/QAM RF modulator, designed for high-quality video distribution over Ethernet and coaxial cable networks.
Connect a 4K HDMI source such as a media player, computer, broadcast receiver, or video playback system and convert it into an efficient H.265 or H.264 digital video stream.
The unit supports 4K UHD resolution up to 3840 × 2160 at 60 frames per second using H.265/HEVC encoding, delivering professional video quality while optimizing network bandwidth.
Unlike standard IPTV encoders, ThoriumIP-4K also includes an integrated ATSC/QAM RF modulator, allowing compatible video programming to be distributed through traditional RF television infrastructure.
This makes it an excellent solution for hotels, hospitals, sports venues, commercial buildings, educational facilities, and professional broadcast installations.
The ThoriumIP-4K offers two professional video distribution capabilities:
IPTV Streaming
Convert HDMI video into H.265 or H.264 IP streams and distribute them over Ethernet using UDP/RTP multicast or unicast transmission.
ATSC/QAM RF Modulation
Use the integrated RF modulator to distribute compatible television programming over coaxial cable networks using ATSC 1.0 or J.83B QAM standards.
Both distribution technologies are built into one compact, professional rack-mountable unit.
1. Connect Your 4K HDMI Source
Connect a 4K media player, computer, satellite receiver, or other HDMI video source to the encoder.
The HDMI loop output allows the incoming signal to be connected to an additional display or monitoring device.
2. Configure Your Video Encoding
Select H.265/HEVC or H.264/AVC encoding through the web management interface.
For maximum 4K resolution and frame rate, use H.265 encoding at up to 3840 × 2160p60.
3. Connect to Your Network
Connect the Gigabit Ethernet DATA port to your network switch.
The encoder distributes video over IP using UDP or RTP multicast or unicast streaming.
4. Connect Your RF Distribution Network
Connect the integrated RF output to a compatible ATSC or QAM television distribution system.
The RF modulator supports ATSC 1.0 and J.83B QAM64/QAM256 modulation.
5. Start Distributing Video
Deliver professional encoded video over your IP network or distribute compatible RF television programming through your coaxial infrastructure.
ThoriumIP-4K includes flexible audio encoding and passthrough capabilities for professional installations.
The system can detect whether the incoming HDMI audio is standard PCM or a supported Dolby Digital bitstream.
For PCM audio sources, the encoder offers selectable audio encoding options including AC-3 stereo, AAC, and MPEG-1 Layer II.
For supported Dolby Digital sources, AC-3 5.1 passthrough allows existing multichannel audio to be preserved.
This simplifies installations where different HDMI sources use different audio formats.
ThoriumIP-4K supports:
H.265/HEVC encoding up to 3840 × 2160p60
H.264/AVC encoding up to 3840 × 2160p30
Full HD 1080p encoding up to 60 fps
720p encoding up to 60 fps
Adjustable video encoding configurations through the web interface
UDP/RTP IPTV distribution over multicast or unicast networks
The built-in web management interface provides convenient access to device configuration.
Dedicated Gigabit Ethernet NMS and DATA ports separate management connectivity from video streaming connections.
The device can be configured and administered through a standard network-connected computer.
ThoriumIP-4K is part of THOR Broadcast's professional ThoriumIP Plug-and-Play IPTV ecosystem, which includes multi-channel HDMI encoders, IPTV receivers, Android TV playback applications, and optional centralized management.
The ThoriumIP family is designed to simplify professional IPTV installation and reduce the complexity traditionally associated with distributing television channels over Ethernet networks.
ThoriumIP-4K – Professional 4K Encoding with Flexible IP and RF Distribution.
Single-Channel 4K HDMI Input – Encode a professional UHD HDMI source using one rack-mounted device.
4K60 H.265/HEVC Encoding – Supports resolutions up to 3840 × 2160 at 60 fps using efficient H.265 compression.
H.264/AVC Encoding – Supports 4K up to 30 fps and Full HD 1080p up to 60 fps for applications requiring H.264 compatibility.
Integrated ATSC/QAM RF Modulator – Distribute compatible television programming through existing coaxial infrastructure using ATSC 1.0 or J.83B QAM64/QAM256.
IPTV Multicast & Unicast Streaming – Supports UDP/RTP streaming over professional Ethernet networks.
HDMI Loop Output – Provides an additional HDMI connection for local monitoring or display.
Intelligent Audio Detection – Automatically detects incoming PCM or supported Dolby Digital audio formats.
Dolby Digital AC-3 5.1 Passthrough – Preserves supported Dolby Digital multichannel audio without re-encoding it into stereo.
Multiple Audio Encoding Formats – Supports MPEG-1 Layer II, AAC, HE-AAC, and AC-3 audio options.
Dual Gigabit Ethernet Ports – Separate 10/100/1000 Mbps network connections for device management (NMS) and IPTV streaming (DATA).
Web-Based Management – Configure video, audio, streaming, and RF settings through the device's web interface.
19-Inch Rack-Mountable Design – Compact professional 1RU chassis suitable for standard equipment racks.
Hotels & Resorts – Distribute professional video programming through IPTV networks or existing coaxial television infrastructure.
Hospitals & Healthcare Facilities – Deliver television programming and informational content throughout patient rooms and common areas.
Sports Bars & Restaurants – Encode high-quality HDMI video and distribute programming to multiple televisions.
Schools & Universities – Distribute educational programming, campus video, and live event content.
Corporate Offices – Deliver professional video, company programming, and digital signage content over IP networks.
Commercial Buildings – Support IPTV and RF television installations using existing network and coaxial infrastructure.
Broadcast & AV Systems – Integrate H.265/H.264 video encoding, IP streaming, and ATSC/QAM RF modulation into professional distribution systems.
ThoriumIP-4K -1Ch HDMI input - IPTV and RF QAM/ATSC Output
| Parameter | Specification |
|---|---|
| Model | ThoriumIP-4K |
| Product Type | 1-Channel 4K HDMI IPTV Encoder & ATSC/QAM RF Modulator |
| HDMI Inputs | 1 × HDMI |
| HDMI Loop Output | 1 × HDMI |
| HDMI Interface | HDMI 2.0 or Later for 4K Sources |
| Installation | 19-Inch Rack-Mountable, 1RU |
| Parameter | Specification |
|---|---|
| Video Compression | H.265/HEVC, H.264/AVC |
| Maximum H.265 Resolution | 3840 × 2160p60 |
| Maximum H.264 Resolution | 3840 × 2160p30 |
| H.265 4K Frame Rates | 25, 29.97, 30, 50, 59.94, 60 fps |
| H.264 4K Frame Rates | 25, 29.97, 30 fps |
| 1080p Frame Rates | 25, 29.97, 30, 50, 59.94, 60 fps |
| 720p Frame Rates | 25, 29.97, 30, 50, 59.94, 60 fps |
| GOP Structure | IPPP, IBBP |
| Supported Input Color Formats | YUV 4:4:4 / 4:2:2 / 4:2:0 |
| Output Color Format | YUV 4:2:0 |
| Color Space | ITU-R BT.709 |
| Color Depth | 8-bit |
| Dynamic Range | SDR |
| Parameter | Specification |
|---|---|
| Audio Formats | MPEG-1 Layer II, AC-3, AAC-LC, HE-AAC v1/v2 |
| Dolby Digital Passthrough | AC-3 Passthrough; 5.1 Support |
| Automatic Audio Detection | PCM / Supported Dolby Digital |
| PCM Audio Options | AC-3 Stereo, AAC, MPEG-1 Layer II |
| Listed Audio Bitrate | 192 kbps |
| Input Sampling Rates | 32 / 44.1 / 48 kHz |
| Output Sampling Rate | 48 kHz |
| Parameter | Specification |
|---|---|
| RF Output | 1 × F-Type, 75 Ω |
| Modulation Standards | ATSC 1.0 / J.83B QAM |
| QAM Modes | QAM64 / QAM256 |
| RF Frequency Range | 50–900 MHz |
| RF Output Level | 100 dBµV (30 dB Attenuation Listed) |
| MER | ≥35 dB Typical |
| PSIP/PSI | Automatic Table Generation |
| Transport Stream Identifiers | PMT PID, Video PID, PCR PID, Audio PID |
| Parameter | Specification |
|---|---|
| IPTV Streaming Protocols | UDP / RTP |
| Streaming Modes | Multicast / Unicast |
| NMS Port | 1 × RJ45 Gigabit Ethernet |
| DATA Port | 1 × RJ45 Gigabit Ethernet |
| Ethernet Interfaces | 2 × 1000Base-T |
| Device Management | Web-Based GUI |
| Parameter | Specification |
|---|---|
| Power Supply | AC 100–240 V, 50/60 Hz |
| Dimensions (W × D × H) | 484 × 135 × 44 mm |
| Weight | Approximately 1.15 kg (2.54 lb) |
| Installation | 19-Inch Rack-Mountable Chassis |
| Feature | Status |
|---|---|
| ThoriumIP Automatic Channel Discovery | YES |
| ThoriumIP-BOX Compatibility | YES |
| ThoriumIP-TV Android Application | YES |
| Optional ThoriumIP-CMC Management | YES |

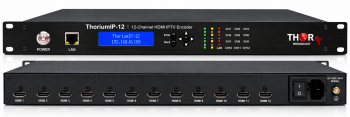

12-Channel HDMI IPTV Encoder with Automatic IPTV Channel Discovery & No Individual Set-Top Box Programming Required
