| Availability: | Check availability | Condition: | new |
|
| Shipping: | starting at $0.00 | Warranty: | 1Yrs |
Connect. Discover. Watch.

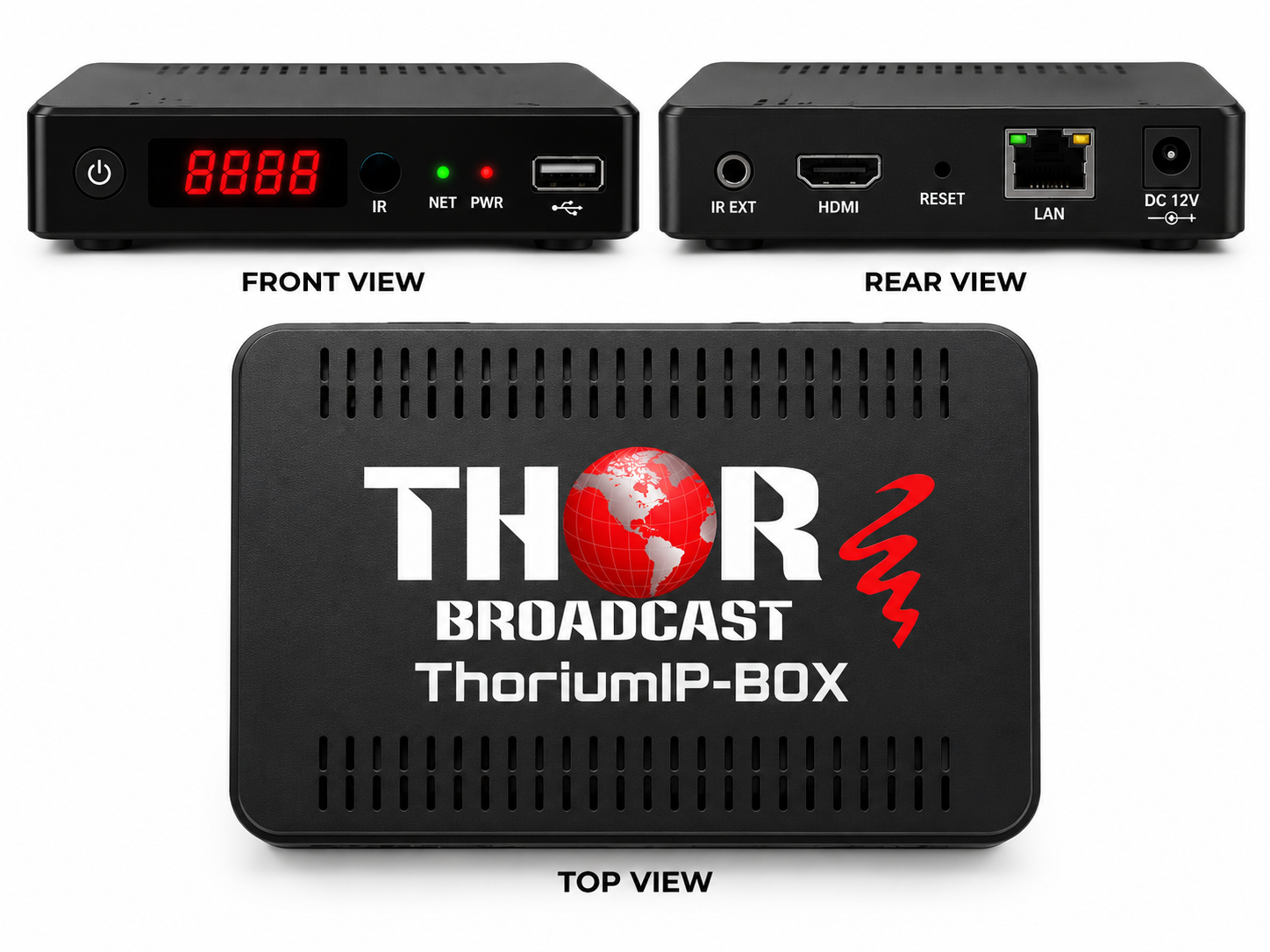

The ThoriumIP-BOX is a professional IPTV set-top box designed to make television distribution simple, fast, and easy to install.
Unlike conventional IPTV receivers that require manual configuration of IP addresses, multicast streams, and IPTV playlists, the ThoriumIP-BOX automatically discovers compatible ThoriumIP channels on the local Ethernet network.
Simply connect the receiver to your network, television, and power supply. Available channels are automatically detected and displayed in an easy-to-use channel list with their assigned names.
No manual stream configuration. No individual set-top box programming. No complicated IPTV setup.
1. Connect to Your Ethernet Network
Connect the ThoriumIP-BOX LAN port to the same local network as your compatible ThoriumIP IPTV encoders.
2. Connect Your Television
Use an HDMI cable to connect the ThoriumIP-BOX to your television.
3. Connect Power
Connect the included compatible 12V power supply and power on the receiver.
4. Automatic Channel Discovery
The ThoriumIP-BOX automatically searches for available IPTV channels from compatible ThoriumIP encoders.
Channel names assigned at the encoder are displayed in the receiver's channel list.
5. Start Watching
Use the included infrared remote control to display the channel list, select a program, adjust volume, and change channels.
It's that simple!
1080P (with display)
Full HD IPTV receiver with 1080p HDMI output and a four-digit front-panel display. An economical choice for hotels, hospitals, offices, and other installations using Full HD televisions.
4K (with display)
4K UHD IPTV receiver with a four-digit front-panel display, designed for installations requiring 4K television playback.
Both models feature automatic channel discovery and are designed to work within the ThoriumIP IPTV ecosystem.
The ThoriumIP-BOX works with compatible ThoriumIP HDMI IPTV encoders, including:
ThoriumIP-12 – 12-Channel HDMI IPTV Encoder
Receive IPTV channels generated from up to twelve independent Full HD HDMI sources.
ThoriumIP-4K – 4K HDMI IPTV Encoder & ATSC/QAM Modulator
Discover and receive compatible IPTV streams generated by the ThoriumIP-4K encoder.
Optional ThoriumIP Central Management
For larger installations, a compatible ThoriumIP central management controller can simplify system administration.
The central management controller is not required for normal IPTV reception or automatic channel discovery.

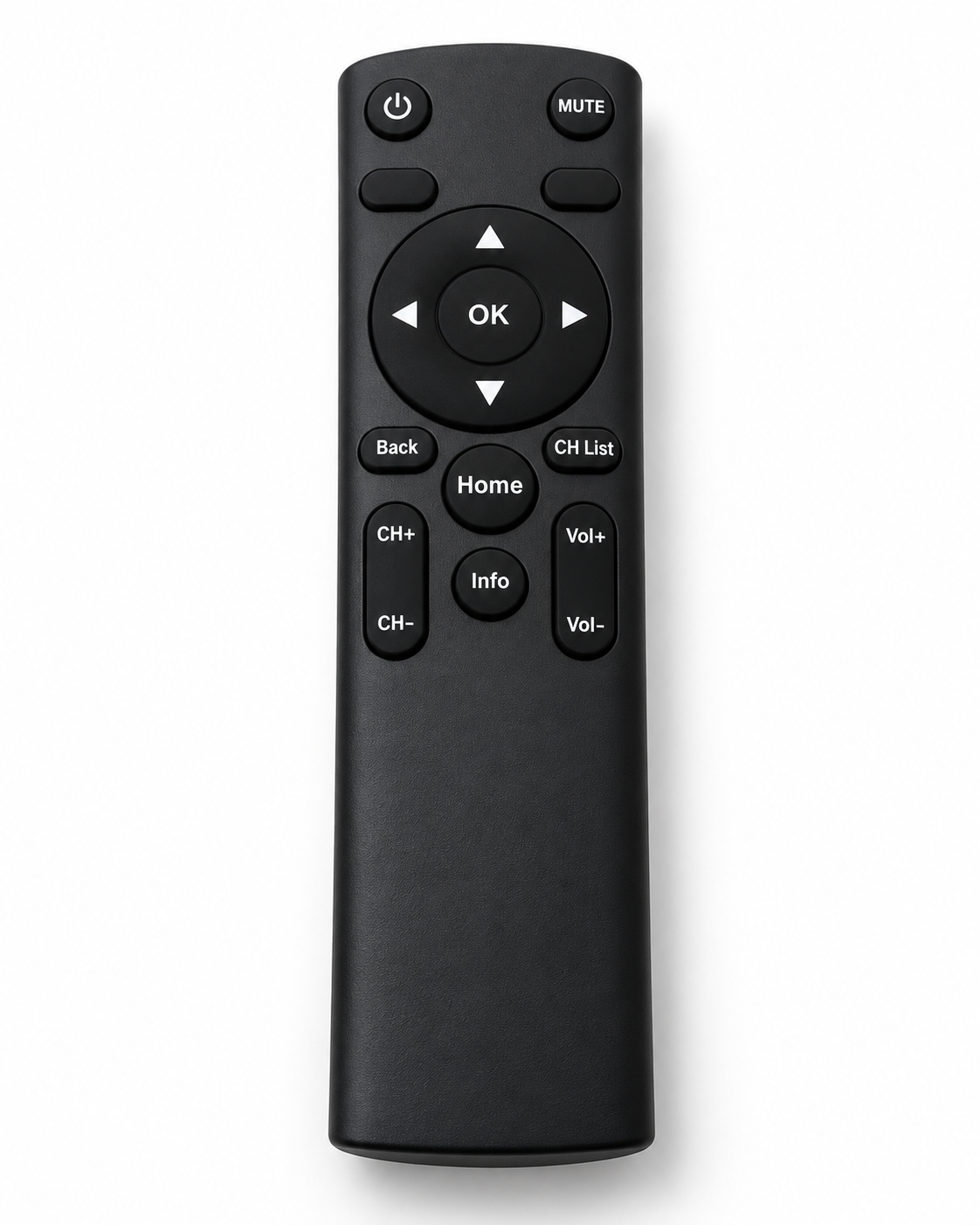

The included infrared remote control provides convenient access to commonly used functions:
Channel list and program selection
Channel up/down
Volume adjustment and mute
On-screen menu navigation
Home screen and back navigation
Program and stream information
The front-panel four-digit display provides convenient local status indication.
Traditional IPTV systems may require technicians to configure every receiver separately, especially in large installations.
ThoriumIP changes that.
Compatible encoders and receivers automatically communicate over the local network, allowing IPTV channels to be discovered without entering individual stream addresses.
This can substantially reduce installation time and simplify the addition or replacement of receivers.
Hotels & Resorts – Provide television channels to guest rooms without individually programming each IPTV receiver.
Hospitals & Healthcare Facilities – Simplify IPTV installation and channel distribution throughout patient rooms and common areas.
Schools & Universities – Receive campus television, educational programming, and live events.
Corporate Offices – Deliver news, company information, and live programming to connected televisions.
Sports Bars & Restaurants – Select from automatically discovered IPTV channels using a familiar remote control.
Commercial & Residential Buildings – Simplify IPTV deployment across multiple rooms and televisions.
ThoriumIP-BOX – No Complicated Configuration. Just Connect and Watch.
Automatic IPTV Channel Discovery – Automatically detects available IPTV channels from compatible ThoriumIP encoders on the local Ethernet network.
No Individual STB Programming – Eliminates manual entry of IPTV stream addresses and playlists on each receiver.
1080P & 4K Models – Choose between Full HD 1080p and optional 4K UHD versions to match your television requirements.
Front-Panel LED Display – Both models feature a four-digit numeric display for convenient local status indication.
Automatic Channel Names – Displays channel names assigned through compatible ThoriumIP encoders.
Multicast & Unicast IPTV Reception – Supports UDP/RTP streaming over compatible Ethernet networks.
Simple HDMI Connection – Connects directly to standard HDMI televisions.
Automatic Network Configuration – Supports DHCP for automatic IP address assignment.
Easy Remote Control Operation – Navigate channels, adjust volume, access channel lists, and view stream information using the infrared remote control.
External IR Receiver Connection – Allows flexible receiver installation using an external infrared receiver.
USB Firmware Updates – Front-panel USB port supports software updates.
Compact Design – Space-saving receiver enclosure suitable for placement near or behind televisions.
Optional Centralized Management – Designed for integration with the ThoriumIP management ecosystem; no central controller required for basic channel discovery.
IR and remote control and power supply included.
ThoriumIP-BOX - IP STB - 1080P (with display)
ThoriumIP-BOX-4K - IP STB - 4K (with display) ( IN development )
|
Parameter |
Specification |
|---|---|
|
Model |
ThoriumIP-BOX |
|
Product type |
Plug-and-Play IPTV Set-Top Box |
|
Standard option |
1080P (with display) |
|
Optional version |
4K (with display) - ThoriumIP-BOX-4K |
|
HDMI output |
1 × HDMI |
|
Output resolution |
1080p or 4K UHD, depending on version |
|
Network input |
1 × RJ45 Ethernet |
|
Network configuration |
DHCP |
|
IPTV reception |
Automatic ThoriumIP channel discovery |
|
Streaming protocols |
UDP / RTP |
|
Transmission modes |
Multicast / Unicast |
|
Channel identification |
Displays discovered channel names |
|
Front-panel display |
Four-digit 7-segment LED |
|
Infrared control |
IR remote control |
|
External IR connection |
Supported |
|
USB interface |
1 × USB, software updates |
|
Firmware update media |
FAT32 USB drive below 16 GB |
|
Reset connection |
Rear-panel reset |
|
Power input |
DC 12 V |
|
Dimensions (W × D × H) |
152.29 × 114.80 × 37.25 mm |
|
Compatible encoders |
ThoriumIP-12 / ThoriumIP-4K |
|
Optional management |
ThoriumIP-CMC - central management ecosystem |
ThoriumIP-CMC Central IPTV Management Controller with Automatic Device Discovery & Remote Management
Opatible devices and allows administrators to manage, configure, and remotely reboot IPTV equipment from one interface. Supports local and remote management with individual or batch device configuration. One Controller. Multiple IPTV Devices. Simple Centralized Management.
12-Channel HDMI IPTV Encoder with Automatic IPTV Channel Discovery & No Individual Set-Top Box Programming Required
Convert up to 12 HDMI sources into Full HD 1080p60 H.264 IPTV streams for distribution over your Ethernet network. Part of the ThoriumIP Plug-and-Play IPTV family, this encoder features automatic channel discovery, allowing compatible ThoriumIP set-top boxes and Android TV applications to find and display available IPTV channels with their assigned names without manually configuring each receiver.Supports UDP/RTP multicast and unicast streaming, MPEG-2, AAC and AC-3 audio encoding, Gigabit Ethernet, DHCP, and web-based management. One Network. No Complicated IPTV Configuration.
