12-Channel HDMI IPTV Encoder with Automatic Channel Discovery

No Individual Set-Top Box Programming Required

Professional IPTV Made Plug-and-Play

Connect. Discover. Watch.

The ThoriumIP-12 is a professional 12-channel HDMI to IP encoder designed to make IPTV distribution simple, efficient, and easy to install.

Connect up to 12 HDMI video sources, including satellite receivers, cable boxes, media players, computers, and other HDMI devices, and convert them into Full HD H.264 IPTV streams for distribution over an Ethernet network.

Unlike traditional IPTV encoders that require manual receiver configuration, the ThoriumIP-12 is part of an intelligent IPTV ecosystem with automatic channel discovery.

Compatible ThoriumIP set-top boxes and Android TV applications automatically detect available IPTV channels and display their assigned names, eliminating the need to enter individual multicast addresses or IPTV playlists on each television.

No individual set-top box programming. No manual stream configuration. No specialized IPTV knowledge required for a typical compatible network installation.

How ThoriumIP-12 Works

1. Connect Up to 12 HDMI Sources

Connect your HDMI video sources to the encoder. Each input can be converted into an independent Full HD IPTV channel.

2. Assign Your Channel Names

Use the encoder's web management interface to assign recognizable names to your IPTV channels.

For example:

Compatible ThoriumIP receivers automatically display the assigned channel names.

3. Connect to Your Ethernet Network

Connect the encoder's Gigabit Ethernet DATA port to your network switch.

The encoder distributes IPTV streams using UDP or RTP over multicast or unicast networks.

4. Connect Your Televisions

Choose between two convenient options:

THORIUMIP-BOX – IPTV Set-Top Box

Connect a ThoriumIP-BOX to a standard HDMI television. The receiver automatically discovers compatible IPTV channels on the local network.

THoriumIP-TV – Android TV Application

Install the free ThoriumIP-TV player application on a compatible Android television. No external set-top box is required.

5. Start Watching

Available channels automatically appear on compatible receivers with their assigned names.

Simply select a channel and start watching.

Why Choose ThoriumIP-12?

Traditional IPTV installations often require configuring each receiver separately, entering multicast IP addresses, maintaining playlists, and manually assigning channel information.

ThoriumIP greatly simplifies this process.

Connect the encoder and compatible receivers to the same properly configured Ethernet network. The receivers automatically discover the available channels and display their assigned names.

For installations using compatible Android televisions, the free THORIUMIP-TV application can eliminate the need to purchase and install additional set-top boxes.

Less Configuration. Faster Installation. Lower Equipment Costs.

ThoriumIP-12 by THOR Broadcast

12 HDMI Sources. Automatic Channel Discovery. Professional Plug-and-Play IPTV.

Key Features and Benefits

12 HDMI Inputs – Encode up to 12 independent HDMI video sources simultaneously using one professional rack-mounted encoder.

Full HD 1080p60 H.264 Encoding – Supports resolutions up to 1920 × 1080p at 60 frames per second, with H.264 compression and resolution downscaling.

Automatic IPTV Channel Discovery – Compatible ThoriumIP receivers automatically find available IPTV channels without manually entering stream addresses or playlists.

Custom Channel Names – Assign recognizable channel names through the encoder's web interface. Connected ThoriumIP receivers automatically display these names in their channel lists.

Android TV – No Set-Top Box Required – The free ThoriumIP-TV application allows compatible Android televisions to receive IPTV channels directly, reducing equipment costs, wiring, and installation time.

Multicast & Unicast Streaming – Supports professional IPTV distribution using UDP and RTP protocols.

Multiple Audio Formats – Supports MPEG-2 Audio, AAC, and AC-3 (Dolby Digital) encoding.

Gigabit Ethernet – 10/100/1000 Mbps Ethernet DATA port for reliable IPTV distribution.

DHCP & Web Management – Supports automatic network configuration through DHCP and convenient web-based encoder management.

Optional Central Management – Compatible with the ThoriumIP-CMC controller for centralized administration of multiple devices.

No Controller Required – Automatic IPTV channel discovery and normal encoder operation work without the optional central management controller.

Ideal Applications

Hotels & Resorts – Distribute live television, satellite programming, and hotel information channels to guest rooms and common areas.

Hospitals & Healthcare Facilities – Deliver television and information channels to patient rooms, waiting areas, and hospital departments.

Schools & Universities – Distribute educational programming, campus announcements, and live events across multiple buildings.

Sports Bars & Restaurants – Distribute multiple HDMI video sources to televisions throughout the facility.

Corporate Offices – Deliver news, company information, and video content over existing Ethernet networks.

Commercial & Residential Buildings – Simplify television distribution across multiple rooms and connected locations.

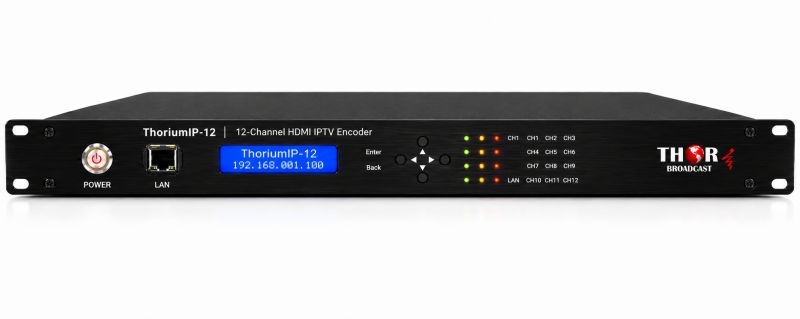

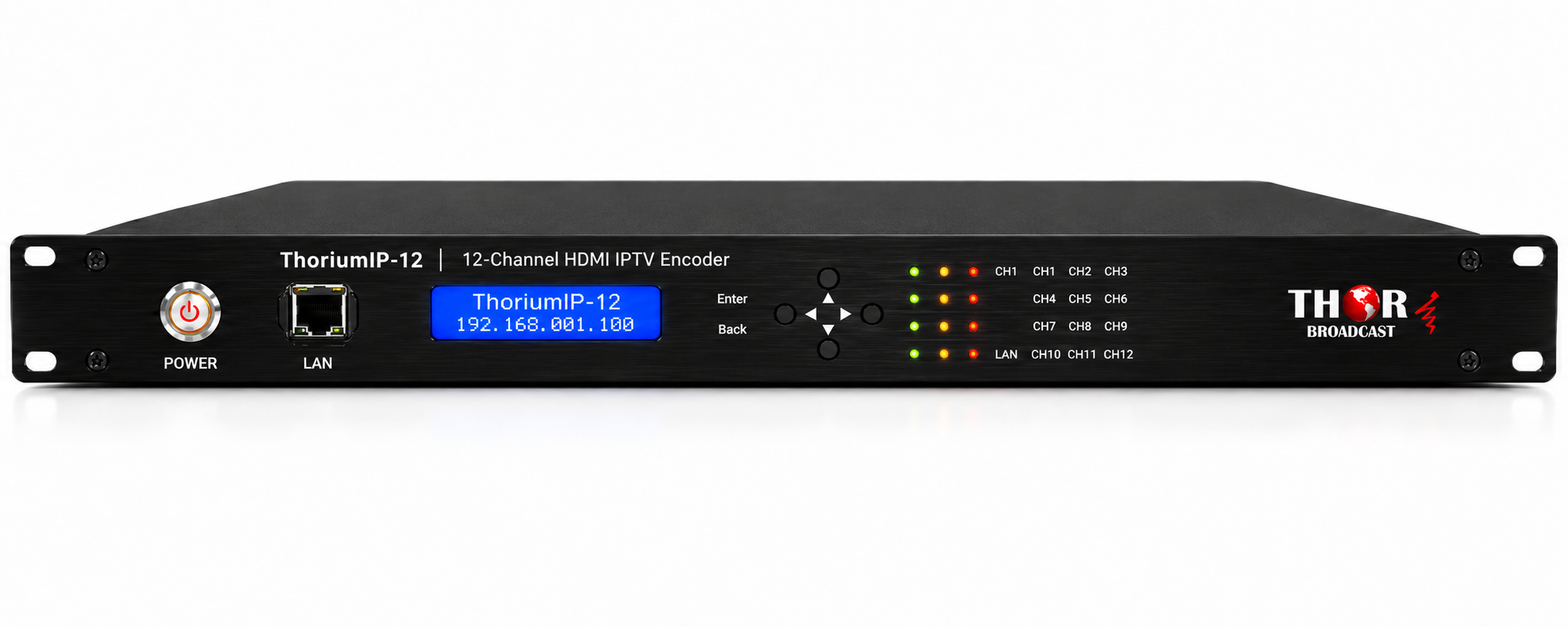

ThoriumIP-12 – 12-Channel Full HD HDMI IPTV Encoder
