SDI fiber extenders revolutionize broadcasting by taking the ability to keep video signals far greater distances without compromising the quality.
Table of Contents
Undeniably, the integrity of the signal for any broadcast or video production over substantial lengths has always presented a big challenge. As technology continues to get better and higher-resolution content increasingly more accessible, traditional copper cables prove grossly inadequate more often than not. It is here that the SDI fiber extenders make their foray, therefore, offering a very reasonable solution with regard to the transmission of video signals over longer distances without loss of quality. A discussion on how SDI fiber extenders work, their advantages, and their benefits in various forms of broadcasting follows.
SDI finds their application in a number of sectors including broadcasting and television, along with filmmaking. A few varieties of SDI include:
While SDI indeed guarantees very high-quality video, traditional coax cables have a number of inherent weaknesses. These can actually transit signals over relatively small distances-up to about 100 meters for HD-SDI-and even smaller distances for higher bandwidths such as 12G SDI. Beyond that range, degradation starts setting in, leading to loss of quality and reliability.
It is where fiber optic technology intervened in the transmission of video signals. While copper cables depend on the basis of electrical signals for transportation, fiber optics depend on the light to carry information. Some of the advantages which accrue from this method include the following:
This maintains a clear signal with no interruption in areas that have an immense amount of electronic equipment.
High Bandwidth: Fiber optic cables support much higher bandwidth. This means that 4K and 8K content, among other signals, are transmitted perfectly without compression.
Signal Conversion: It is here that an SDI fiber extender comes in; it converts the electrical signal into an optical one once the HD-SDI, 3G SDI, or 12G SDI signal is fed inside.
The advantages accruable with an SDI fiber extender lie in their ability to extend the range on a video signal. In case the SDI is converted to an optical signal, the range will go further than it would normally by using copper cables. This simply makes it very handy for everything from live sports broadcasts down to studio setup.
Using fiber optics, the video signal travels uncompressed and uncompressed for very long distances without interference. SDI over fiber extends the integrity of the signal to ensure crisp, clear video with no artifacts or degradation, especially in professional broadcasting, where it should be superb.
The extenders of SDI fiber are flexible in nature and can be installed along with an already installed system quite easily. Be it migrating from HD-SDI to 3G SDI or planning for future migrations to 12G SDI, extenders will support a lot of different formats without changing the infrastructure. This flexibility in scalability for the broadcasters falls in the category of advantages.
Although the initial investment in fiber optic infrastructure is a bit higher than that compared with conventional coaxial systems, there is a long-term saving therein. Fiber optic cables are lighter and require less maintenance when compared to copper cables. Moreover, since it would take only a single fiber line to carry multiple signals, the overall installation and operational expenses become reduced.

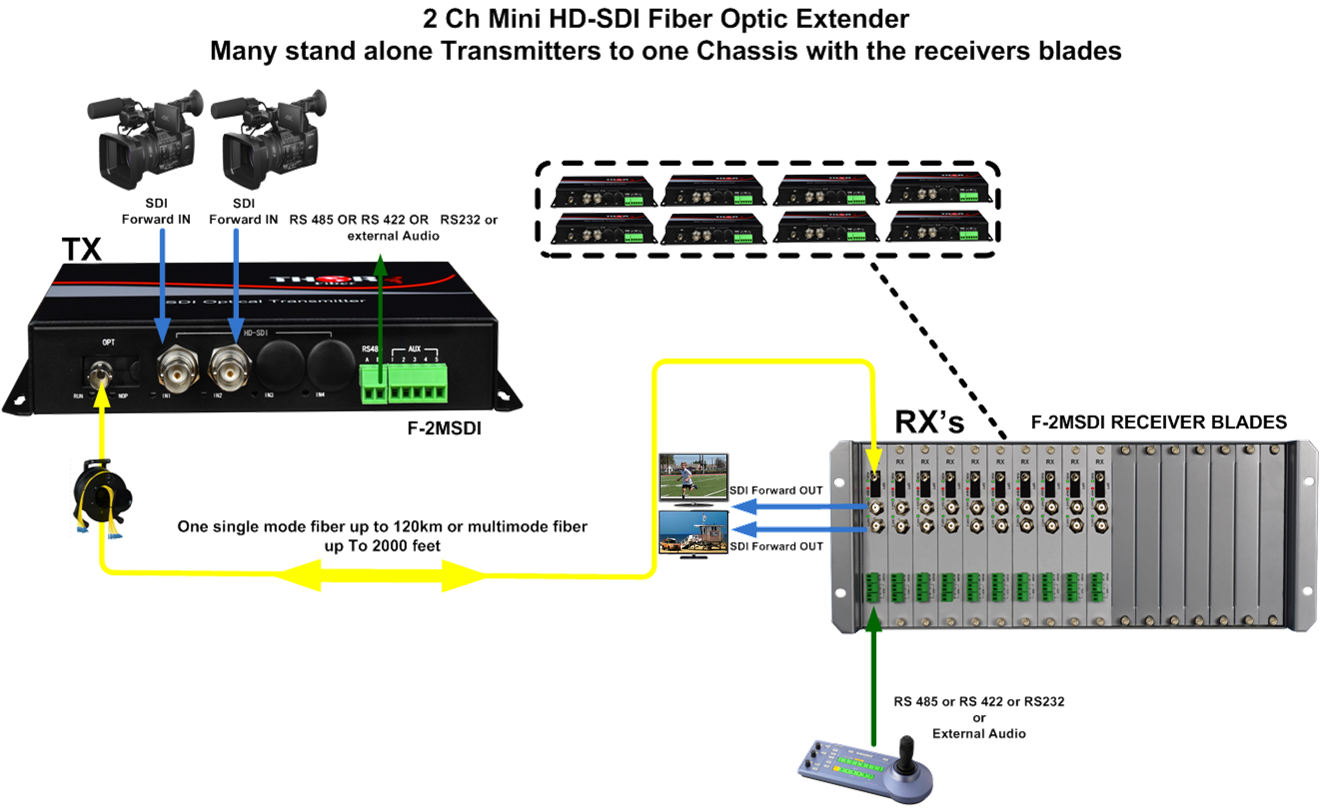

SDI fiber extenders work well with both SDI multiplexers and SDI fiber multiplexers. These are used in the combination of several SDI signals that are transmitted over one fiber optic cable to further enhance efficiency in broadcast operations. An SDI Mux therefore can be used together with the fiber extenders for management of different feeds of cameras by a broadcaster without the complication of many cable runs.
Among the most important applications involving the SDI fiber extender is in live event broadcasting. Quite often, many cameras are used in stadiums and concert halls, very often being kept far away from the production truck or a control room. SDI fiber extenders support the dependable transmission of high-quality video feeds of these cameras back to the control room for complete coverage of the event.
The cameras in studio applications are connected to the production equipment by SDI Fiber extenders. Since studios are continuously upgrading and adding more and newer technologies, cable runs will obviously get longer-and a fact that fiber extenders ensure will not degrade signal quality in the slightest.
These SDI fiber extenders also play an important role in the increasing trend of remote production, whereby the controls of broadcasts come from elsewhere rather than the event site. They facilitate the transmission of high-quality video signals from remote locations to central facilities for high-end broadcast productions from distant sites.
In many camera productions-such as a talk show or panel discussion, to name a couple of examples-the SDI fiber extenders easily integrate a number of video feeds into one. Combined with just a few multiplexers, several camera angles and sources can be handled with ease for a production.
SDI fiber extenders revolutionize broadcasting by taking the ability to keep video signals far greater distances without compromising the quality. They are designed to convert the SDI signal into optical format and, therefore, enable broadcasters to maintain the integrity of their video feeds to ensure sharp, high-definition content for their viewers.
As the industry continues to evolve, SDI fiber extenders will need to be integrated into the workflow in order to meet the demands of high-quality content delivery. Be it broadcasting of events, studio productions, or remotely set-up tasks, SDI fiber extenders ensure reliability, flexibility, and scalability to be enrooted in today's broadcasting. Keeping this in mind, one is moving not a step but a leap into video transmission.
