| Availability: | In stock | Condition: | new |
|
| Shipping: | starting at $0.00 | Warranty: | 5Yrs |

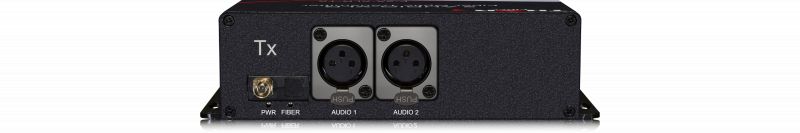

The Thor Fiber AES/EBU Audio Over Fiber Converter is a professional solution for transporting AES3 digital audio over fiber optic cable across long distances with zero signal degradation. Designed for high-performance applications, it enables interference-free digital audio transmission, eliminating ground loops and extending balanced audio links far beyond the limitations of traditional copper cabling.
Fully compliant with AES3, IEC60958, S/PDIF, and EIAJ CP1201 standards, this AES/EBU audio over fiber system ensures reliable, broadcast-quality performance for broadcast, pro AV, stadiums, houses of worship, studios, and mission-critical installations.
Engineered for simplicity and reliability, the system features plug-and-play operation, real-time LED status monitoring, and a rugged design built for continuous 24/7 operation. The fiber optic audio converter supports single-mode fiber transmission up to 20 km, with extended-distance options available for long-haul applications.
Supports AES3 / IEC60958 / S/PDIF / EIAJ CP1201
Supports 16-bit / 18-bit / 20-bit / 24-bit audio word lengths
Sampling rate support from 28 kHz to 192 kHz
Ultra-low jitter clock recovery with automatic jitter conditioning
High input jitter tolerance for stable real-world sources
Single Mode and Single Fiber transmission for easy throw down distribution
Status LEDs for power and fiber link monitoring
No software required (true plug-and-play operation)
Available in multiple channel counts for scalable systems
Broadcast and TV production facilities
Stadiums, arenas, and live event venues
Hotels, campuses, and enterprise AV networks
Houses of worship audio distribution

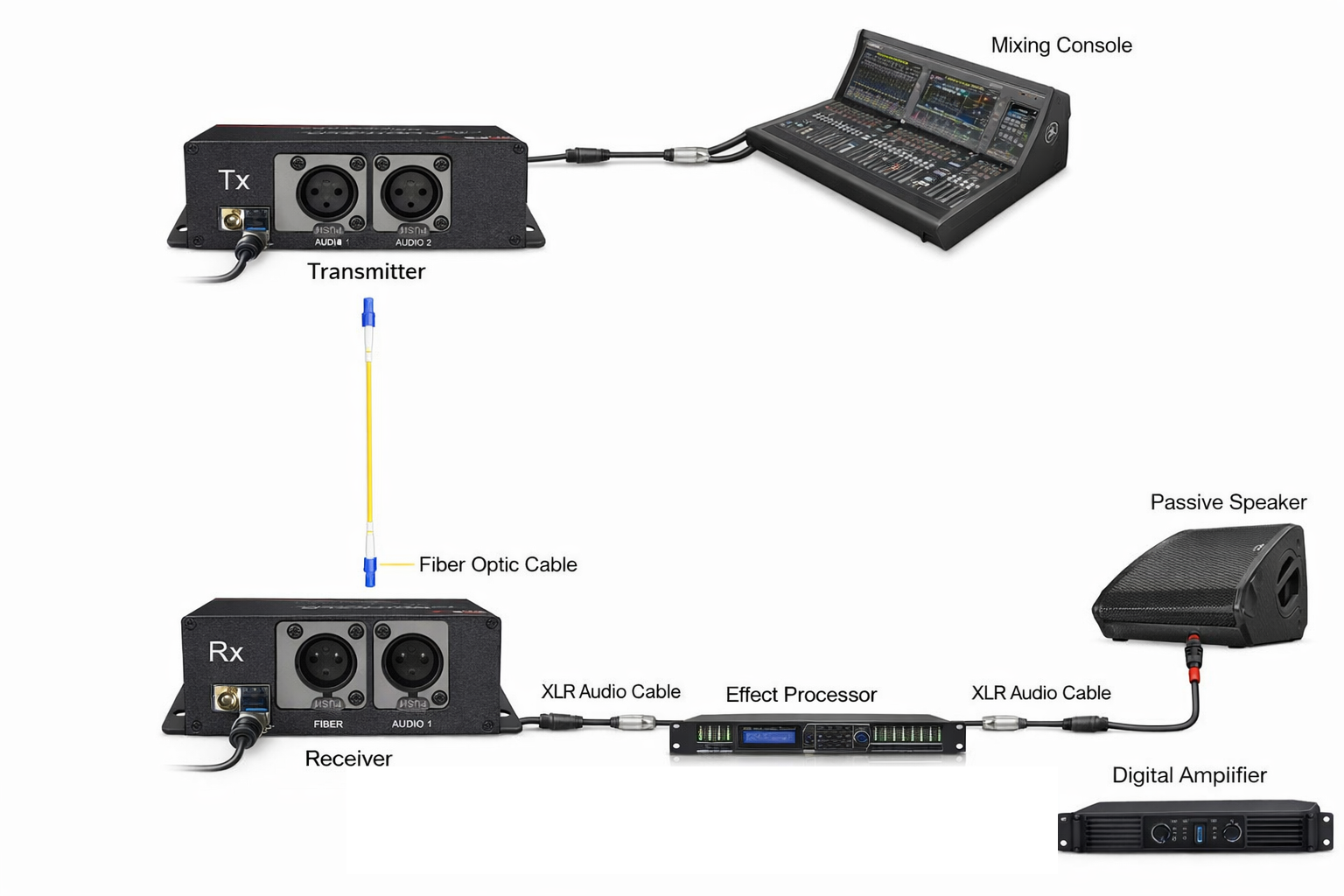

Remote audio transport between racks / buildings
Audio bridging where copper introduces noise or distance limitations
| Thor Fiber Part Number | Configuration |
|---|---|
| F-2AES-TX/RX | 2-Channel Forward AES/EBU Digital Audio Fiber Converter (Pair) |
| F-4AES-TX/RX | 4-Channel Forward AES/EBU Digital Audio Fiber Converter (Pair) |
| F-8AES-TX/RX | 8-Channel Forward AES/EBU Digital Audio Fiber Converter (Pair) |
| F-16AES-TX/RX | 16-Channel Forward AES/EBU Digital Audio Fiber Converter (Pair) |
| Thor Fiber Part Number | Configuration |
|---|---|
| F-2AES-B-TX/RX | 2-Channel Bidirectional AES/EBU Digital Audio Fiber Converter (Pair) |
| F-4AES-B-TX/RX | 4-Channel Bidirectional AES/EBU Digital Audio Fiber Converter (Pair) |
| F-8AES-B-TX/RX | 8-Channel Bidirectional AES/EBU Digital Audio Fiber Converter (Pair) |
Note: Units are supplied as a matched Transmitter + Receiver pair, unless otherwise specified.
| AES/EBU (AES3) over Fiber – Specifications | |
|---|---|
| Fiber Parameters | |
| Wavelength | 1310nm & 1470nm~1610nm (selected according to device function) |
| Transmitter Optical Power | -3 ~ -7 dB |
| Receiver Sensitivity | > -24 dB |
| Fiber Connector | ST/PC Single-mode (standard) |
| AES/EBU Digital Audio (AES3) – Detailed I/O | |
| Standard / Compliance | AES/EBU under AES3-1992 (ANSI S4.40-1992, IEC 958). AES3 is a professional digital audio interface typically carrying 2 channels of PCM audio (stereo) per AES3 stream over 110Ω balanced twisted pair. |
| Transmission Direction | 1 or 2 Ways (Forwards & Backwards) - Model Dependent Supports bidirectional transport so both ends can send/receive AES3 concurrently (depending on model/channel configuration). |
| AES/EBU Audio Input | |
| Number of Channels | 2 Ch – 16Ch -1 Way / 2-8ch -Bi-directional |
| Input Connector | XLR (female) |
| Input Impedance | 110 Ω (balanced) |
| Max Input Voltage | 3.3 V |
| Supported Sampling Frequency | 20 kHz ~ 216 kHz |
| AES/EBU Audio Output | |
| Number of Channels | 2 Ch or 1 Ch |
| Output Connector | XLR (male) |
| Output Impedance | 110 Ω (balanced) |
| Typical Output Voltage | 3.3 V |
| Supported Sampling Frequency | 20 kHz ~ 216 kHz |
| Jitter | < 0.005 UI p-p |
| Rise/Fall Time | < 25 ns |
| Audio Parameters (General) | |
| Dynamic Bandwidth | 140 dB |
| Total Harmonic Distortion (THD) | -120 dB |
| Sampling Frequency | 192 kHz |
| Audio I/O Impedance | 110 Ω balanced |
| Max Audio I/O Voltage | 2 ~ 7 V |
| Audio Physical Interface | XLR female connector (transmitter) XLR male connector (receiver) |
| Power Parameters | |
| Input Power Requirements | DC 5V @ 2A |
| Power Adapter | AC 90V ~ 240V |
| Power Consumption | < 5 W |
| Desktop Type (Alt. Power Spec) | DC 12V 1A |
| DC Power Connector | 5.5 × 2.5 mm (DC5525) |
| Power Dissipation (Alt.) | < 2 W |
| Rack-mounted Type (Alt. Power Spec) | AC 110 ~ 240V, 50/60Hz |
| Rack Power Interface (Alt.) | 3-pin shape base |
| Overload Current Protection | Support |
| Electrical & Mechanical | |
| Stand-Alone Dimensions | 168 mm × 154 mm × 45 mm |
| Shipping Weight | (Transmitter + Receiver) 2.0 kg |
| Environmental & Reliability | |
| Operating Temperature | -20°C ~ +75°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| Working Lifetime / MTBF | > 100,000 hours |
| Notes (AES over Fiber): • AES/EBU (AES3) is a digital audio interface; the device transports the AES3 bitstream over optical fiber for long-distance, EMI-immune links. • 110Ω balanced XLR AES3 is commonly used in broadcast and pro-audio for reliable digital audio distribution. • Jitter spec (<0.005 UI p-p) indicates very stable clock/data recovery, important for downstream AES receivers and audio integrity. |
|
