| Availability: | In stock | Condition: | new |
|
| Shipping: | starting at $0.00 | Warranty: | 5Yrs |
| Thor Fiber Part Number | Configuration |
|---|---|
| F-2AES-TX/RX | 2-Channel Forward AES/EBU Digital Audio Fiber Converter (Pair) |
| F-4AES-TX/RX | 4-Channel Forward AES/EBU Digital Audio Fiber Converter (Pair) |
| F-8AES-TX/RX | 8-Channel Forward AES/EBU Digital Audio Fiber Converter (Pair) |
| F-16AES-TX/RX | 16-Channel Forward AES/EBU Digital Audio Fiber Converter (Pair) |
| Thor Fiber Part Number | Configuration |
|---|---|
| F-2AES-B-TX/RX | 2-Channel Bidirectional AES/EBU Digital Audio Fiber Converter (Pair) |
| F-4AES-B-TX/RX | 4-Channel Bidirectional AES/EBU Digital Audio Fiber Converter (Pair) |
| F-8AES-B-TX/RX | 8-Channel Bidirectional AES/EBU Digital Audio Fiber Converter (Pair) |
Note: Units are supplied as a matched Transmitter + Receiver pair, unless otherwise specified.
Supports AES3 / IEC60958 / S/PDIF / EIAJ CP1201
Supports 16-bit / 18-bit / 20-bit / 24-bit audio word lengths
Sampling rate support from 28 kHz to 192 kHz
Ultra-low jitter clock recovery with automatic jitter conditioning
High input jitter tolerance for stable real-world sources
Single-fiber transmission options (depending on model)
Status LEDs for power and fiber link monitoring
No software required (true plug-and-play operation)
Available in multiple channel counts for scalable systems
Broadcast and TV production facilities
Stadiums, arenas, and live event venues
Hotels, campuses, and enterprise AV networks
Houses of worship audio distribution
Remote audio transport between racks / buildings
Audio bridging where copper introduces noise or distance limitations
| Thor Fiber Part Number | Configuration |
|---|---|
| F-2AES-TX/RX | 2-Channel Forward AES/EBU Digital Audio Fiber Converter (Pair) |
| F-4AES-TX/RX | 4-Channel Forward AES/EBU Digital Audio Fiber Converter (Pair) |
| F-8AES-TX/RX | 8-Channel Forward AES/EBU Digital Audio Fiber Converter (Pair) |
| F-16AES-TX/RX | 16-Channel Forward AES/EBU Digital Audio Fiber Converter (Pair) |
| Thor Fiber Part Number | Configuration |
|---|---|
| F-2AES-B-TX/RX | 2-Channel Bidirectional AES/EBU Digital Audio Fiber Converter (Pair) |
| F-4AES-B-TX/RX | 4-Channel Bidirectional AES/EBU Digital Audio Fiber Converter (Pair) |
| F-8AES-B-TX/RX | 8-Channel Bidirectional AES/EBU Digital Audio Fiber Converter (Pair) |
Note: Units are supplied as a matched Transmitter + Receiver pair, unless otherwise specified.
| AES/EBU (AES3) over Fiber – Specifications 2Channel F-2AES-TX/RX | |
|---|---|
| Fiber Parameters | |
| Wavelength | 1310nm & 1470nm~1610nm (selected according to device function) |
| Transmitter Optical Power | -3 ~ -7 dB |
| Receiver Sensitivity | > -24 dB |
| Fiber Connector | ST/PC Single-mode (standard) |
| AES/EBU Digital Audio (AES3) – Detailed I/O | |
| Standard / Compliance | AES/EBU under AES3-1992 (ANSI S4.40-1992, IEC 958). AES3 is a professional digital audio interface typically carrying 2 channels of PCM audio (stereo) per AES3 stream over 110Ω balanced twisted pair. |
| Transmission Direction | 1 Way -2 Ch |
| AES/EBU Audio Input | |
| Number of Channels | 2 Ch |

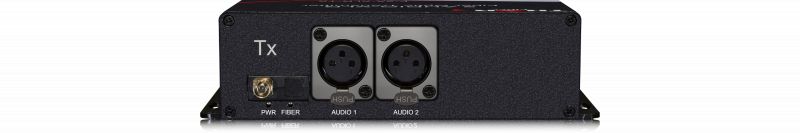

| Input Connector | XLR (female) |
| Input Impedance | 110 Ω (balanced) |
| Max Input Voltage | 3.3 V |
| Supported Sampling Frequency | 20 kHz ~ 216 kHz |
| AES/EBU Audio Output | |
| Number of Channels | 2 Ch or 1 Ch |
| Output Connector | XLR (male) |
| Output Impedance | 110 Ω (balanced) |
| Typical Output Voltage | 3.3 V |
| Supported Sampling Frequency | 20 kHz ~ 216 kHz |
| Jitter | < 0.005 UI p-p |
| Rise/Fall Time | < 25 ns |
| Audio Parameters (General) | |
| Dynamic Bandwidth | 140 dB |
| Total Harmonic Distortion (THD) | -120 dB |
| Sampling Frequency | 192 kHz |
| Audio I/O Impedance | 110 Ω balanced |
| Max Audio I/O Voltage | 2 ~ 7 V |
| Audio Physical Interface | XLR female connector (transmitter) XLR male connector (receiver) |
| Power Parameters | |
| Input Power Requirements | DC 5V @ 2A |
| Power Adapter | AC 90V ~ 240V |
| Power Consumption | < 5 W |

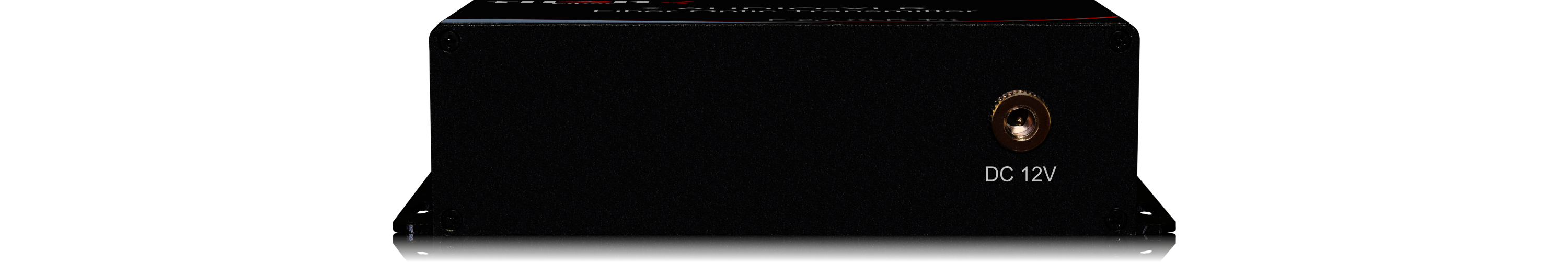

| Desktop Type (Alt. Power Spec) | DC 12V 1A |
| DC Power Connector | 5.5 × 2.5 mm (DC5525) |
| Power Dissipation (Alt.) | < 2 W |
| Rack-mounted Type (Alt. Power Spec) | AC 110 ~ 240V, 50/60Hz |
| Rack Power Interface (Alt.) | 3-pin shape base |
| Overload Current Protection | Support |
| Electrical & Mechanical | |
| Stand-Alone Dimensions | 168 mm × 154 mm × 45 mm |
| Shipping Weight | (Transmitter + Receiver) 2.0 kg |
| Environmental & Reliability | |
| Operating Temperature | -20°C ~ +75°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| Working Lifetime / MTBF | > 100,000 hours |
| Notes (AES over Fiber): • AES/EBU (AES3) is a digital audio interface; the device transports the AES3 bitstream over optical fiber for long-distance, EMI-immune links. • 110Ω balanced XLR AES3 is commonly used in broadcast and pro-audio for reliable digital audio distribution. • Jitter spec (<0.005 UI p-p) indicates very stable clock/data recovery, important for downstream AES receivers and audio integrity. |
|
```
