2 x Gigabit Ethernet + RS-232/RS-485 over Single Fiber - Full Duplex Fiber Converter

F-2GET-RS-A/B
Qty: 0
Price: $ 1,495.00
Availability: In stock Condition: new QR Code 2 x Gigabit Ethernet + RS-232/RS-485 over Single Fiber -  Full Duplex Fiber Converter
Shipping: starting at $22.00 Warranty: 1Yrs
Quantity:
add to basket
ask about product
send request
Description Features Drawings Models Accessories Specification Support

Description

GIGABIT ETHERNET And RS-232 and RS-485 over single fiber Transceiver

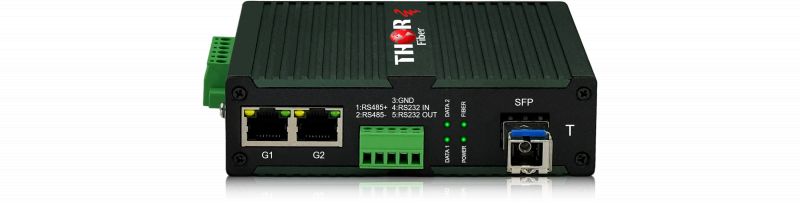

Thor Fiber Multi-Serial (RS-232 / RS-485) + 2 x RJ45 Fiber Optic Converters that transmit a serial protocol over fiber with 2 ports for Ethernet transport.

These units support single-mode and come with SC/PC connectors. The serial port interface is a terminal block connector field wiring.

These units automatically detect the signal baud rate of the connected serial device that ranges from 300bps to 115.2Kbps baud. It also automatically adjusts to changes in the connected device’s bound during operation without reconfiguration or interruption of service.

This unit utilizes WDM optical multiplexing technology. Side A is equipped with a 1310nm transmitter, and Side B with a 11550nm transmitter. A complete setup requires both A and B units (sold as a pair).



Features

          Point-to-Point Bi-Directional Transmission

  • Zero-Delay Automatic Forwarding

  • Transmission over Single (Simplex) Fiber

  • Supports 2 Ports 10/100/1000 Gigabit Ethernet (10BASE-T / 100BASE-TX / 1000BASE-T)

  • 2 x RJ45 Connectors (Managed)

  • RS-232 and RS-485 to Fiber with Automatic Baud Rate Detection

  • Baud Rate: 300bps to 115.2Kbps

  • Protocol: Asynchronous Serial

  • Supports Single-Mode, Single-Fiber with SC Connectors (Simplex)

  • Distance: 20Km standard (40, 80, or 120Km available – model dependent)

  • Hot-Pluggable

  • Mounting Options: Chassis available, Wall-mounted, or DIN-Rail installation

  • Protection: 1500W Surge Protection, 15KV ESD Protection

  • Power Supply: External

  • Operating Temperature: -40°C to +70°C

  • Input Voltage: 9 ~ 48VDC

  • Reverse Polarity Protection

  • Compact Form Factor

EMI, RFI and Transient Surge Immunity

Electromagnetic interference (EMI) is a common phenomenon in typical environments like industrial plants, warehouses and factory floors. This interference can cause corruption of data over serial or copper-based Ethernet links. Data transmitted over fiber optic cable however is completely immune to this type of noise, thus preventing the negative effects of voltage equalization currents and electromagnetic interference on the data cables. A Serial to Fiber Media Converter therefore enables you to inter-connect your serial devices over fiber ensuring optimal data transmission, increased availability of the system, and improved network design.

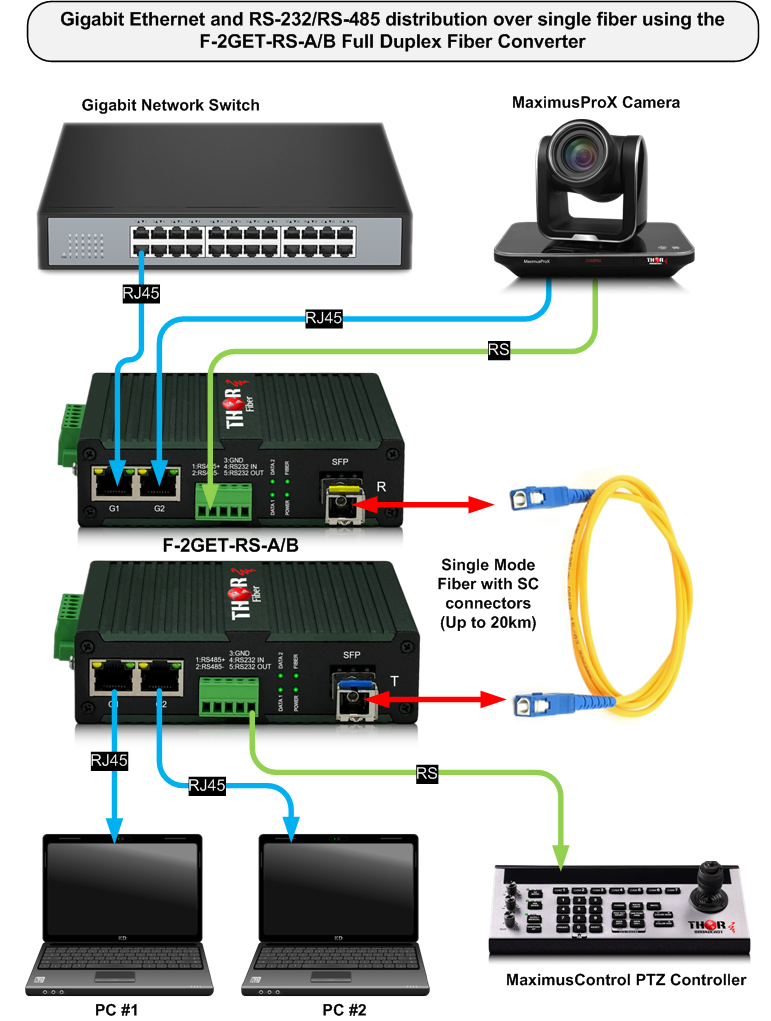

Drawings

Model Selection

Simplex fiber solution - A complete setup requires both A and B units (sold as a pair) - 20Km over single mode fiber

F-2GET-RS-A/B (A/B Link)

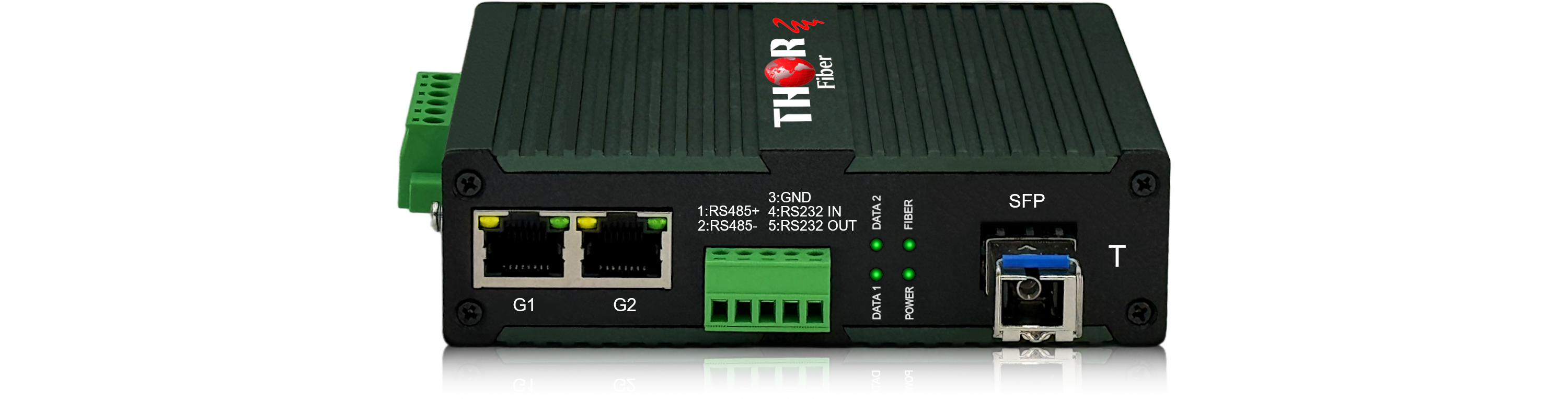

F-2GET-RS-A (A unit) 2 x Gigabit -10/100/1000 Ethernet + RS485 + RS 232 over 1 fiber transceiver fiber SC/PC connector -20Km (1310nm -TX, RX- 15510nm)

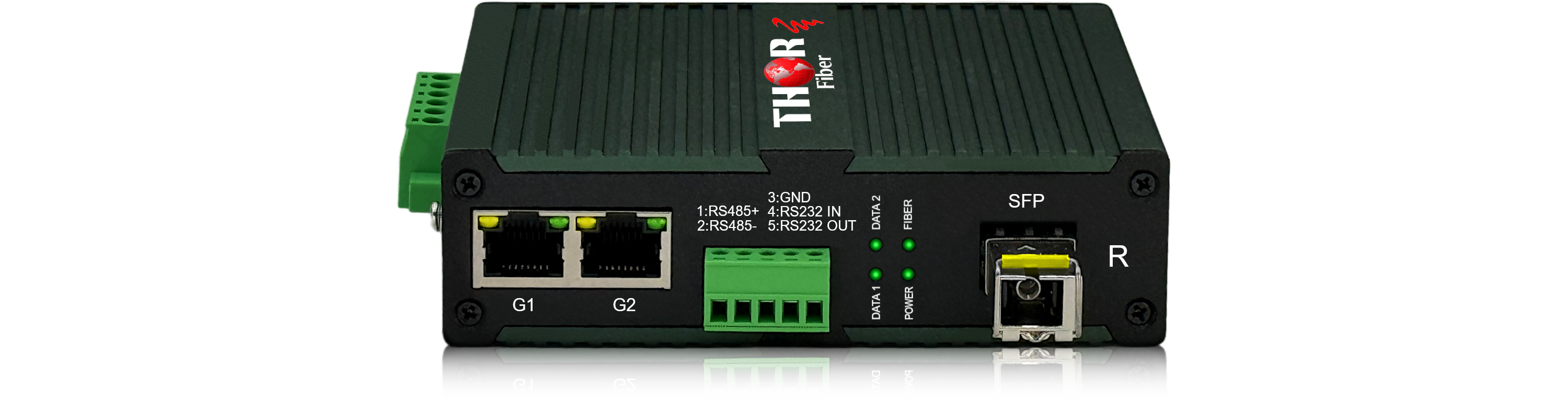

F-2GET-RS-B (B unit) 2 x Gigabit - 10/100/1000 Ethernet + RS485 + RS 232 over 1 fiber transceiver fiber SC/PC connector -20Km (1550nm -TX, RX-1310nm )



XX - Other Optical Distance - 40, 80, 120Km

Accessories & Upgrades

Specification



Physical and Data Link Layer Standards:





10/100/10000 Ethernet

-2  x RJ 45 ports  (G1 and G2)

  •

  • IEEE 802.3 – Ethernet base standard

  • IEEE 802.3u – 100BASE-TX (Fast Ethernet)

  • IEEE 802.3ab – 1000BASE-T (Gigabit Ethernet over Cat5e/Cat6)

  • IEEE 802.3x – Full-duplex support and flow control

  • IEEE 802.3az – Energy Efficient Ethernet (optional on some devices)

  • Auto-negotiation – Automatically detects 10/100/1000 Mbps speed and full/half duplex modes

  • Transport and Application Layer (Passed Through):

  • TCP / UDP – Core transport protocols

  • HTTP / HTTPS – Web-based services

  • FTP / TFTP / SFTP – File transfer

  • DHCP / BOOTP – Dynamic IP address assignment

  • SNMP – Device monitoring and management (if supported)

  • NTP – Time synchronization

  • DNS – Domain name resolution

  • Modbus TCP, BACnet/IP – Common in industrial automation networks

RS data Physical interface

The industry standard - Copper Terminal Block

Interface Signal

RS-232

RS-485

Baud Rate

.Serial port data transparent transmission,baud rate up to 520 kbps

Code Bit Rate

0-1Mbps Typically

BER

< 10 -9

Protocol

Asynchronous Serial

Mode Point to point Bi-directional full duplex

Optical

Fiber Connector

SC/PC- Simlex (SFP stile)

Optical distance

20Km (40,80,120km -model dependent )

Fiber type

Single-mode,  Simlex  (Dual fiber SFP avaiable)

LED Indicators

PWR, TxD, RxD

RS-232 signal

IN, OUT, GND

4-wire RS485 Signal

T+, T-, R+, R-, GND

2-wire RS485 Signal

D+, D-, GND

RS-422 signal

T+, T-, R+, R-, GND ( special order)

Interface protection

1500W surge protection and 15KV ESD protection

Environmental temperature

-30 to +75C

Relative humidity

0-95% ( no condensation)

RoHS Compliant

Yes

Power supply voltage

AC 85-220V

Power  Consumption

2.68W

Power Input

5V DC

                                                                       Dimensions : 4"x5"x1.25"
