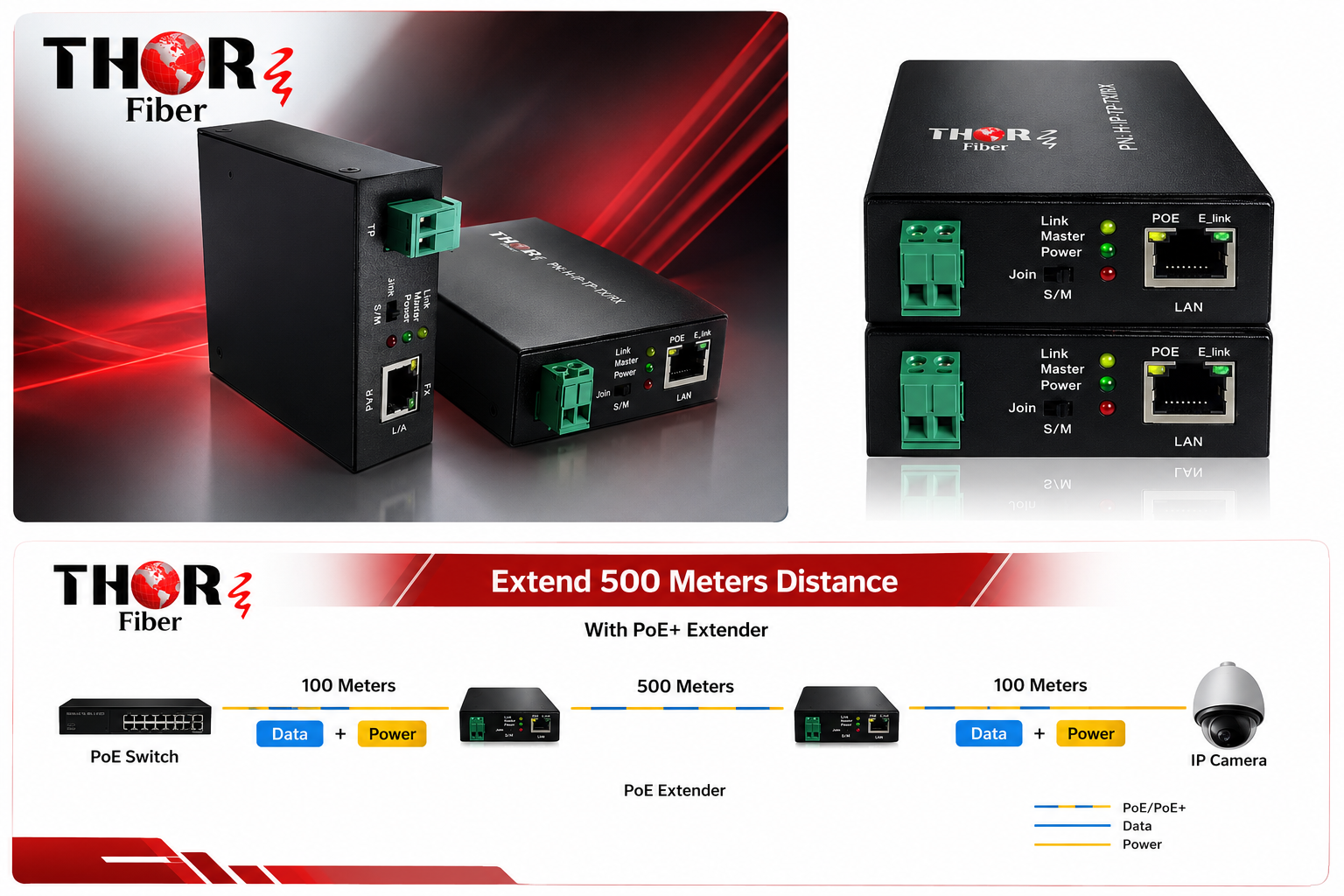

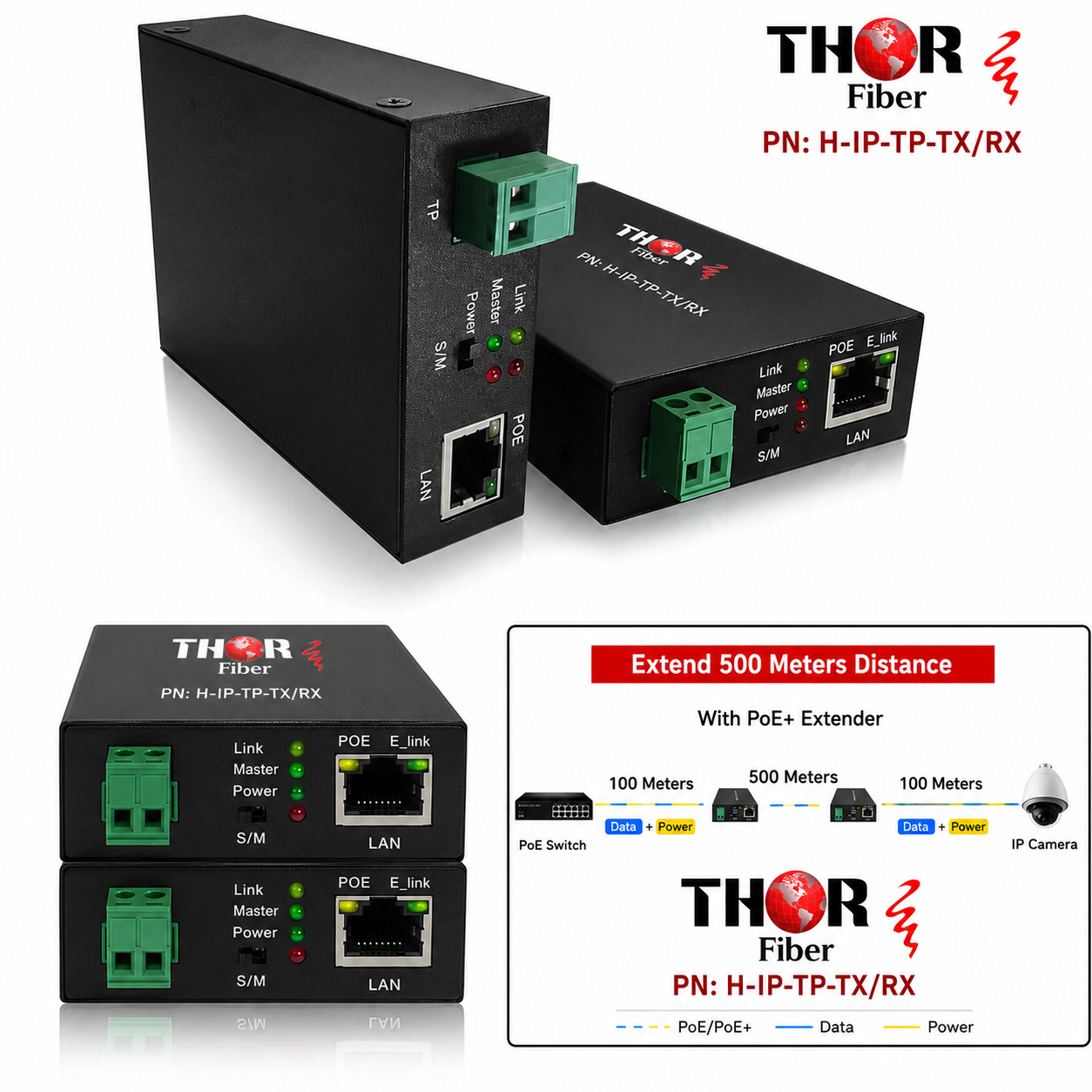

Thor Fiber H-IP-TP-TX/RX is a high-performance IP over 2-Wire Copper Extender with PoE,

Using a single pair of copper wires, telephone cable, twisted pair, or coaxial cable, the system extends 10/100 Ethernet connectivity and PoE to remote devices over distances up to 500 meters (1,640 ft). This makes it an ideal solution for upgrading legacy installations while dramatically reducing installation costs.

The H-IP-TP-TX/RX operates transparently, requiring no software configuration or network programming. Simply connect the transmitter and receiver, and the units automatically establish a reliable Ethernet extension while simultaneously delivering network data and remote power to compatible PoE devices.

Typical applications include security surveillance, industrial automation, transportation systems, access control, building automation, and any installation where existing copper wiring can be reused instead of installing new Ethernet cable.

How It Works

The system consists of a Transmitter (Master) and Receiver (Slave) that communicate over a single pair of copper conductors.

A PoE switch or power supply connects to the local transmitter through a standard RJ45 Ethernet connection. Ethernet data and power are then combined and transported over the existing two-wire cable to the remote receiver. The receiver restores a standard RJ45 Ethernet interface while simultaneously providing PoE power for cameras, wireless access points, IP phones, or other PoE-powered devices.

No IP configuration, software installation, or driver setup is required.

Benefits

• Reuse existing wiring infrastructure
• Eliminate costly cable replacement
• Long-distance Ethernet extension
• Remote PoE power delivery
• Simple plug-and-play installation
• Reliable industrial operation
• Reduced installation time and labor costs
• Ideal for retrofit and modernization projects

Key Features

• Extends 10/100 Ethernet over existing 2-wire copper infrastructure
• Supports transmission over twisted pair, telephone wire, RVV cable, or coaxial cable
• PoE transmission up to 500 m (1,640 ft)
• Supports IEEE 802.3af/at PoE devices
• Delivers up to 30 W PoE
• Physical layer transmission rate up to 240 Mbps
• Actual network throughput up to 90 Mbps
• Plug-and-play operation with no software configuration
• Supports one-to-one and one-to-many deployments
• IGMP multicast compatible
• Built-in ESD and surge protection
• Low power consumption
• Industrial terminal block for secure field wiring
• LED indicators for power, link status, network activity, and PoE status

Applications

The H-IP-TP-TX/RX is ideal for extending Ethernet and PoE where existing wiring already exists, including:

• IP Security Camera Systems
• Elevator Surveillance
• Access Control Systems
• Building Automation
• Industrial Control Networks
• Parking Facilities
• Warehouses
• Smart Buildings
• Transportation Systems
• Remote PoE Device Installation
• Factory Automation
• Campus Security Networks

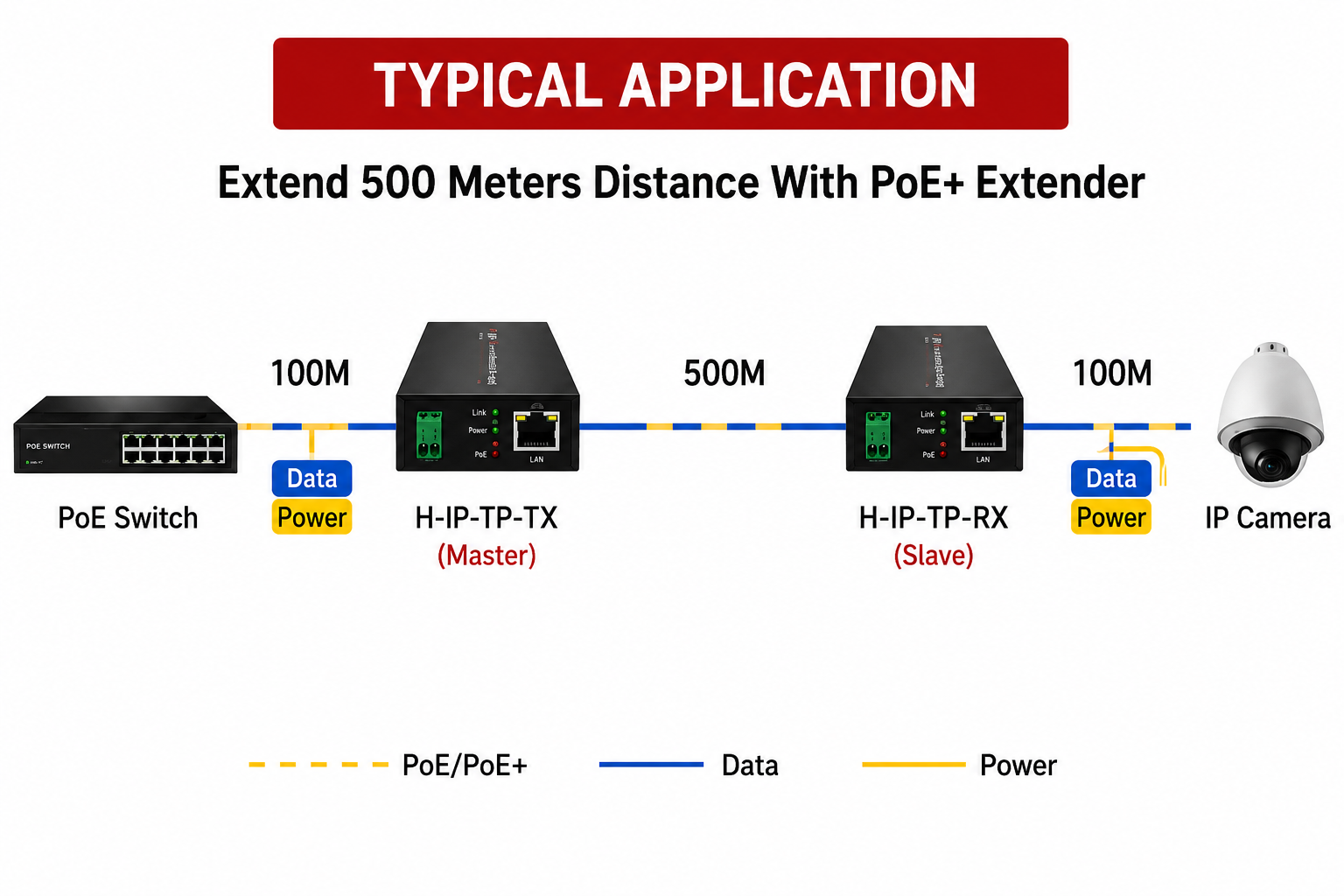

H-IP-TP-TX/RX unit is hardware configurable and can operate as either a Master (TX) or Slave (RX)

• PoE Network Switch
• H-IP-TP-TX (Master)
• Existing 2-Wire Copper / Telephone / Twisted Pair / Coax Cable
• H-IP-TP-RX (Slave)
• PoE IP Camera, Wireless Access Point, IP Phone, or Other Ethernet Device
