4-Channel 4K IPTV Video Decoder ? HDMI, SDI, VGA, CVBS | H.265

Description

Deliver crisp, ultra-high-definition video with our 4-Channel 4K Multi-Format IP Video Decoder. Designed for professional-grade performance, this 1U rack-mounted decoder supports decoding of H.265/H.264 streams from RTMP, RTSP, UDP, HTTP, HLS, and FLV protocols. Whether you're integrating with an IP encoder or media server, this unit offers seamless decoding and outputs simultaneously via HDMI, SDI, VGA, CVBS, and stereo L/R audio.

With its compact form factor and high-density channel support, it’s ideal for live broadcast centers, digital signage networks, security monitoring, and streaming applications that demand reliability and flexibility.

Applications

IPTV Headends
Digital Signage Playback
CCTV Monitoring Systems
Live Streaming and Event Broadcasting
Hotel and Hospitality AV Distribution
Control Room and Command Centers
Stadium and Venue Media Decoding
Transportation and Public Display Systems

Features

Multi-Channel Decoding
Supports up to 4 independent IP video streams, each decoded simultaneously in real-time.
High-Efficiency Codec Support
Compatible with H.265 (HEVC) and H.264 (AVC) compression standards for optimized bandwidth usage.
Multiple Protocol Compatibility
Decodes IP streams via RTMP, RTSP, UDP (TS over IP), HTTP, HLS, and FLV, supporting both unicast and multicast workflows.
Ultra HD Video Output
Each channel supports output resolutions up to 4K UHD (3840x2160) depending on stream parameters.
Multi-Format Output Interfaces
Simultaneously outputs decoded video through:
- HDMI (up to 4K)
- 3G/HD-SDI
- VGA
- CVBS (Composite Video)
- L/R Analog Stereo Audio
Rack-Mountable 1U Design
Professional-grade 1U chassis suitable for 19” equipment racks; optimized for broadcast and enterprise AV environments.
Web-Based Management Interface
Built-in web GUI for configuration, monitoring, IP stream management, firmware updates, and diagnostics.
Low Latency Decoding
Hardware-accelerated decoding ensures minimal delay — ideal for live broadcast and security applications.
High Interoperability
Works seamlessly with third-party encoders, cameras, media servers, and streaming platforms.
Robust Network Interface
Equipped with Gigabit Ethernet (RJ45, 10/100/1000 Mbps) for stable IP stream reception and management access.
Reliable 24/7 Operation
Industrial-grade components and thermal design for continuous operation in demanding environments.
Firmware Upgradeable
Supports remote firmware updates for feature enhancements and protocol expansion (e.g., SRT if supported).

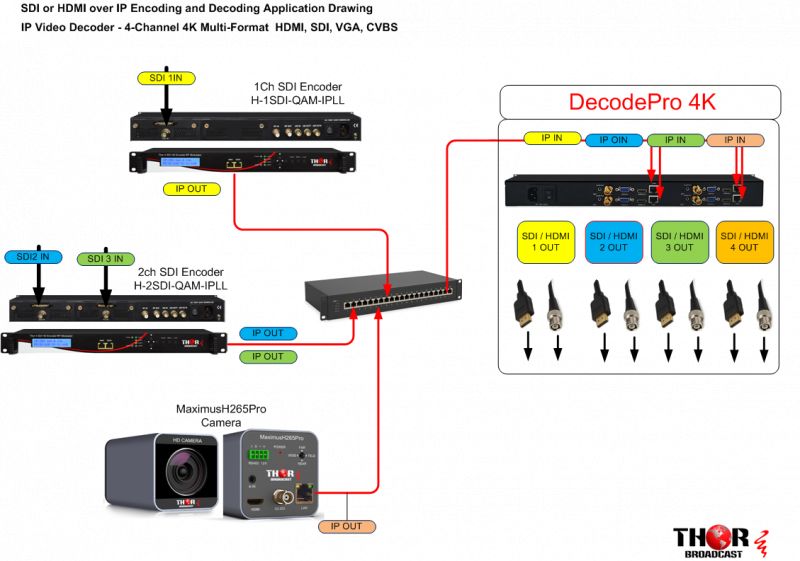

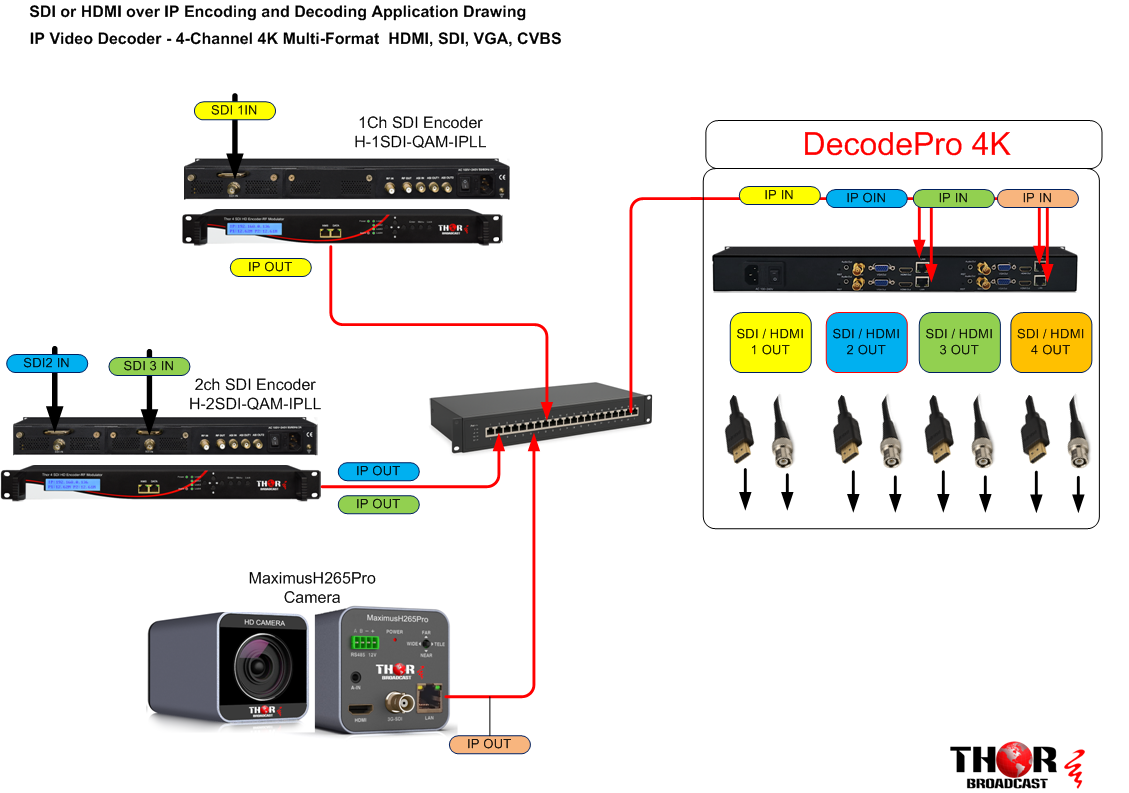

Drawings

Model Selection

DecodePro 4K - Professional 4-Channel 4K IP Video Decoder with HDMI, SDI, VGA & CVBS output

Accessories & Upgrades

Specification

Feature	Details
Video Input	IP Streaming via RTMP, RTSP, UDP, HTTP, HLS, FLV
Decoding Format	H.265 / H.264
Video Outputs	HDMI, SDI, VGA, CVBS
Audio Output	L/R Stereo Analog
Maximum Resolution	4K UHD (3840×2160)
Channels	4 Independent Decoding Channels
Rack Mount	1U Standard Rack-Mountable Enclosure
Network Port	1× RJ45 100/1000M Ethernet
Control Interface	Web GUI (Browser-Based), SNMP, Telnet (optional)
Power Supply	AC 110–240V
Operating Temperature	0°C to +50°C
Dimensions	19" × 1U × Depth (varies)

Question and Answers

Question:

Firstly, to clarify the basic point, this unit is capable of outputting directly to four composite video streams?

What encoding format is used on the CVBS output? Ideally I am after support for both PAL and NTSC.

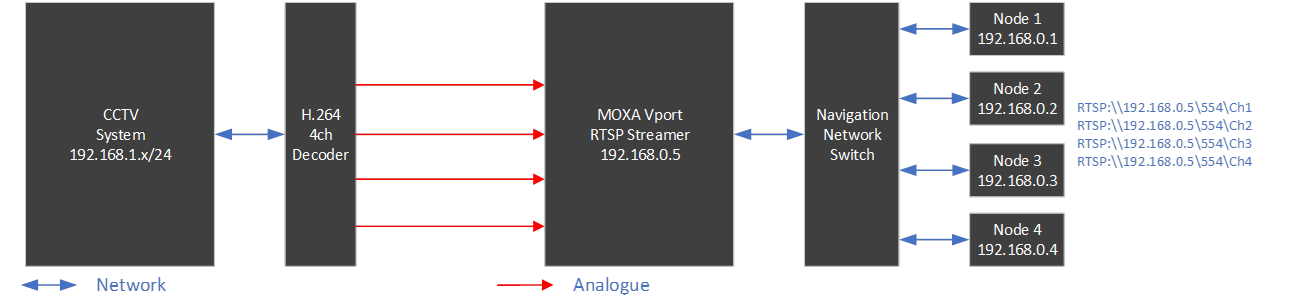

What level of configuration is available with the ethernet connection? Would it be possible to drive all four outputs from a single input IP stream, preferably into a single port on the unit?Beyond the two documents on your website, do you have any further documentation/datasheets for this product?

Could you provide a rough indication for the expected lifecycle of the product - particularly how long it will be in production for?

Answer:

Outputting to four composite video streams-

This unit holds four identical decoder cards. Each card has its own independent IP input and management. While all of them can output CVBS, HDMI, and SDI at the same time, they function independently. Therefore, each card needs to be connected to your network switch.

CVBS encoding format (PAL/NTSC)-

The CVBS output can be manually set to either PAL or NTSC.

Ethernet configuration and single IP stream input

You can use a single UDP multicast stream or difrent streming protocal as a source.

However, since each card is independent, each individual card must be configured to receive that stream and each must be connected to the Ethernet switch.

Additional documentation

As this is a new product, here is the link to the user manual :

https://thorbroadcast.com/upload/files/1258/decodepro-4k-video-decoder-manual-.pdf

Product lifecycle

This is a new product in our lineup, and we do not expect it to reach end-of-life for at least the next 10 years.
