Learn how hotels and motels can distribute local over-the-air television channels over Ethernet. Compare a traditional ATSC-to-IP gateway with THORIUMIP's automatic channel discovery system to choose the right IPTV architecture for your property.
Hotels and motels are increasingly upgrading their networks from traditional coaxial RF cabling to Ethernet-based IP infrastructure. For properties looking to simplify installation, reduce legacy cabling, and deliver local television channels to guest rooms, IPTV offers a flexible alternative to conventional television distribution. THOR Broadcast offers two approaches to hotel IPTV distribution: a dedicated ATSC-to-IP gateway for direct reception of over-the-air television, or a flexible HDMI-to-IP system with automatic channel discovery through the THORIUMIP ecosystem. Both approaches can distribute television programming over a properly configured Ethernet network, making them suitable for hospitality properties, motels, hotels, and other multi-room installations.
Table of Contents
Consider a 30-room motel in Santa Monica, California, replacing an aging coaxial television network with a modern Ethernet infrastructure.
The property wants to continue providing free local over-the-air television channels while allowing guests to use their own smart TV applications, including Netflix and Amazon Prime Video.
The challenge is determining how to distribute local television channels efficiently without rebuilding the old RF network.
Two possible solutions can address this requirement.

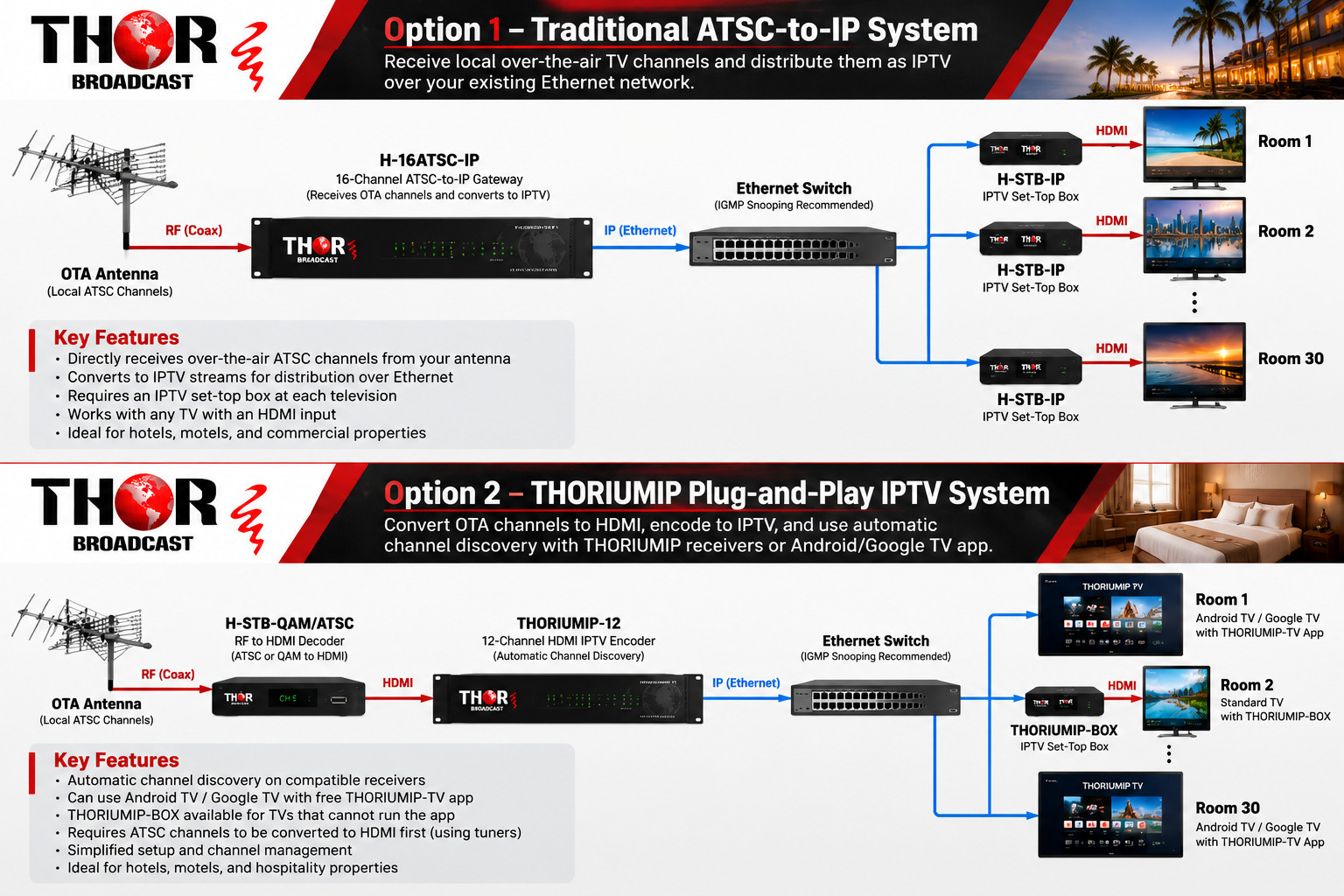

The traditional IPTV approach uses an ATSC-to-IP gateway to receive local broadcast television channels and distribute them as IP streams over the Ethernet network.
H-16ATSC-IP – 16-Tuner ATSC-to-IP Gateway
Receives up to 16 physical ATSC RF channels and converts their programming into IP streams for network distribution. A single RF channel may contain multiple television programs, so the number of available programs can exceed the number of tuners.
View H-16ATSC-IP 16-Tuner ATSC-to-IP Gateway
H-STB-IP – Compact IPTV Set-Top Box
Receives compatible IP video streams over Ethernet and decodes them to HDMI for display on a television. This allows standard HDMI-equipped TVs to display network-delivered television channels.
View H-STB-IP Compact IPTV Set-Top Box
Best for: Properties that primarily need to distribute free local broadcast television over an existing Ethernet network and are comfortable using an external IPTV receiver at each television.
The THORIUMIP ecosystem is designed to simplify professional IPTV distribution through automatic channel discovery and straightforward receiver configuration.
Instead of manually configuring individual stream addresses or playlists on every compatible receiver, THORIUMIP devices automatically discover available channels and display their assigned names.
For over-the-air television applications, ATSC programming must first be converted to HDMI before being fed into the THORIUMIP-12 encoder.
H-STB-QAM/ATSC – RF-to-HDMI Digital TV Receiver
Receives supported ATSC or QAM television signals and converts the selected programming to HDMI. It can be used as an external tuner source when building an HDMI-based IPTV distribution system.
View H-STB-QAM/ATSC RF-to-HDMI Digital TV Receiver
THORIUMIP-12 – 12-Channel HDMI IPTV Encoder
Converts up to 12 HDMI sources into individual Full HD IPTV streams for distribution over Ethernet. It supports automatic channel discovery with compatible THORIUMIP receivers and allows channel names to be assigned through its management interface.
View THORIUMIP-12 12-Channel HDMI IPTV Encoder
THORIUMIP-TV – Free Android TV / Google TV IPTV Application
Allows compatible Android TV and Google TV devices to receive and play THORIUMIP channels directly, eliminating the need for a separate IPTV set-top box on supported televisions.
View THORIUMIP-TV Android TV / Google TV Application
THORIUMIP-BOX – Plug-and-Play IPTV Set-Top Box
Provides IPTV reception for televisions that cannot run the THORIUMIP-TV application directly.
View THORIUMIP-BOX IPTV Set-Top Box
Best for: Hospitality properties looking for a streamlined IPTV deployment, particularly when many televisions support compatible Android TV or Google TV applications.
Important planning note: The THORIUMIP-12 accepts HDMI sources rather than an antenna directly. For multiple OTA programs, the number of required tuners or HDMI sources depends on the channel lineup and source configuration. The THORIUMIP-TV application provides IPTV playback and automatic channel discovery; it is not a fully customizable hotel launcher for directly opening third-party applications such as Netflix or Amazon Prime Video.
| Feature | Option 1: ATSC-to-IP | Option 2: THORIUMIP |
|---|---|---|
| OTA reception | Directly through the ATSC-to-IP gateway | Requires ATSC receivers with HDMI outputs |
| IPTV distribution | Ethernet network | Ethernet network |
| Receiver setup | Configure compatible IPTV receivers as required | Automatic channel discovery on compatible receivers |
| Standard televisions | Requires an IPTV set-top box | Requires a THORIUMIP-BOX if the TV cannot run the app |
| Compatible Android TVs | External receiver is still an option | THORIUMIP-TV can eliminate external receivers |
| Best application | Direct OTA-to-IP distribution | Simplified IPTV deployment with automatic discovery |
Both solutions require appropriate network configuration, sufficient bandwidth, and compatible receiving devices.
Many hotel guests expect to access their own streaming subscriptions while also watching local television.
IPTV distribution and consumer streaming applications are two separate functions.
The proposed THOR Broadcast systems distribute local television programming over the network. Guests can access Netflix, Amazon Prime Video, and other supported applications through the television's own smart TV interface when available.
The THORIUMIP-TV application does not currently combine those third-party applications into one fully customizable hotel menu. Properties that require a branded welcome screen, custom guest interface, centralized hospitality controls, or automatic clearing of guest accounts should evaluate those requirements separately when selecting their television platform.
For properties with mixed television models, an inventory of manufacturers, model numbers, operating systems, and available HDMI inputs is an important first step.
An Ethernet-based television distribution system can use the same general network infrastructure as other IP devices, provided it is designed and configured correctly.
Important considerations include:
A correctly configured multicast network can distribute a common set of television channels to many rooms without requiring a separate copy of every stream for each viewer.
The best solution depends on your existing network, television inventory, channel requirements, and desired guest experience.
Choose the H-16ATSC-IP with H-STB-IP receivers when the main objective is to receive local over-the-air television directly and distribute it as IPTV.
Choose the THORIUMIP ecosystem when simplified channel discovery, reduced receiver configuration, and direct playback on compatible Android TV or Google TV devices are important priorities.
For a property with approximately 30 rooms, both approaches are worth evaluating before finalizing the equipment list.
THOR Broadcast can help determine the appropriate gateway, encoder, receiver configuration, and network requirements based on your actual installation.
Planning an IPTV upgrade for a hotel, motel, resort, or commercial building?
Contact THOR Broadcast with your television inventory, the number of local channels you need, and details of your Ethernet infrastructure to develop a suitable IPTV distribution solution.
