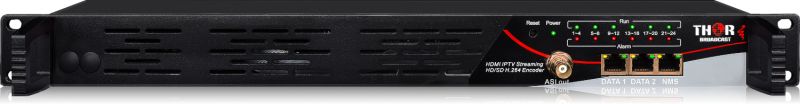

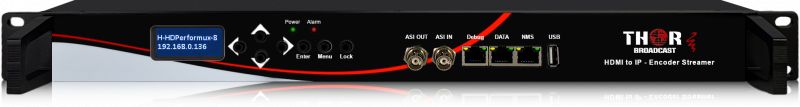

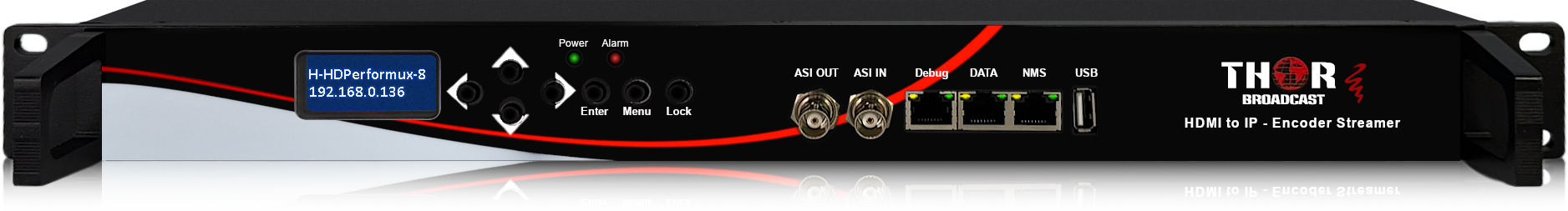

4 / 8 / 16 / 24 HDMI IPTV Streaming H.264 Encoder - UDP, RTP/RTSP - SPTS & MPTS - Multicast & Unicast

H-HDPerformux-8
Qty: 0
Price: $ 4,295.00
Availability: In stock Condition: new
Shipping: starting at $22.00 Warranty: 2Yrs
Quantity:
add to basket
ask about product
send request
Description Features Drawings Video Model Selection Specification Q&A Support
8 HDMI model description
Thor Broadcast High Density H264 Encoder H-HDPerformux, specifically designed and made to handle up to 24 HDMI inputs and output via 1MPTS or 24SPTS.

Description

Thor Broadcast High Density H.264 Encoder H-HDPerformux-XX, specifically designed and made to handle up to 24 HDMI inputs and output via 1MPTS or 24SPTS. This unit has a full functioning GUI (Graphical User Interface) that Thor has designed to help navigate creating all of your H.264 Streams with MPEG 1 Layer 2 Audio or AC3 Audio Passthrough. Additionally you have a single ASI output that will mirror the MPTS output. Specifically featuring the QR code, Logo, and OSD insertion for cable operators that require this feature. Furthermore it has PID remapping, PCR and PSDI adjusting and editing as well. This 1RU unit can replace an entire headend with the high density 24 HDMI input chassis with easy operation and Thor Broadcast's leading warranty and free tech support from our lab in Los Angeles.

Features

  • 4 / 8 / 16 / 24 HDMI inputs
  • MPEG-4 AVC/H.264 Video encoding
  • 1 Gigabit Output for UDP and RTP/RTSP protocols
  • 1-20Mbps output data per IP Stream
  • MPEG1 Layer II Audio encoding and support audio gain adjustment
  • MPEG-1 Layer 2, LC-AAC, HE-AAC, AC3 Passthrough audio encoding
  • Control via web management, and easy updates via RJ45
  • 1ASI output, copy of MPTS output
  • CBR / VBR
  • QR Code, Logo, OSD insertion
  • Null Packet Filter
  • PID Remapping (180 inputs per channel)
  • PCR Adjusting
  • PSI/SI Editing and Insertion
  • Exceptional Price Per Channel

Drawings

Video

Product Video
Quick configuration Guide for H-HDPerformux- 8/16/24
H-HDPerformux-XX is an affordable high density H.264 Multi-channel IP encoder. The HDMI HDCP enabled IPTV Streaming HD encoder & integrated multiplexer is a 1RU platform. Outputs up to 24 SMPTS' UDP or RTP(RTSP), 1MPTS, encodes HD video from any HDMI source into IPTV streams. The encoding video rate is adjustable from 1-20Mbps

Model Selection

Model Numbers

H-HDPerformux-4  4 channel HDMI to IP H.264 Encoder Streamer

H-HDPerformux-8  8 channel HDMI to IP H.264 Encoder Streamer

H-HDPerformux-16  16 channel HDMI to IP H.264 Encoder Streamer

H-HDPerformux-24  24 channel HDMI to IP H.264 Encoder Streamer

IPTV encoders are a valuable piece of infrastructure to transmit multiple channels or programs over a LAN easily, and generally in H264. However, it is essential that you use a decoding apparatus like an IP-STB here that can receive those programs via IP addresses in H264 and output that signal via HDMI so a television or screen can receive them.

Our Encoders can be used with our IP STB's ( set-top Boxes ) - IP to HDMI decoders

Example H-STB-IP

Specification

Input

4/8/16/24 HDMI inputs

Video

Resolution

Input

1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P

Output

1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P

Encoding

MPEG-4 AVC/H.264

Bit-rate

0.5Mbps~20Mbps each channel

Rate Control

CBR/VBR

GOP Structure

25-50

Audio

Encoding

MPEG-1 Layer 2, LC-AAC, HE-AAC, AC3 Passthrough

Sampling rate

32, 44.1, 48KHz

Resolution

24-bit

Audio Gain

0-255 Adjustable

Bit-rate

48/56/64/80/96/112/128/160/192/224/256/320/384Kbps

Multiplexing

Maximum PID

Remapping

180 output PIDs per channel

Function

PID remapping (automatically or manually)

Accurate PCR adjusting

Stream output

ASI output(optional) as copy of MPTS IP output thru Data1 (GE) or Data2 (FE) over UDP and RTP protocol (8 HDMI inputs with 8 SPTS and 1MPTS output; 16/24 HDMI inputs with 16/24 SPTS or 1MPTS output)

System function

Network management (WEB)

English

Ethernet software upgrade

Miscellaneous

Dimension (W×L×H)

482mm×440mm×44mm (1RU)

Approx weight

8kg

Environment

0~45C(operating) -20~80C Storage

Power requirements

AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz





Question and Answers

Answer:
1)So the TV's all require RF coaxial cable correct? How many channels total? What is going to be the source of those channels, commercial set-top boxes? 2) We have various formats and options for RF modulation. Please let me know what is the standard that you require: QAM, ATSC, ISDBT, DVBT, etc Mpeg 2 or H264? 3) So you plan on putting an IPTV set-top box on every television? For IP input and HDMI output correct? For 24 channels you plan on using H264 compression? So, in this case the best product would be 24 HDMI H.264 MPEG4 Encoder H-HDPerformux-24, it encodes 24 HDMI sources for 24 SMPT's Multicast TS UDP streams. The IP STB will receive the streams and display them as an HDMI Video output, Those channels will be programmed into the IP STB and using the remote control you will access all your 24 TV programs on each STB on the network. This is the link to the IP-STB https://thorbroadcast.com/es/producto/compacto-ip-del-decodificador-set-top-box.html
Answer:


Hello, we only have HEVC H.265 with HDMI inputs right now
would you use something like this with converters?
H-HDPerformux-4+ 4 channel HDMI to IP HEVC H.264&H.265 Encoder Streamer
You could potentially use converters so long that they would be compatible with all the needs of transmitting data.
I assume you have 3GSDI feeds?
yes
so you'd have to make sure the converter can do 3G and HDMI to 1080p60
Even then, no telling if that would effect the unit
as far as timing? frame loss?
yeah all that. because a lot of those 3rd party converters will take short cuts to work, but not exactly a professional solution
so its a coin flip honestly.
so buy the cheapest converter I can find
so no encoders with native SDI input?
There might be some on the market, but we only have HDMI input models avaialble
They work really well, we just sold a ton of 24 HDMI input models, super high density

Answer:
So, if I understand correctly, your consumer would like to use the Coaxial network, not the IP network to distribute the video?
We will be happy to talk about all the technical aspects of the project and advise the best solution, we can provide modulators if needed.
please check those units :
4 channel HDMI to COAX
8 channel HDMI  to Coax
or both
4Channel HDMI to COAX and IP at the same time :
We will be happy to talk about all the technical aspects of the project and advise the best solution, we can provide modulators if needed.
2)Cat 5 is passing Ethernet, the ethernet is a digital signal, Ethernet devices always re-clocks the signal, it is easy to determine if the 100m is an issue or not, you would have a link on the switch or not.

The 100m is a maximum CAT5 that can run.

If you do not have a link then you need to put an ethernet switch somewhere in between, or you can use point to point optical transceivers like those below, by using them you can extend Ethenet of many Km:

https://thorbroadcast.com/product/10-100-1000-mbps-fast-and-gigabit-ethernet-over-1-fiber-media-8230.html

There is no CAT 5 amplifier, the ethernet doesn't have power like CATV RF

No, As I mentioned the Ethernet can not be stronger and weaker, it is a data stream signal

POE Switch does not do anything for this, POE switch can send DC power over the CAT 5 to power POE device like Camera, so you do not have to use external DC power supply, but it doesn't extend the range of the ethernet signal.

Answer:
I want to implement IPTV, we will be a small ISP that will start soon
We will reach our clients through fiber optics to their homes
We want to mount the necessary equipment on our node to offer IPTV service.

But we don't know at all what equipment we need
We want to contract legal channels such as FOX, HBO, Discovery, etc. to be able to offer our clients these packages.

But first we need the equipment.

What equipment could they offer us?
Could we have a small meeting by videoconference?

I could send you the invitation is through Microsoft Teams, you can access it from the web browser of your cell phone or computer.

We only want to know about the IPTV equipment solutions that they could offer us.
Do you have your own headend? Where are the sources coming from?
We have lot of encoders for IPTV, but distribution is another process.
We have HDMI or SDI, but we need to know the protocol fro video, MPEG2 or H264; then the streaming protocol like RTP UDP RTMP etc there are many variations in the resolution and audio codecs as well we need to know more information about
ok currently we don't have the headend ready, we are under construction.
We want to search for sources, but we want our sources completely legal so as not to have problems of transmission by content, but we do not know with whom we can talk about it.
Well that starts with which country you are in, you need to speak with somebody in the government who can help you a little, or contact the cable TV companies
Essentially you will have several issues, from building the headend, getting access to those channels, and then distribution. Of which you will need make some sort of encryption effort, supply customer with set top boxes, and also lease the fiber. If this is all in one location or building then it is easier.
I do not want to retransmit a signal from cable companies.

I want to buy my own signal and pass it right to my clients.
Oh I see, then you will have to contact those companies directly, setup agreements and lease out those channels like any other cable company
Very good chance that they can let you access those channels direct from satellites, so you would pay a fee, get an access card, or code, and then you can use an IRD with CAS to get that data from satellites.
However I will mention our company does not get involved in any of that. We make and sell headend equipment.
Answer:
You can use any program that can decode the protocol that you plan on using.
If its a more common protocol like UDP/ RTP/ RTSP then you can use something like VLC that is freeware.
Something like RTMP is commonly used with YouTube for live streaming.
There's no shortage of programs that can decode; really depends on how you plan on encoding the signal, then identifying that protocol in a software.

As for the best? That's more of personal preference. OBS is another Free program that plenty of people use.
If you want to pay for one, there are dozens of professional studio decoding options available.

So I would start with which protocol you plan on using to stream; then go from there.
Answer:
If you have cat6 then you would need an IPTV encoder; something like this:

This will intake 8 inputs HDMI then convert to IPTV streams.

At every room you will need a decoder to convert IP to HDMI for input into the televisions.
So if there is one TV in every room, then you will need 50 decoders.
Answer:
Yes, we do RF to IP IPTV gateways, In the USA, CANADA, and MEXICO, you use the ATSC modulation standard.
The gateways have 8 or 16 DVB-T tuners and they can output UDP unicast or multicast stream for all TS's ( programs ) multiplexed on those  Channels.
So, for example, if ATSC ch 50  has 4 Video/ Audio TS programs, we can output all of them, and as a TS
We do not re-encode the video audio we are just passing it from RF to IP
You can use any decoder supporting UDP multicast or unicast to decode those streams
so any of those devices would work for you

H-8ATSC-IP-RF
https://thorbroadcast.com/product/atsc-or-qam-to-ip-gateway-atsc-qam-iptv-broadcast-8230.html/70

H-16ATSC-IP-RF
https://thorbroadcast.com/product/16-rf-tuners-to-iptv-ts-qam-output.html/116

You can watch this video:

Answer:
1)  the switch needs to have the ability for DHCP, the STB needs to get the IP address from the network router DHCP server.
2) Also, the IGMP protocol needs to be enabled.

The Encoder has a Gigabit Ethernet interface, the STB has 100base T
The STB needs to be connected to the switch, it will not communicate directly with the encoder because of the Ethernet speed interface difference.

Troubolsuting :
Please connect the encoder to the switch, connect The PC to the switch, and verify if the Lulicast streams are being sent out using VLC
the VLC syntax is udp://@224.2.2.2:10002 ,  udp://@224.2.2.4:10004 .. and on

You can also use TS reader very handy tool :
Please download the TS reader, it is a really good tool for analyzing streams,
TS reader  accepts udp multicast
Whence you verify the multicast stream, please concentrate on the STB,
Please verify if the IP STB received is own IP Adress
Check  the switch port and see if the traffic on the port doesn't exude 100mbps , the switch when the IGMP is enabled should send only the stream which was requested by IP STB, so the data rate on the switch port should be =  1 encoded stream  about 8mbps
Answer:

Unfortunately, it is impossible to distribute multicast streams over
Wifi reliably, Wifi doesn't have that ability and doesn't support it.
It needs to be distributed over a copper LAN network
You can set up a unicast stream and instead of the multicast IP
address, place the destination (decoder/receiver / PC ) IP address )
but the encoder Data IP address needs to be on the same Subnet as a
receiving device.

So for example, if the receiving PC address is 192.168.2.100, the data
IP also needs to be on 192.168.2.XX network.

Please note the NMS and Data IP Must be on the different subnets

Answer:
This is a relatively simple application. Yes, the encoders can be combined.
It is possible to use a mix of HDMI and SDI encoders to transmit 16 or more discreet video channels. The encoder would create its decreased UDP multicast stream which can be decoded anywhere on the LAN by any PC or IP Set-top Box. On the PC, you could use a simple VLC player to decode, the IP STB is a stand-alone small device for receiving and decoding those streams to HDMI.
Regarding the network, it can be run on a standard switch configuration, but the IGMP protocol needs to be enabled for the multicast to work.



"UDP (User Datagram Protocol) multicast is a type of IP multicast that uses UDP as the transport protocol. It allows for the efficient one-to-many distribution of data to multiple receivers on a network. This is achieved by sending a single copy of the data to a special IP address called a "multicast group" that represents the group of receivers that should receive the data.

To use UDP multicast, a sender sends data to the multicast group IP address, and any device that has joined that group will receive the data. The sender does not need to know the individual IP addresses of the receivers, only the multicast group address.

Receivers can join and leave a multicast group at any time using a process called "multicast group membership". This is typically done using the Internet Group Management Protocol (IGMP) or the Multicast Listener Discovery (MLD) protocol.

UDP multicast is widely used in a variety of applications such as streaming video, online gaming, and software updates. "



The 16 streams would require approximately 160Mbps of bandwidth

You could use the following encoders:
8ch- 24ch HDMI  H-HDPerformux-8 - H-HDPerformux-24

for the SDI we do have only 2 models :
4ch - H-4HD-EMS
12 CH  H-12SDI-QAM-IPLL

This is link to the H-STB-IP IP to HDMI decoders you could use for decoding
H-STB-IP

Please review and let me know if that is clear, please let me know how many HDMI channels and SDI channels you will need.
Answer:

H.264, also known as MPEG-4 AVC (Advanced Video Coding), is a video compression standard that is used to encode video data in a digital format. It is widely used in video compression for a variety of applications, including streaming video, television broadcasting, and video conferencing.

H.264 has several different "profiles" that determine the set of features that are supported by the codec. The most commonly used profiles are:

  • Baseline Profile (BP): This profile is designed for low-complexity devices such as cell phones and is the most widely supported profile by consumer devices.

  • Main Profile (MP): This profile is designed for standard-definition (SD) video and provides a higher level of compression than the Baseline Profile.

  • High Profile (HiP): This profile is designed for high-definition (HD) video and provides a higher level of compression than the Main Profile.

  • High 10 Profile (Hi10P): This profile is designed for high-definition (HD) video with 10-bit color depth and provides a higher level of compression than the High Profile.

  • High 4:2:2 Profile (Hi422P): This profile is designed for high-definition (HD) video with 4:2:2 chroma subsampling and provides a higher level of compression than the High Profile.

Each profile is designed to address specific use cases and requirements, therefore the main advantage of one profile over another is the level of compression, video quality and the specific features and capabilities it supports.

Answer:

Are you familiar with the difference between multicast and unicast streaming?

The unit outputs UDP/RTP multicast streams, which means that any devices on the network with IGMP protocol enabled can receive the streams.

For example, the syntax for VLC players is udp://@(multicast IP address):(port number), for instance, udp://@224.2.2.2:2234.

For mobile applications, you would need a video server and encoder to stream UDP to the server.

The server then streams HLS streams to the devices which requested the streams like cell phones.

This can be a hardware server or software, with many consumers using Wawza.

---

You mentioned that you want to stream from an IP encoder to my phone, which you cannot do without the video server since multicast UDP does not support it.
 Please do the following test: output a UDP multicast with the example 224.2.2.2 port 2234 and connect the data port to the switch.
Then, on the VLC media player, type the following syntax udp://@224.2.2.2:2234 and let's check.
You need to enable the IGMP protocol on the switches in order to send multicast
You can test it directly, without the switch , connect the PC directly to the Data port , thank  use VLC

I do not have a recommendation on the Video serves because we do not make it.
Some customers are using Wowza servers , andy video server witch inputs UDP multicast and outputs HLS would work.
UDP multicast streaming is a method of transmitting data packets from
one source to multiple destinations simultaneously over a network. In
this type of communication, the sender sends a single copy of the data
to the multicast group IP address, and the network ensures that it is
delivered to all interested receivers who have joined the multicast
group.

To set up a network for IGMP protocol, you need to configure your
network devices like routers, switches, and firewalls to support
multicast traffic. Here are the basic steps to set up a network for
IGMP protocol:

Configure the multicast source: Configure the source device (e.g.,
server) to send multicast traffic with a specific IP address range.

Enable multicast routing: Enable multicast routing on your network
devices. Multicast routing enables the network devices to send
multicast traffic to the correct network segment.

Configure IGMP snooping: Configure IGMP snooping on your switches to
ensure that multicast traffic is forwarded only to those ports that
are interested in receiving the traffic.

Enable PIM: Enable Protocol Independent Multicast (PIM) on your
routers. PIM is a protocol used to route multicast traffic across
multiple networks.

By following these steps, you can set up a network that supports IGMP
protocol and UDP multicast streaming.
Answer:

It is possible to achieve that, but it can be a bit complex. Each channel would need to be re-encoded, which means we would first need to decode each program to HDMI video format using separate Cable TV STBs. Then, we would use HDMI encoders to produce IP streams. HDMI encoders have the ability to inject text or images and incorporate them into the IP streams. The IP streams would then be converted back to HDMI using IP STBs.

Please let me know how many channels you would like to process in this manner.

 We have 8 to 24-channel HDMI encoders available. The 8-channel HDMI encoder is priced at $4,295, while the 24-channel HDMI encoder is priced at $5,995.Additionally, we have the H-STB-IP available for $169 each, which is the compact IP decoder set-top box.

Answer:

In video encoding and streaming, GOP stands for "Group of Pictures." It's a term used in video compression to describe a collection of successive frames within a coded video stream. The GOP structure significantly influences the efficiency and quality of the video compression process.

Understanding GOP in TS Stream

  1. Structure:

    • I-frames (Intra-coded frames): These are keyframes that are self-contained and can be decoded independently of other frames. They are typically larger in size.
    • P-frames (Predicted frames): These frames depend on previous I-frames or P-frames for decoding. They are more compressed than I-frames.
    • B-frames (Bidirectional frames): These frames depend on both previous and future frames for decoding, offering the highest compression.
  2. GOP Size:

    • GOP Length: It refers to the number of frames between two I-frames. For example, a GOP size of 25-50 means the encoder might use a structure where an I-frame is followed by a mix of P-frames and B-frames, up to 50 frames total.
    • Open vs. Closed GOP:
      • Open GOP: B-frames can reference frames outside the GOP.
      • Closed GOP: All frames in the GOP are self-contained.

Effects on Encoded Stream

  1. Compression Efficiency:

    • Larger GOP (e.g., 50): Generally results in better compression efficiency because fewer I-frames are used, and more frames are compressed using the more efficient P- and B-frames.
    • Smaller GOP (e.g., 25): Can lead to less efficient compression but might provide better error resilience and faster seeking.
  2. Video Quality:

    • Larger GOP: Potentially better overall quality at a given bitrate, but with possible artifacts if the connection is unstable.
    • Smaller GOP: May maintain more consistent quality across different network conditions, but might require a higher bitrate to achieve the same quality.
  3. Latency:

    • Larger GOP: Could introduce more latency in live streaming scenarios because of the increased processing time for B-frames.
    • Smaller GOP: Usually results in lower latency, making it more suitable for live streaming.

Choosing Between 25 and 50

The choice between a GOP size of 25 and 50 depends on your specific use case:

  • If you prioritize compression efficiency and can handle higher latency: Use a larger GOP size (50). This is suitable for pre-recorded content where buffering is less of an issue.
  • If you prioritize lower latency and error resilience: Use a smaller GOP size (25). This is preferable for live streaming or situations where fast seeking and lower latency are important.

Conclusion

Ultimately, the best GOP setting depends on your specific needs regarding video quality, compression efficiency, and latency. For most general use cases, a GOP size of 25 is a safe and balanced choice, while a GOP size of 50 might be better for high-quality, pre-recorded videos where compression efficiency is a higher priority.


Similar products:

4 Channel HDMI + CVBS Network Encoder Streamer UDP/RTP (Unicast/Multicast), Low latency HLS, RTMP, HTTP & USB playback 4 Channel HDMI + CVBS Network Encoder Streamer UDP/RTP (Unicast/Multicast), Low latency HLS, RTMP, HTTP & USB playback

The SPARTAN-4 has 4 input ports for HDMI / CVBS for MPEG4 AVC/H.264 video encoding and MPEG1 Layer 2, AAC, or AC3 audio encoding. It also allows playing TS files through a USB port on the front of the unit. Supports up to 1080/60P full HD resolution, UDP/RTP (Unicast/Multicast), HLS, RTMP, HTTP in Low Latency

1 SDI HDMI CVBS IP H.264 Encoder Streamer UDP, RTP, HLS, RTMP & HTTP playback 1 SDI HDMI CVBS IP H.264 Encoder Streamer UDP, RTP, HLS, RTMP & HTTP playback

The SPARTAN-1 is an IP streaming device that comes equipped with a single input port capable of supporting HDMI, CVBS, and SDI inputs. It is specifically designed to facilitate MPEG4 AVC/H.264 video encoding and MPEG1 Layer 2, AAC, or AC3 audio encoding, ensuring high-quality video and audio output. Additionally, this device supports a range of popular streaming protocols such as UDP/RTP (Unicast/Multicast), HLS, RTMP, and HTTP in Low Latency, making it an ideal solution for streaming over local area networks (LAN) or over the internet.

Popular



Contact Us

Thor Broadcast Sales


Customer Service/ Support
