Analog Audio Over Fiber Extender | Mono Stereo | 2?32 Ch TX/RX

2CH Bi-directional model description

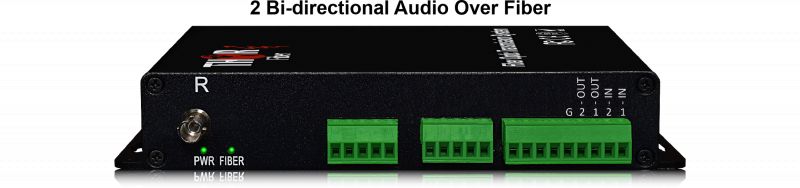

2 Unbalanced Bi-Directional Audios over 1 fiber Transmitter and Receiver kit - Single mode / multimode: F-2A-B-TxRx Transmits 2 Audios and Receives 2 Audios, perfect for Intercom or Audio communication in both directions

Description

The Analog Audio Over Fiber Transmitter and Receiver Kit is a reliable solution for extending unbalanced and XLR analog audio over fiber optic cable across long distances. This audio over fiber system eliminates noise, signal loss, and ground loop issues commonly associated with traditional copper cabling.

Available in configurations supporting 2, 4, 8, 16, and 32 audio channels, this fiber optic audio extender enables flexible deployment for a wide range of professional applications. The transmitter (TX) converts analog audio signals (20 Hz to 20 kHz) into a digitally encoded optical signal for transmission over single-mode fiber, while the receiver (RX) converts the optical signal back into the original analog waveform with high accuracy.

Designed for performance, this analog audio over fiber converter offers ultra-low latency (~1 ms), making it ideal for live events, concerts, broadcast production, and real-time audio distribution.

The compact and durable design allows for easy integration in environments where long-distance audio transmission over fiber is required or where copper cabling is limited by distance or interference.

Features

Terminal block connector

Point to point as well as point to multipoint transmission applications

Singlemode fiber supported

ST/PC fiber connector or different per request

LED indicators

Stand alone or rack mount blade available

Short and long haul signal transport up to 120Km - model dependent

Compact portable size

600 Ω Unbalanced

Bandwidth:	20Hz ~ 20KHz

Bit Resolution:	24-Bit

Signal-to-Noise Ratio(SNR):	> 80 dB

Drawings

Video

Analog Audio fiber optic extender - balanced , unbalanced -Thor Fiber

2 or 4 or 8 or 16 or 32 unbalanced analog audio optical transmitter and receiver from Thor Fiber

Audio Over Fiber! Discover Thor Broadcast's Top Selling Solutions

In this video, we're diving into Thor Broadcast's most popular Audio Over Fiber products, perfect for high-quality analog audio transmission. Here's what we'll cover: Key Features: Support for 2-32 analog audio channels. Compatible with point-to-point or multipoint setups. Works with single or multi-mode fiber. LED indicators for power and optical link status. Specifications: 20 Hz–20 kHz bandwidth with 24-bit resolution. Transmission distances up to 120 km (model-dependent). Terminal block connectors. Line-level audio up to 4 volts peak-to-peak. Model Selection: F-4A: 4 channels, unidirectional. https://thorbroadcast.com/product/analog-audio-over-fiber-1.html/62 F-2A-RCA: 2 channels, RCA connectors, unidirectional https://thorbroadcast.com/product/2-32-audio-over-fiber-rca-connector.html/104 F-2A-B: 2 channels, bi-directional https://thorbroadcast.com/product/analog-audio-over-fiber-1.html/66 F-2A: 2 channels, unidirectional https://thorbroadcast.com/product/analog-audio-over-fiber-1.html/57 F-8A: 8 channels, unidirectional https://thorbroadcast.com/product/analog-audio-over-fiber-1.html/63 F-16A: 16 channels, unidirectional https://thorbroadcast.com/product/analog-audio-over-fiber-1.html/64 F-32A: 32 channels, unidirectional https://thorbroadcast.com/product/analog-audio-over-fiber-1.html/65 Why Choose Thor Broadcast? Low latency, ideal for live events. Compact and portable design. Immune to electromagnetic interference. Backed by a 2-year warranty. Explore More: Visit our website at thorbroadcast.com for more details or scan the QR code shown in the video for instant access to these products. Please like, subscribe, and stay tuned for more product updates from Thor Broadcast!

Model Selection

F-XXA-TX-YY-ZZ

XX -Number of Audios

YY-Distance in KM --- default is 20Km on singemode fiber (40, 60, 80, 120km upon request)

F-2A-TxRx - 2 Unbalanced Uni-Directional Audios over 1 fiber Transmitter and Receiver kit

F-4A-TxRx - 4 Unbalanced Uni-Directional Audios over 1 fiber Transmitter and Receiver kit

F-8A-TxRx - 8 Unbalanced Uni-Directional Audios over 1 fiber Transmitter and Receiver kit

F-16A-TxRx - 16 Unbalanced Uni-Directional Audios over 1 fiber Transmitter and Receiver kit

F-32A-TxRx - 32 Unbalanced Uni-Directional Audios over 1 fiber Transmitter and Receiver kit

F-2A-B- TxRx 2 Unbalanced Bi-Directional Audios over 1 fiber Transmitter and Receiver kit - Single mode:
Sends 2 Audios and Receives 2 Audios, perfect for Intercom or Audio communication in both directions

F-4A-B- TxRx 4 Unbalanced Bi-Directional Audios over 1 fiber Transmitter and Receiver kit - Single mode:
Sends 4 Audios and Receives 4 Audios, perfect for Intercom or Audio communication in both directions

F-8A-B- TxRx 8 Unbalanced Bi-Directional Audios over 1 fiber Transmitter and Receiver kit

F-16A-B- TxRx 16 Unbalanced Bi-Directional Audios over 1 fiber Transmitter and Receiver kit

	Transmitter	2 Analog AUDIO over fiber Tx/Rx
	Receiver	2 Analog AUDIO over fiber Tx/Rx

	Transmitter	4 Analog AUDIO over fiber Tx/Rx
	Receiver	4 Analog AUDIO over fiber Tx/Rx

	Transmitter	8 Analog AUDIO over fiber Tx/Rx
	Receiver	8 Analog AUDIO over fiber Tx/Rx

	Transmitter	16 Analog AUDIO over fiber Tx/Rx
	Receiver	16 Analog AUDIO over fiber Tx/Rx

Accessories & Upgrades

Specification

Audio Interface	Terminal block
Audio input/output impedance	600 ohm - unbalanced
Audio Level voltage	up to 2V-pp
Audio Level	0 dbm
Audio bandwidth	10hz to 24.5khz
Sample Rates	48kHz
Digital bandwidth	24 bit
SNR	better than 79db
THD@1khz	1%
Optical connector	ST/PC (other connectors available by request -extra $)
Optical fiber distance	fiber and up to 20KM on - 9/125u single mode fiber (Other distances are available by request - extra$)
Optical Wavelength	1310nm ( other -1550nm or CWDM are available per request- extra$)
Power	5V DC
Power Comsupcion	3W
Power Adaptor	AC-90-240AVC / 5060HZ
Dimensions :	7" x 6.5" x 1"
Operating Temperature	-20°C ~ +75°C
Weight	1lb
MTBF	over 100,000 hours

Question and Answers

Question:

Do you have a Line Level Audio (analog) over Multimode Fiber in your product line? We need unbalanced audio mostly with terminal block interface. What options do we have for number of channels? The fiber distance is mostly less than a mile

Answer:

So in unidirectional format we have options from 2 Audio all the way up to 32 Audio.

We also have some bidirectional options as well.

The larger issue here is that multimode should be run anywhere near a mile.

Maybe It could work for very short distances.

Maximum I think multimode could carry the signal about 2000ft; but that would be in ideal conditions with almost no loss.

Keep in mind this generally has nothing to do with the units themselves, its the fiber. The same unit that can send a signal about 2000ft on multimode can send the same signal 20km on singlemode.

We do have a 30 day return policy, should you proceed with the purchase, and after installation realize this is not something that can be remedied with hardware, but actually needs to be re-pulled with new fiber.

Question:

What is the diference between Line level and Mic Level on the XLR fiber units

Answer:

The key differences between line level and mic level audio are related to signal strength, impedance, and the types of devices they are typically associated with:

Signal Strength:
- Line Level: Line-level audio signals are relatively strong and have higher voltage levels, typically ranging from around 0.3 to 2 volts. They are pre-amplified to a level suitable for processing or further amplification.
- Mic Level: Mic-level audio signals are much weaker in comparison. They are generated by microphones and have very low voltage levels, often in the range of a few millivolts. Mic-level signals are not pre-amplified and require external preamplification to reach line level.
Impedance:
- Line Level: Line-level signals have a low output impedance, typically ranging from 150 ohms to 600 ohms. This low impedance allows them to be transmitted over cables without significant signal loss.
- Mic Level: Mic-level signals have a high output impedance, usually in the range of 150 ohms to 250 ohms. This higher impedance requires a balanced microphone cable and a preamplifier with a matching input impedance to preserve signal quality.
Devices and Applications:
- Line Level: Line-level signals are commonly used to connect audio sources like CD players, DVD players, synthesizers, and audio interfaces to mixers, amplifiers, and recording devices. They are suitable for transmitting audio over relatively long cable runs.
- Mic Level: Mic-level signals are generated by microphones and are used for capturing audio from sources such as voices or acoustic instruments. These signals are typically sent to microphone preamplifiers to bring them up to line level before further processing or recording.

In summary, the primary difference lies in signal strength and the source of the signal. Line-level signals are strong and pre-amplified, suitable for connecting various audio sources to other equipment. Mic-level signals are very weak and require preamplification before they can be used effectively, typically for capturing audio from microphones. Matching the correct signal level and impedance is essential for ensuring optimal audio quality in professional audio setups.

Question:

I am wonder if somebody can help to cross match or provide an equivalent product for this analog to fiber device.

Audio-Transceiver-Fiber(M)

Item no. A1990031

Transmission system (transceiver) for analog and digital audio signals

Answer:

Yes, we have a whole line of products dedicated to audio over fiber.

https://thorbroadcast.com/products/analog-audio-video

We don't have an exact duplicate, but we do have very similar units that are definitely suitable as a substitute.

There is bidirectional XLR we have

https://thorbroadcast.com/product/xlr-audio-over-fiber-1.html/89

We also have bidirectional analog audio

https://thorbroadcast.com/product/analog-audio-over-fiber-1.html/66

Both of those should be good fits to replace the unit you have sent us.

Question:

If I need 2 channels of balanced audio, how do I wire the connector? Which pin is negative and which is shield?

on a 4 channel unit for 2 channels of balanced audio it’s –

Audio 1 + to pin 1

Audio 1 – to pin 2

Audio 1 Shield to Grd

Audio 2 + to pin 3

Audio 2 – to pin 4

Audio 2 Shield to Grd

Shared Ground Pin for the 2 Shields. Do I have this correct? Just wanting to be sure as my customer will be installing himself.

Balanced is always 3 wires. The shield (pin 1 of an XLR) would go where – to the ground (G) on the terminal block? That would make sense. Positive (pin 2 of an XLR) would go to in 1 of the terminal block, and Negative (pin 3 of an XLR) would go to in 2 of the terminal block.

For channel 2 we would use inputs 3 and 4 with the shield also being attached to the G on the terminal block.

I apologize for not comprehending something that may just be semantics, but in my almost 33 years of installing systems I have spent too many late nights troubleshooting. I will always ask until I have total clarity. I still have a very expensive piece of Thor gear that doesn’t work from 3 years ago because of such a circumstance.

Answer:

Now if you look at the terminal block there are 4 numbers + GND.

So you'll use 1 +2 for the first balanced audio

Then you'll use 3+4 for the second balanced audio

Finally use the GND to ground the unit. Same thing goes on the receiver.

I think looking at the picture makes it much easier to explain than verbalizing.

We do have also Balanced XLR Analog Audio Over fiber

https://thorbroadcast.com/product/xlr-audio-over-fiber-1.html/87

Documents

F-2-4-8-16-32AUDIO USER MANUAL

F-8A-TxRx - QUICK SETUP GUIDE

F-16A-TxRx - QUICK SETUP GUIDE

F-32A-TXRX - QUICK SETUP GUIDE

F-2A-TxRx - QUICK SETUP GUIDE

F-4A-TxRx - QUICK SETUP GUIDE

Availability:	In stock	Condition:	new
