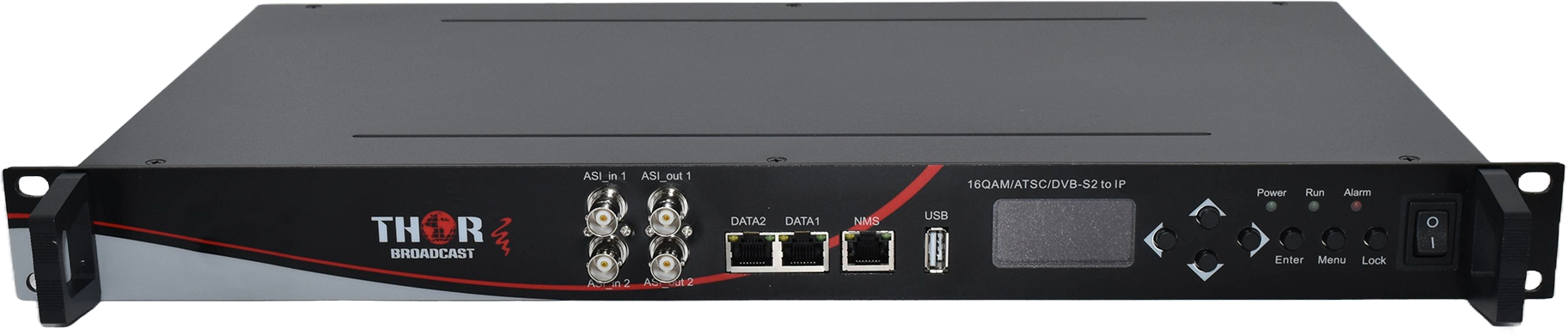

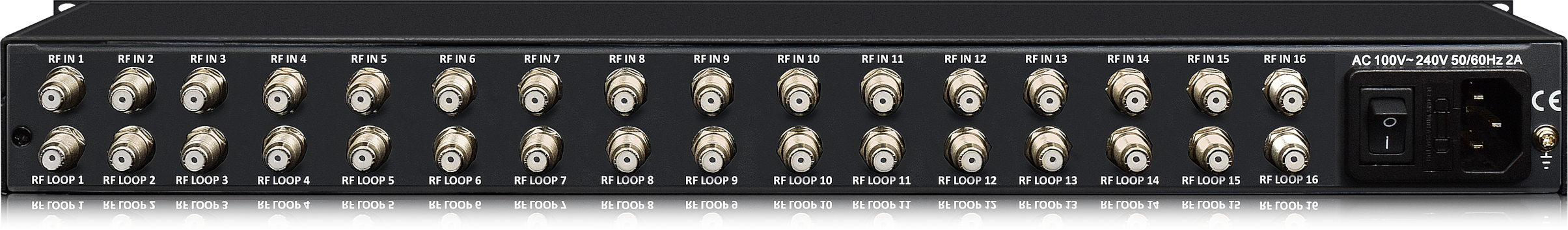

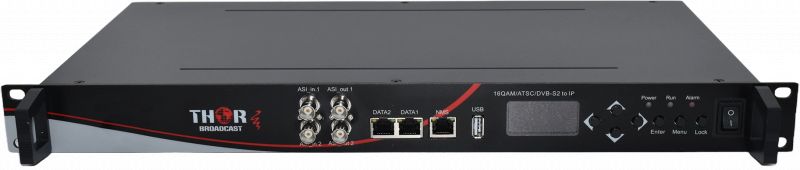

16 RF Sintonizadores de IPTV TS & QAM Salida 16 x Cable QAM Inputs tuners to IP

The unit inputs 16 modulated CATV RF channels and output ready to go multicast or unicast UDP/RTP stream for IPTV distribution. It outputs SMPT's and MPTS for each TS program from QAM, ATSC, DVB-T, ISDB-T (Model specific). It works as QAM to IP, ATSC to IP, DVB-T to IP, ISDB-T to IP converter Gateway, this is the easiest way to create IPTV headend form the CATV RF cable or OFF-AIR. In many cases, 16 RF channels carry over 100 Video programs. Very often used for varies HOTES, GYM's SCHOOLS, HOSPITALS, CHURCHES IPTV Distribution application. It simply works as TUNER - IP Converter https://thorbroadcast.com/product/16-rf-tuners-to-iptv-ts-qam-output.html/116 Spanish Language: La unidad ingresa 16 canales de RF de CATV modulados y la salida está lista para ir a la transmisión UDP / RTP de multidifusión o unidifusión para la distribución de IPTV. Produce SMPT y MPTS para cada programa TS de QAM, ATSC, DVB-T, ISDB-T (modelo específico). Funciona como QAM a IP, ATSC a IP, DVB-T a IP, puerta de enlace convertidor ISDB-T a IP, esta es la forma más fácil de crear cabecera IPTV desde el cable RF CATV o OFF-AIR. En muchos casos, 16 canales de RF transmiten más de 100 programas de video. Muy a menudo se usa para HOTES, ESCUELAS DE GIMNASIO, HOSPITALES, IGLESIAS Aplicación de distribución de IPTV https://thorbroadcast.com/product/16-rf-tuners-to-iptv-ts-qam-output.html/116

16 Independent Off Air ATSC tuners input to IP TS SPTS multicast or unicast outputs. PN H-16ATSC-IP. Each TS program - "subchannel" from any ATSC Channel can be converted to IP stream - UDP/RTP/RTSP , it could be used as an ATSC cherrypicker to IP gateway used to be the ATSC Lighthouse Station used during the ATSC3 Transformation The unit has also 2 ASI inputs for external TS's sources , also other models are available: H-16ATSC-IP-16ATSC 16 ATSC to 16 ATSC trans modulator with VCT edit, H-16ATSC-IP-16QAM : 16 ATSC to 16 DVB-C QAM- trans modulator with VCT edit. RF to IP GatewayBroadcast FULL HD IPTV content from 16 TV frequencies that can be ATSC / DVBS-S2 - or QAM(A&B) / DVBT / DVBT2 / ISDBTEXAMPLE Model numbers can be ( H-16QAM-IP ---- H-16ATSC-IP ---- 16-8DVBS-IP )The 16 Input Tuners choices are: AllThe IP Output format is UDP multicast or multicastFTA tuner inputs can be set to any non-adjacent carrier and converted to IP UDP unicast, multicast streams.After setting the frequency the unit scans for Video/Audio programs and once discovered they can be converted individually to IP streams or re-modulated on different frequencies(channels) or a different modulation standard.It supports up to 512 IP inputs and one IP (MPTS) output through GE1 and TS input for re-mux through 2 ASI ports. This is the next generation of Gateways of which will create a seamless conversion of RF programs to IP TS that are easily managed via a secure NMS system developed by Thor to help distribute all of your programs via IP and ASI. Convert 16 CATV in either DVBS2, QAM, or ATSC to IP or Transmodulate one format of RF to another form of RF. This family of products equipped with 16RF tuners is model dependent for QAM/ ATSC/ DVBS2 and works as RF to IP Gateway and can output Multicast or Unicast also can act as an RF Translator.Because we use RF Tuners with specific modulation formats, these models are all independent of each other and must be ordered correctly because they are hardware based; we offer them in standards used across the globe so you can use your specific modulation standard for your country (please check model selection, reach out to your local dealer or call Thor directly). Essentially there are 3 hardware sets we manufacture, one specifically for ATSC, one for DVBS-S2, and the third is for QAM (the QAM model has built in modulation standards for QAM Annex A and Annex B, DVB-T, DVB-T2, and ISDB-T; this is selectable through the NMS GUI). Features: - ATSC to IP (SPTS Mode) Each ATSC frequency subchannel Transport strem can be cherry-picking and encapsulated to IP Multicast or unicast stream- ATSC to IP (MPTS mode) all subchannels are being converted to one MPTS stream- Auto PIS's detection on the tuner input and automated passes on the IP output-It can be used as an ATSC3 Lighthouse Station Tuner, receive an IP gatewayOther models are available: H-16ATSC-IP-16ATSC 16 ATSC to 16 ATSC trans-modulator with VCT edit, H-16ATSC-IP-16QAM : 16 ATSC to 16 DVB-C QAM- trans modulator with VCT edit,
