16 RF Tuners to IPTV TS & QAM Output

H-16ATSC-IP-RF

Qty: 0

ask about product

send request

Description Features Drawings Video Specification Q&A Documents Support

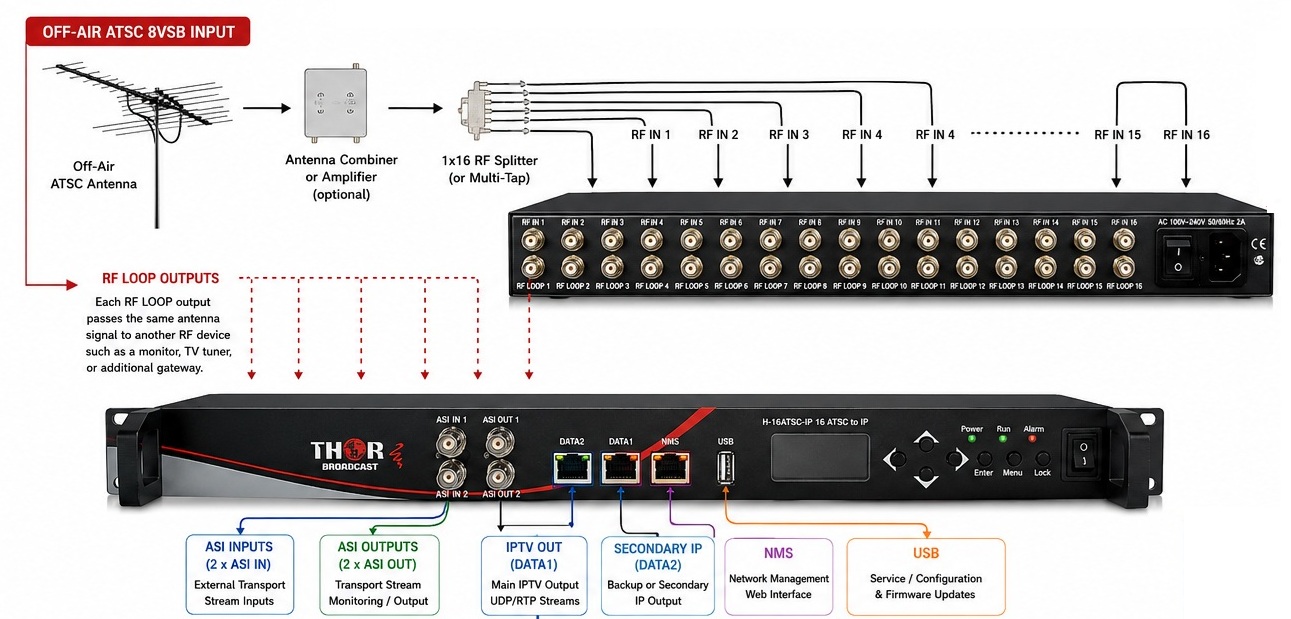

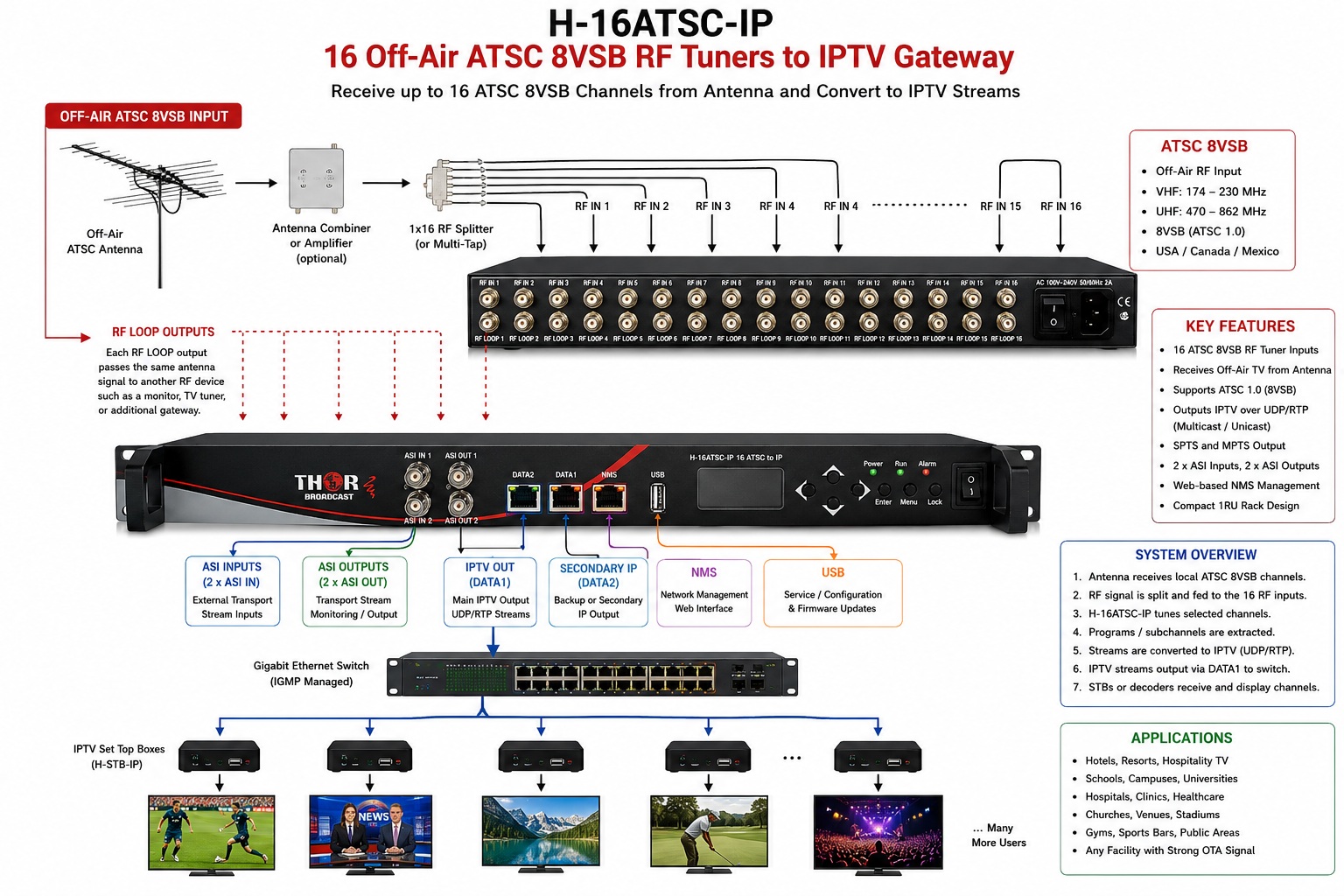

16 x Off Air ATSC Inputs tuners to IP model description

16 Independent Off Air ATSC tuners input to IP TS SPTS multicast or unicast outputs. PN H-16ATSC-IP Each TS program - "subchannel" from any ATSC Channel can be converted to IP stream - UDP/RTP/RTSP , it could be used as an ATSC cherrypicker to IP gateway used to be the ATSC Lighthouse Station used during the ATSC3 Transformation The unit has also 2 ASI inputs for external TS's sources

Description

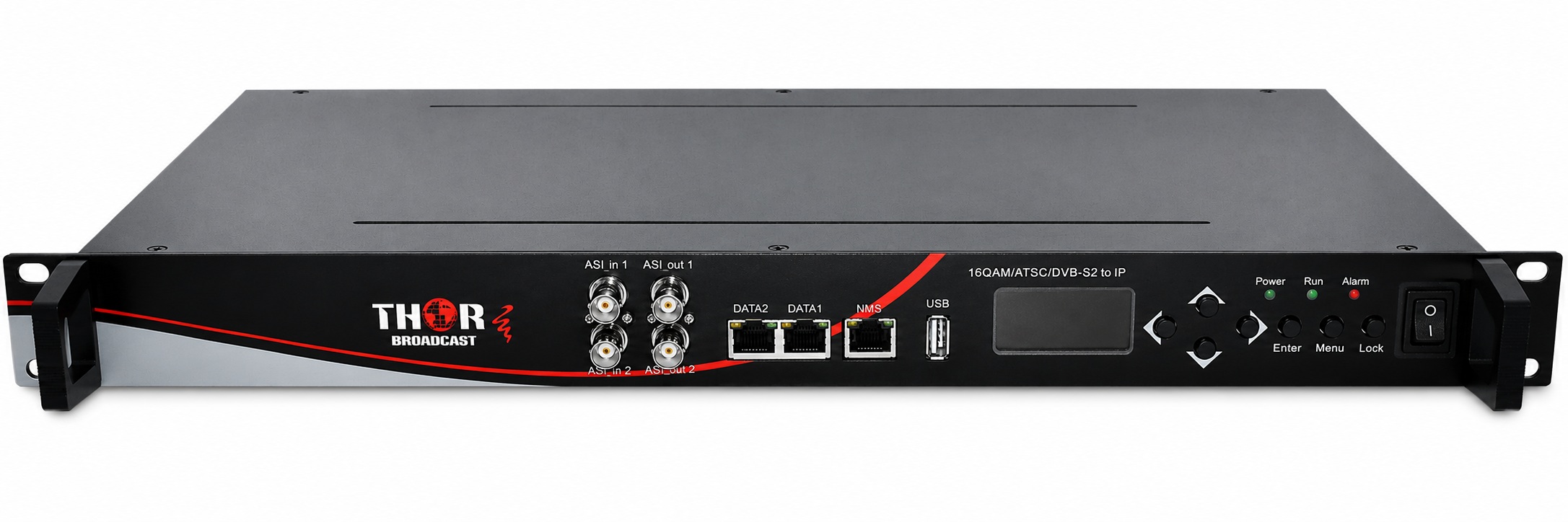

Thor's newly designed high density demodulating IP Gateway has 16 DVB-S/S2 FTA tuner inputs that convert to 16 non-adjacent carrier outputs with multiplexing, scrambling and QAM modulaton included. It also supports a maximum 512 IP inputs and one IP (MPTS) output through GE1 and TS input for re-mux through 2 ASI ports. It supports dual power supply (optional). This is the next generation of Gateways of which will create a seemless conversion of RF programs to IP TS that are easily managed via a secure NMS system developed by Thor to help distribute all of your programs via IP and ASI.

Tags: Coax Multiplexer

Features

- ATSC to IP (SPTS Mode) Each ATSC frequency subchannel Transport strem can be cherry-picking and encapsulated to IP Multicast or unicast stream

- ATSC to IP (MPTS mode) all subchannels are being converted to one MPTS stream

- Auto PIS's detection on the tuner input and automated passes on the IP output

-It can be used as an ATSC3 Lighthouse Station Tuner, receive an IP gateway

Drawings

Video

16 CATV RF QAM or ATSC or DVB- T to IPTV Converter

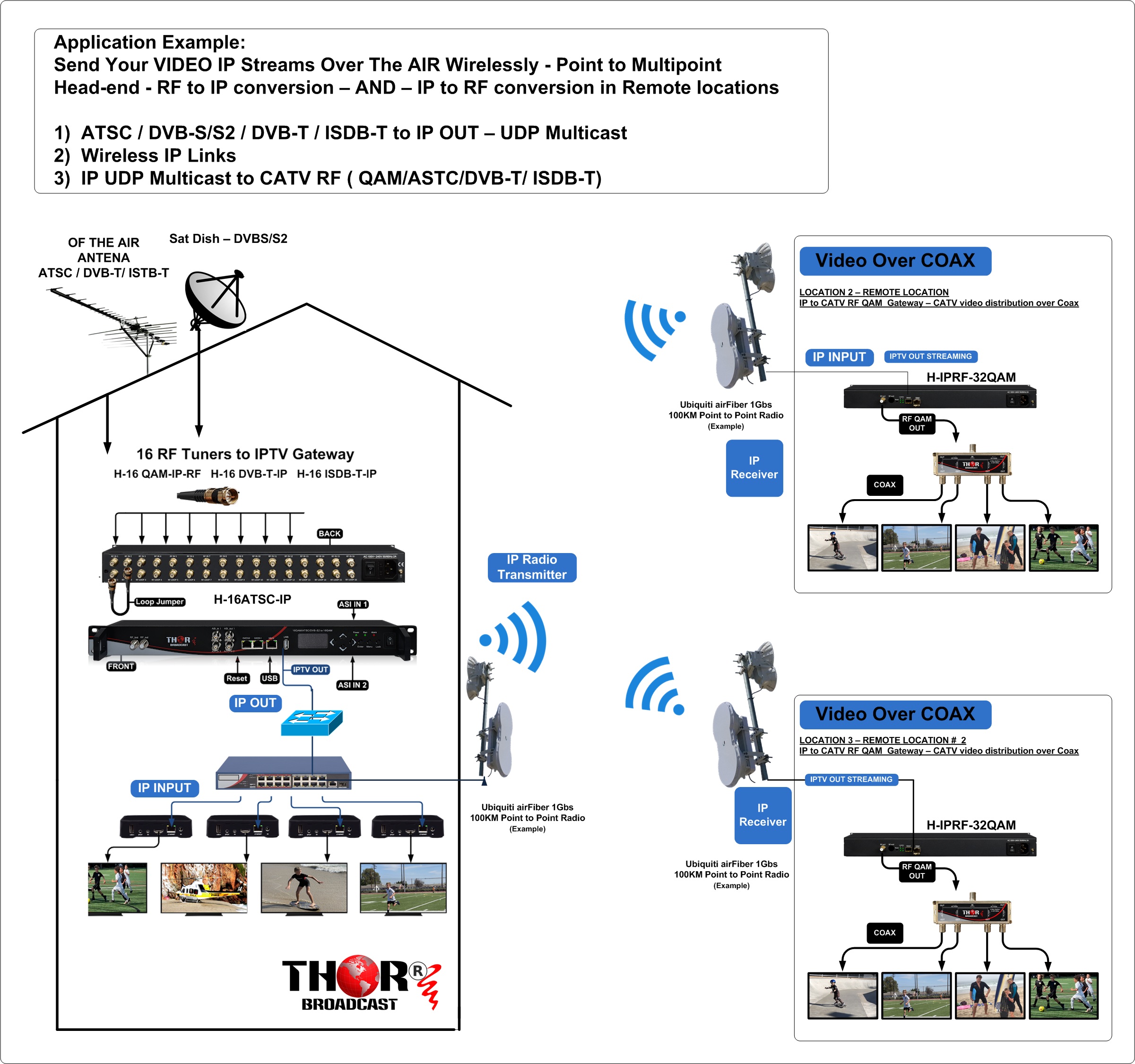

The unit inputs 16 modulated CATV RF channels and output ready to go multicast or unicast UDP/RTP stream for IPTV distribution. It outputs SMPT's and MPTS for each TS program from QAM, ATSC, DVB-T, ISDB-T (Model specific). It works as QAM to IP, ATSC to IP, DVB-T to IP, ISDB-T to IP converter Gateway, this is the easiest way to create IPTV headend form the CATV RF cable or OFF-AIR. In many cases, 16 RF channels carry over 100 Video programs. Very often used for varies HOTES, GYM's SCHOOLS, HOSPITALS, CHURCHES IPTV Distribution application. It simply works as TUNER - IP Converter https://thorbroadcast.com/product/16-rf-tuners-to-iptv-ts-qam-output.html/116 Spanish Language: La unidad ingresa 16 canales de RF de CATV modulados y la salida está lista para ir a la transmisión UDP / RTP de multidifusión o unidifusión para la distribución de IPTV. Produce SMPT y MPTS para cada programa TS de QAM, ATSC, DVB-T, ISDB-T (modelo específico). Funciona como QAM a IP, ATSC a IP, DVB-T a IP, puerta de enlace convertidor ISDB-T a IP, esta es la forma más fácil de crear cabecera IPTV desde el cable RF CATV o OFF-AIR. En muchos casos, 16 canales de RF transmiten más de 100 programas de video. Muy a menudo se usa para HOTES, ESCUELAS DE GIMNASIO, HOSPITALES, IGLESIAS Aplicación de distribución de IPTV https://thorbroadcast.com/product/16-rf-tuners-to-iptv-ts-qam-output.html/116

Specification

Input	16 DVB-S/S2 FTA Tuner
	512 IP (GE1only)input over UDP and RTP protocol
	2 ASI input, BNC interface
Tuner Section	DVB-S	Input Frequency	950-2150MHz
		Symbol rate	2-45Msps
		Signal Strength	-65~-25dBm
		FEC Demodulation	1/2, 2/3, 3/4, 5/6, 7/8 QPSK
	DVB-S2	Input Frequency	950-2150MHz
		Symbol rate	QPSK 1~45Mbauds 8PSK 2~30Mbauds
		Code rate	1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
		Demodulation Mode	QPSK, 8PSK
Multiplexing	Maximum PID Remapping	128per input channel
	Function	PID remapping (automatically or manually)
		Accurate PCR adjusting
		Generate PSI/SI table automatically
Scrambling Parameters	Max simulscrypt CA	4
	Scramble Standard	ETR289, ETSI 101 197, ETSI 103 197
	Connection	Local/remote connection
Modulation	QAM Channel	16
	Standard	EN300 429/ITU-T J.83A/B
	MER	≥40db
	RF frequency	50~960MHz, 1KHz step
	RF output level	-20~+10dbm(87~107 dbµV),0.1db step
	Symbol Rate	5.0Msps~7.0Msps, 1ksps stepping
	Constellation	16/32/64/128/256QAM
		J.83A	J.83B
	Constellation	16/32/64/128/256QAM	64/256 QAM
	Bandwidth	8M	6M
System	Remote management	Web NMS (10M/100M)
	RF Out	16 DVB-C output
	IP Out	1 IP (MPTS) output over UDP and RTP/RTSP (GE1 only) Mirrors one carrier
	Language	English
	Software Upgrading	Web
General	Dimension (WDH)	482mm×300mm×44.5mm
	Weight	3.7kg
	Temperature	0~45°C(Operation) ; -20~80°C(Storage)
	Power	AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ
	Consumption	25W

Question and Answers

Question:
I am interested in this product, which will be ideal for one of our new projects. I need to clarify, on each RF input what can I send, whole transponder or single channel? I need to send all channels (about 32 channels) in the one RF feed from point to point via IP. Can you please confirm if possible? I will not be able to move whole transponder feed with one RF input. The channels are all Virgin Media channels. I would like to send the RF signal from A to B, and looking for a solution, even I leave them as IP on site B or convert them back to RF. The best solution is your RF to Fibre and Fibre to RF devices, which we already have, they work perfect, but for this project, we do not have dark fiber between A and B.

Answer:
Are your channels clear or scrambled and need CAM cards? This unit would convert 16 clear channels to IP, you would need 2 pcs. https://thorbroadcast.com/product/8-x-atsc-or-satelliete-antenna-tuners-to-iptv-8230.html 2 x 16 CH H-16DVBS2-IP 16 x Satellite S2 Tuners to IPTV & ASI Output The unit can discover all TS's programs and broadcast each SPTS for each TS. What do you need to do with those streams on the other end? Do you want to leave it as an IP and use IP STB? Or convert this IP to RF QAM or DVB-T. If so this would be the best unit to do it: IP to 16/32 CH RF Gateway https://thorbroadcast.com/product/iptv-to-16-32-clear-channel-rf-qam-atsc-modulator.html I totally understand, but this unit has 16 RF inputs, it converts 16 individual channels to IP. so with those 2 pcs you can move 32 channels You are absolutely right, it would be easier to use fiber optic converters RF to RF. So you don't have dark fiber? But if you have fiber with, anything on there, maybe ethernet or L-band? Whatever doesn't matter, then we can make a pass through mux for you. We can do a custom product for you and multiplex anything on the single fiber. To explain it better, if you would have something already occupied by RFor Ethernet or ASI /SDI. We can build a unit with that and have that signal and in addition RF as well? Does that make sense? Please take a look at this CWDM multiplexer for example : https://thorbroadcast.com/product/chassis-multiplexing-system-for-sdi-ethernet-gigabit-ethernet-rs-data-8230.html

Question:
I have a customer that wants us to build a small system for them We have DTV antennas pointing at different digital OTA stations and we are looking for a box with built-in ATSC tuners that will encode them H.264/H.265(+) on IP so they can use any streaming box to watch the channels through a local IP network. we would like to encode from 4/6/8-16 channels.... do you have 1 rack-mount device that does what we want?

Answer:
Yes we have a direct converter that will take RF programs and convert them to IP streams; however that device is not an encoder but rather a Gateway, so the programs will maintain their MPEG2 protocol. If you would like to convert to H264 then you would have to use a tuner or STB, for each stream with an HDMI output; then those HDMI outputs would go into a broadcast encoder which will then convert each HDMI input to an IP stream in H264. This is our very popular 8 Channel HDMI to IP Encoder https://thorbroadcast.com/product/8-hdmi-broadcast-encoder-iptv-streamer-and-asi-out-h-264-8230.html Otherwise, if MPEG2 would work out then you can use this device as the gateway for RF to IP https://thorbroadcast.com/product/16-rf-tuners-to-iptv-ts-qam-output.html/116 Considering we use MPEG2 in North America to view streams; if the client to elects to convert to H264; they would still need to use a decoder to grab those IP streams and convert to something you can view on.

Question:

I came across one of your products on the web - "Thor 16 RF Tuners to IPTV TS & QAM Output"

1. Does it have H.264/H.265 support?

2. Does it have encryption support?

Or if you have any other product which supports these please share the details of that product?

Answer:

This unit is a gateway, so it demodulates and converts the signal type from RF to IP, however, it will not change the protocol standard.

So if your current RF television system is MPEG2 then the IPTV will be MPEG2.

If you are in a country that uses DVB-T MPEG2, H.264, or H.264, then your IP will be in came MPEG 2 H.264, H265

It does not support Encryption, so anther words, the RF input needs to be clear and IP output will be clear.

This is the only Tuner Gateway we have in this density.

What is your application, please describe in detail, our engineers will happy to review its ad advise the best solution. 800-521-8467 Ext 2

Question:

Temporary channel sharing that supports the creation of an initial ATSC 3.0 station known as the “Lighthouse Station.” The Lighthouse Station will be the first to provide ATSC 3.0 services in a market and will have its ATSC 1.0 signal carried by other partners in the business agreement.

During this transition or cable company needs to have the ability to cherry-pick the ATSC1 programming and convert it to IP so we can ingest it to our Cable Tv local tv channel lineup. Can this device have the ability to cherry-pick ATSC subchannels and encapsulate them to IP MPEG2 multicast streams?

Answer:

Yes, absolutely, the device can scan and discover all subchnnelTS insight the physical ATSC carrier, any subchannel transport strem can be encapsulated to its on IP strem of your choice. you can also re-map the PID's as well. This is the perfect solution for ATSC to ATSC3 transformation for lighthouse tv programming channel sharing receiver and IP gateway

Question:

Looking for a solution for multicast IPTV. Want RF tuner for over-the-air, inputs from HDMI (computer &DVD), and able to input from YouTube.

Answer:

How many of each signal are you trying to encode? Where is the Youtube source coming from?

I would think 8 RF channels, 1 or 2 HDMI, and YouTube would be via web.

and what protocol on multicast did you require?

youtube is from the web, but in order to integrate, you need to receive it, then encode it again

I watched YouTube video for the 16 rf tuner to IPTV to qam. Not to knowledgeable in this area, a network engineer by trade. Multicast would be UDP. Perhaps a Firestick or Roku device to get YouTube.

Okay so this would be a multi device setup.

We can use RF to IP Gateways' for your 8 ATSC channels

Then an encoder for XX amount of HDMI inputs you need.

Those IP outputs from those devices would all go to one switch and from there you'd have all your multicast streams.

Which part numbers should I look at?

https://thorbroadcast.com/product/atsc-or-qam-to-ip-gateway-atsc-qam-iptv-broadcast-8230.html/70

H-8ATSC-IP

this is the gateway for RF to IP

https://thorbroadcast.com/product/1-4-hdmi-to-qam-modulators-and-iptv-streaming-encoders-8230.html/13

2 HDMI input encoder for HDMI to IP

Excellent thank you

Documents

h-16qam-ip-quick-configuration-guide.pdf

h-16qam-ip-rf-gateway.pdf

downloadh-16qam-ip-rf-gateway-user-manual.pdf

User's Manual is avalible only for logged users.

Availability:	In stock	Condition:	new
Shipping:	starting at $10	Warranty:	2Yrs
