Description Features Drawings Video Model Selection Specification Q&A Support

ISDB-T model description

4 Video Audio HDMI /YPbPr /CVBS inputs to - ISDB-T territorial 4CH RF output HDCP, Low Latency, up to 1080p, IPTV, ASI PN H-4ADHD-ISDBT-IP-LL

Description

4 HDMI & Component HD to COAX, HD 480i / 720p /1080i / 1080p Modulator and IPTV Encoder Streamer

Low Latency, HDCP Compliant HDMI, MPEG2 and H.264 Video Encoding, Dolby AC3 Audio Encoding

QAM, ATSC, DVB-T, ISDB-T Modulation

PN: H-4ADHD-QAM-IPLL

The H-4ADHD-XXX-IPLL modulator family from Thor broadcast is designed to handle even more applications than any other 4 channel chassis system that has come before. This HDMI to COAX Modulator has all the previous award winning features found in Thor Broadcast Modulators'; as well as, several new additional functions for added applications and flexibility. Our HDMI to COAX Converter provides 5 full RF carrier outputs for generating channels from content ingested through the ASI input. Encoding in either MPEG-2 or H.264 is provided for 4 crystal clear video streams up to 1080p60 each.

Bitrate is fully adjustable from 1.5 - 19 Mbps, and a variety of audio codecs are available. Standard audio encoding in MPEG-2 AAC and MPEG-4 AAC are provided; as well as, a licensed Dolby AC/3 audio codec. Audio sources can be selected from either embedded HDMI or Analog AV RCA ports. For Surround Sound, digital audio inputs can be set to "pass through" mode to preserve 5.1 and 7.1 audio that is encoded already in Dolby compatible format. Two mirrored ASI outputs are provided for broadcasters for added flexiblity in distributing the content generated by the 4 encoders.

This HDMI to COAX Splitter is an ideal solution for Professional Stadiums and Live Events. Used in more Collegiate stadiums for sports and distribution than any other model.

Programs input via ASI can also be multiplexed and remapped to the ASI output, adding yet another function to the unit as an ASI multiplexer. IPTV is not neglected in any way. All four encoded programs can be mapped to unique IP address outputs and ports in either UDP or RTP format. The IP output can be configured to strip null packets to reduce network bandwidth or preserve the constant bit rate (CBR) packet stuffing normally preferred by television systems. All four channels can be independently configured for either multicast or unicast outputs. Closed captioning is supported on a dedicated analog 608 CC port with RCA connector, an industry standard for line 21 captioning systems. Any 720 or 1080 line standard video signal in either HDMI or Component YPbPr format can be used for each of the four channels. This box also supports 480i for older TVs over RG6 RF coxial cables. Just like all other professional Thor modulator chassis, this system can be configured with firmware for either QAM, DVB-C, DVB-T, or ATSC channel format output.

Tags: 4 Channel HDMI Modulators Analog to IP Video Encoder ATSC Encoder Digital TV Modulator DVB-T Modulator HDMI over COAX HDMI over IP HDMI to ISDB-T QAM Modulator RF Modulator Video over Ethernet

Features

Broadcast over existing Coaxial Cabling to an unlimited number of Televisions with FULL HD
Perfect for Professional Stadiums and Arena's
#1 in Live Sports and Entertainment
Broadcast Live HDMI & YPbPr Video as Cable TV & IPTV Channels.
Licensed HDMI inputs - works with any source like DVD, Blu-Ray, or any STB
Convert HDMI & Component YPbPr HD Video to HDTV Channels
Any 1-4 HDMI & YPbPr Inputs up to 720p / 1080i / 1080p
Licensed HDMI inputs - works with any source like DVD, Blu-Ray, or any STB
4 HDMI Cables FREE
Support DD AC3 (2.0 / 5.1 / 7.1) passthrough (for HDMI interface only)
Support CC (Closed Caption) EIA608 (from CVBS input)
1-4 CATV RF Output up to 4 Adjacent channels
QAM-256/64, DVB-T & ATSC formats available
Fully IP Control and Network Management through browser
Front Panel LCD local control
IPTV Output Unicast or Multicast IGMP UDP, RTP / RTSP
ASI Output multiplexer with cherry picking
Low Latency available 300/500/800ms delay via different modes - IP will always be closer to 800ms due to the decoding (these values are end to end, not just the encoding speed)
Dolby AC3 or MPEG1/2 Audio Encoding
MPEG2 or MPEG4 H.264 Video Encoding
Firmware for ATSC, DVB-T, DVB-S2 Available
VCT (Virtual Channel Table) support for DVB-C and ATSC
LCN (Logical Channel Number) support

<br />

Drawings

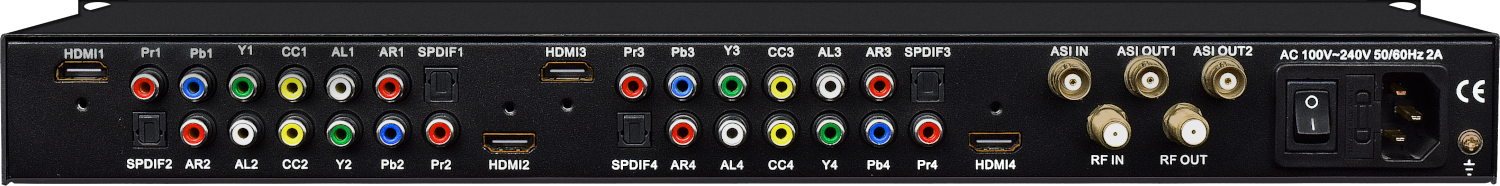

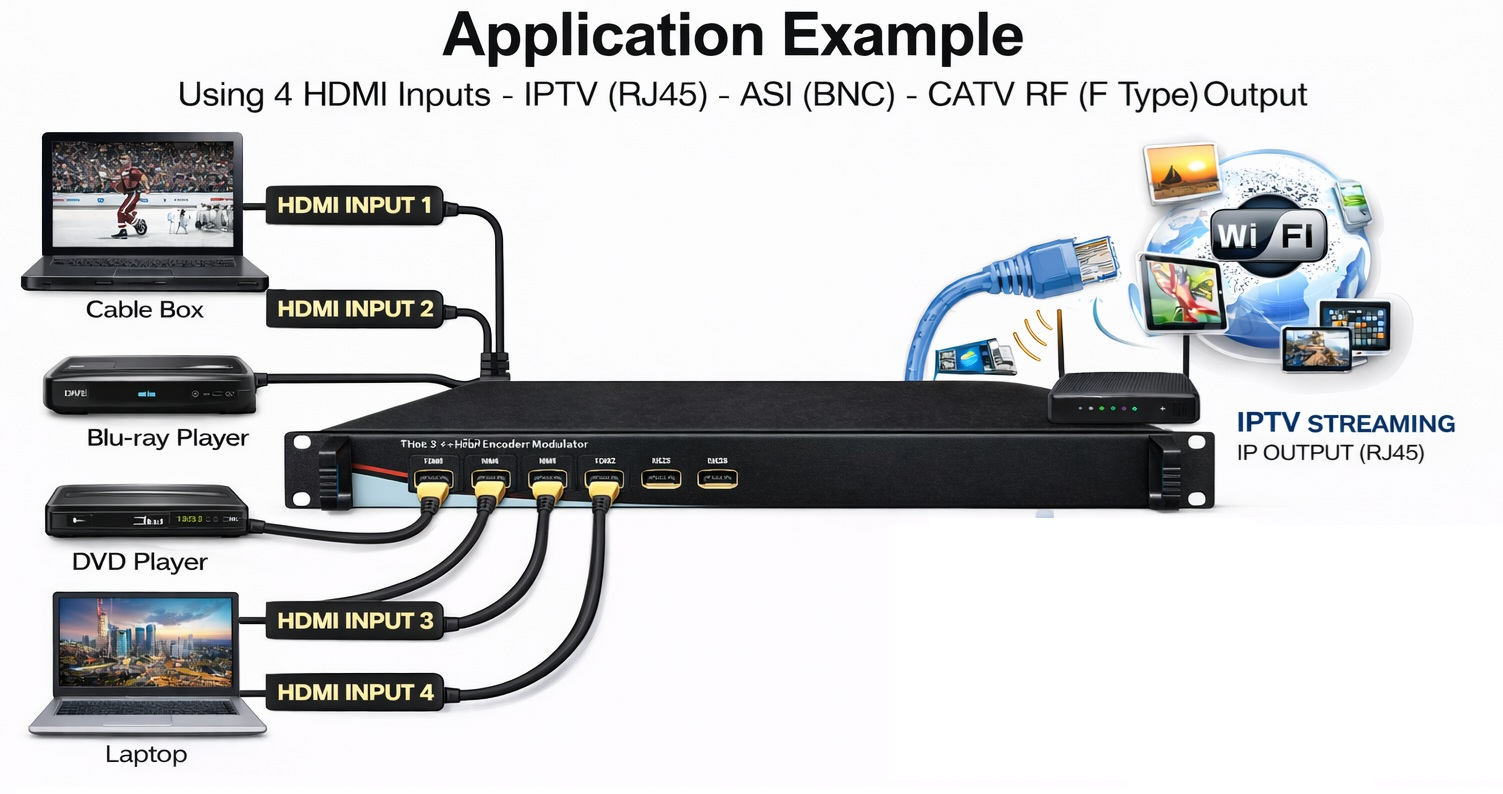

Application Examples

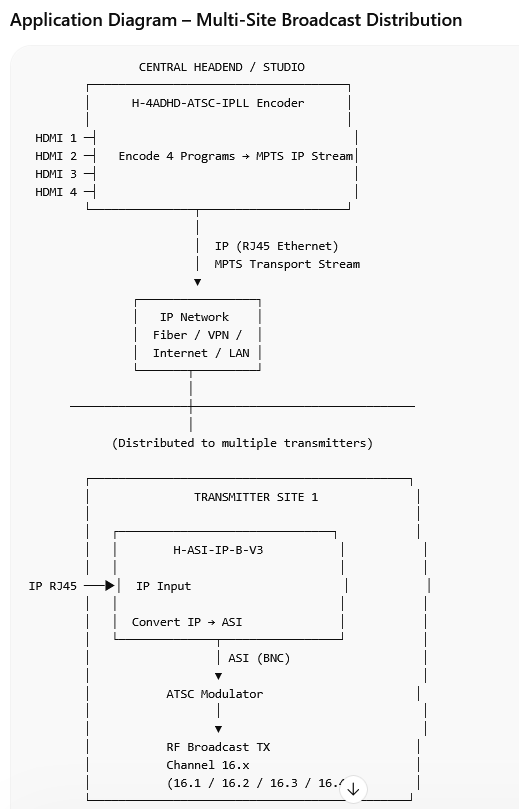

Hybrid RF CATV Electrical and Optical Distribution Application Drawing

Video

Thor Broadcast 4CH HDMI Encoder Modulator H-4ADHD

Create your own CATV Channel using an HDMI Encoder Modulator, Thor Broadcast headend quad channel encoder for adding your own TV channels to your RF Broadcast. Perfect for Hotels, Stadiums, Hospitals, Airports, Casinos, Universities, Government, Military. Out of the box and running in just a couple of minutes, send out RF and IPTV simultaneously through the same unit. IPTV available for multicast and unicast, accessible anywhere on your network. https://thorbroadcast.com/product/4-hdmi-component-hd-to-coax-and-iptv-hd-8230.html

Instant IPTV Streaming and CABLE TV distribution, the easiest way to stream 4 HDMI over IP and COAX

In this video, we are showing you a very popular Thor Broadcast IP encoder QAM /ATSC modulator that will output up to 4 RF and 4 IPTV streams simultaneously. This is an excellent product for a hybrid system to distribute RF locally and then send IPTV streams into a fiber backbone to distribute all over a campus, casino, restaurant, etc. Unit output 4 separate Streams as a unicast or multicast The H-4ADHD-QAM-IPLL has several inputs on it using HDMI sources; we're showing you on the Right TV the RF input, channels 2-5 of the modulated RF QAM channels we created using HDMI streaming sticks and a Blu Ray Player. On the left the TV has a Set Top Box for IPTV channels which are then converted to HDMI which is input into the TV. Using the remote from the STB we can scroll through the channels the same as the right tv with almost no delay between the two. Excellent for live events like sports, theatre, and concerts, these units make it easy to set up via the GUI, and can help launch a headend in no time using RF, IP, or both. There is also HD/SD 32G SDI model available equipped with up to 12SDI inputs - IP and RF output, H-4SDI-QAM-IPLL You can use those units as streaming encoders to services like youtube or Facebook, or other streaming services. Link to the unit : 4 Channel HDMI to IP streaming and QAM https://thorbroadcast.com/product/4-hdmi-component-hd-to-coax-and-iptv-hd-8230.html/21 4 Channel SDI to IP streaming and QAM https://thorbroadcast.com/product/1-4-sdi-to-qam-modulators-and-iptv-streaming-encoders.html/0 This is a link to IPTV Set-Top Box: Multicast TS streams Input, HDMI and AV Video Output to the TV, STB has its own remote control, you can upload your own multicast channel lineup https://thorbroadcast.com/product/compact-ip-decoder-set-top-box.html

Quick configuration Guide for H-4ADHD-QAM-IPLL

4 HDMI & Component HD to COAX and IPTV HD 480i/720p/1080i/1080p CC Modulator. The H-4ADHD-XXX-IPLL modulator family from Thor Broadcast is designed to handle even more applications than any other 4-channel chassis system that has come before. This HDMI to COAX Modulator has all the previous award-winning features found in Thor Broadcast Modulators'; as well as, several new additional functions for added applications and flexibility. Our HDMI to COAX Converter provides 5 full RF carrier outputs for generating channels from content ingested through the ASI input. Encoding in either MPEG-2 or H.264 is provided for 4 crystal clear video streams up to 1080p60 each.

Model Selection

Additional Model Selection:	We can program our modulators to any available RF modulation format: QAM DVB-C, ATSC, DVB-T, ISDB-T Changes in format do not affect IPTV or ASI Output
H-4ADHD-QAM-IP-LL	QAM "Cable" DVB-C RF output
H-4ADHD-ATSC-IP-LL	ATSC " Off Air " RF output
H-4ADHD-DVBT-IP-LL	DVB-T RF output
H-4ADHD-ISDBT-IP-LL	ISDB-T RF output

Specification

*All Specifications Subject to Change Without Notice
Input	4 HDMI & 4 YPbPr up to 1080P60 , 4 CVBS up to 480I
Supported Resolutions	1280x720P 60 / 59.94 / 50 Hz 1920x1080I 60 / 59.94 / 50 Hz 1920x1080P 60 / 59.94 / 50 Hz CVBS Input Supports 480I only
Video Codecs	MPEG-2 HD : 1.5-19.5 Mbps H.264 HD : 0.8-19.5 Mbps
Audio Codecs	MPEG-1 Layer II Encoding MPEG-2 AAC Encoding MPEG-4 AAC Encoding AC3 Dolby Encoding also: Support DD AC3 (2.0/5.1/7.1) passthrough for HDMI interface only
Audio Sample Rate	48 kHz
Audio Bit Rates	64 kbps, 96 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps
Modulation Standard	QAM - J.83A, J.83B, J.83C. Firmware for ATSC or DVB-T ISDBT available
RF Frequency Range	30-960 MHz 1 KHz Step
RF Power Level	5 - 35 dBmV Adjustable
DVB-ASI Output	BNC Connector: 1-60 Mbps MUXED MPTS
DVB-ASI Input	BNC Connector: 1-120 Mbps Programs Selected by PID Programs Muxed to all Outputs
IPTV Output	MPEG-TS MPTS over UDP, RTP/RTSP Unicas, and Multicast Supported 4 separate SPTS's 1 Muxed MPTS
Cables Included Closed Captioning	1 to 4 HDMI Cables & Power Cord CC 608 via Analog Input
Power Input	100-240 VAC Auto Switching ~ 20 W
Dimensions	19x17x3 19"Rack mountable 1U high
Weight	9 Pounds
Operating Temperature	32-110 F

Question and Answers

Question:
We were reanalyzing our current installation. We currently have an analog modulation while the options proposed are digital. We are planning to change from analog to digital but we need to make sure all needed equipment for the migration will be available. We have to distribute the signal in two separate building and we wanted to use the existing cabling if possible. The second building is receiving the signal by an RG 11 cable and we have 1 Signal Amplifier is installed in each building see the attached file for more details. We have the following Question? Can the signal from that modulator H-4ADHD-QAM-IPLL work with the attached line amplifier? If no How can we send the signal to an extension building located at 200m from the main modulator? Thank you for providing us clear explanation that will lead us to fine decision!

Answer:
We are happy to hear that your project is moving forward, Using our HD HDMI modulator your video clarity will increase tremendously compared to the current analog modulated video. The Digital QAM is also an analog modulated signal, it just carries digital information, so you treat it the same way as the analog NTSC/PAL modulated RF. All of your infrastructures stays the same. You can even have both Analog and Digital on the same coax, we can generate any different frequency then you currently using for your analog and using simple 2x1 combiner you can have both at the same time. It will work fine over your 200m coax cable. If needed for the additional extension we have fiber optic RF to Fiber / Fiber to coax extender https://thorbroadcast.com/product/thor-optical-mini-catv-rf-transmitter-45-1000mhz.html

Question:
What is CC input means?

Answer:
CC input means Closed captioning, the unit reads CC from Line 21 from CVBS baseband video input and encodes it into the stream. So for example, if you have DVD player with the HDMI and CVBS baseband video output, you can connect it to our unit bot of them and modulator will encode HD video from HDMI source and closed captioning form CVBS, the reason behind it is that HDMI doesn't carry CC as a separate signal data stream It is not necessary to use it is just an additional function, because of some costumes requires for the TV's where need to be muted.

Question:
One requirement of the system is to have minimum latency on the channels as these are used interactively on pan-tilt-zoom (PTZ) cameras, control of the DVRs and control of the satellite receiver channels. A long latency will cause the operator to "overshoot" the point they want when controlling the PTZ and similar problems with the entertainment DVRs and satellite receivers. We totally recognize there will be more delay with the digital system over the analog one but need to minimize the latency as much as possible. Iset Mode 1 but have been playing with the manual setting and hopefully found a setting that is acceptable. The manual is not too descriptive (page 34 of the PDF file) of the DTS Delay values and GOP values in the modes and normal. So I am not guessing on the values and have a starting point, if you could fill in the below table ASAP it would help in my installation this weekend, Thor Broadcast H-4ADHD ATSC Encoding Delay Settings Input Resolution Encoding Type Low Delay Mode DTS Delay Setting GOP Bframe Setting GOP P frame Setting Average Delay (ms) HDMI 1080i MPEG-2 Mode 1, HDMI 1080i MPEG-2 Mode 2, HDMI 1080i MPEG-2 Normal, HDMI 1080i H.264 Mode 1, HDMI 1080i H.264 Mode 2, HDMI 1080i H.264 Normal ,

Answer:
I suggest setting mode2 @ 1080i to test. This is a better-balanced configuration. The main parameter affect encoding delay is the DTS setting. The minimum DTS value is 50, it could be set lower but it requires higher STB/TV decoding capacity. In mode2, the DTS value is about 150. Other parameters like GOP, B frames have an insignificant effect on the delay

Question:
We are in the process of migrating from analog RF cable tv to digital solution. The system is used for monitoring conductor etc, and the latency is a big issue. We are currently modulating 12 channels to ca 350 screens in wardrobes etc and the system is also used for the stage because the analog coax solution is close to zero latency. That is also the reason why it has been kept alive for so long. However, it’s not easy to find TVs with no/low latency anymore – even for analog RF. We are looking at SDI/SVSI/SDVoE for the stage area, but we won't look at DVB-C/T for the wardrobes where the latency is a little less critical. I see on your website that your modulators have a low latency option with 70 – 110ms and that is probably low enough for the wardrobes. Your modulators are only specified with DVB-T – will that work on physical coax? If not; do you have a DVB-C option/version?

Answer:
All units you see on our website are available in all RF modulation standards; some units like the Thunder-4 and the Hybrid-8 have all standards built-in, so it's just a setting in the GUI, you can switch to DVB-C or DVB-T in just a few clicks. https://thorbroadcast.com/product/8-channel-hdmi-and-sdi-clear-catv-rf-modulator-qam-8230.html https://thorbroadcast.com/product/1-4-8-hdmi-digital-rf-encoder-modulator-full-hd-up-8230.html/238 Other units like the 4ADHD need to be ordered with specific modulation standard, they must be loaded with firmware to ensure proper standards are operational. Please let me know which model you were interested in and I will let you know if that model has expandable options or needs to be set up in advance with the proper firmware.

Question:
I guess the H-4ADHD-QAM-IP-LL (low latency?) would be the best choice for us then - giving us flexibility in the transition period. How many can be daisy-chained? And do you have units for analog RF? Or should we insert the H-4ADHD-QAM-IP-LL after the old analog system? Also; we have a text system for translation in all the seats in the venue and this system has a mirrored output on normal HDMI - can this be converted to Closed Caption? Alternatively, I will ask the vendor Marconi if the RS233 feed can be converted to the CC standard...

Answer:
You can daisy chain as many units as you like, each unit would generate different channels, for example the first would generate ch 2,3,4,5 the second 6,7,8,9, We have 135 channels available, so in theory, we can combine 33 modulators, modulating on the different frequencies ( different channels). QAM channels are actually very similar to analog channels, they also occupy 6mhz band, so you can just replace analog or combine them together, so on the same coax you can have analog and digital modulating channels, when there are modulated on different frequencies, the frequencies for digital QAM and analog NTSC /PAL are the same Those ADHD models will output CC as well, it needs to be input via baseband video in the back of the unit alongside the HDMI input; the unit will encode the CC information onto the HDMI video and will output it on the RF channel. The CC inputs read recognize and read the Closed Captioning Line 21, so it would need to be provided in this format into the unit, and encode it as a CC608. this way the CC can be turned on /off on the TV level. You could also inject ( glue) the CC into actual video than it will be encoded the same time as a Video, but then it will be permanently displayed on Tv's all the time. In other words our unit needs to receive CC in form of the analog CVBS Video Line 21 in order to be encoded to CC 608

Question:
We have a couple of your HDMI HD QAM boxes that are loaded dual HDMI and dual SDI. we have used them in the United States for many years but last year I took them to China and couldn't get them to work with their TV's. This year our show is in Stockholm Sweden and I thought I would reach out to see if there is compatibility or if I would need different boxes. The download of the manual isn't working FYI. I get pages with squares on it. The in-house guy at the venue says "We use 8MHz channel bandwidth, modulation 256QAM max. 40Mbit/sec. /8MHz." What I can't tell is if the boxes I have to do that exactly. any help would be great. thank you

Answer:
So essentially they have different standards than us. In America we use QAM 256 Annex B; in Europe, they use QAM 256 Annex A; In China, they use an RF standard called DTMB; other parts of the world use DVB-T or ISDB-T; So Television sets have built-in Tuners that can see the RF standard that is generally used in that country; so you can't just take a modulator from one country that uses a different standard and expect it to work. In the states we commonly use QAM and ATSC for over the air; both of which are 6Mhz bandwidth; DVBT I know is 8Mhz step; so again they are not interchangeable. We have 8ch HDMI SDI Digital modulator with all world RF modulation standards, this is the link to H-HYBRYD-RF-8 https://thorbroadcast.com/product/8-channel-hdmi-and-sdi-clear-catv-rf-modulator-qam-8230.html

Question:
I have 2 types of TVs(LG's and Samsung) that I am trying to feed 1080P60 over QAM. However, when selecting H264 setting under the Input Video Format I found that Samsung TV's do not see the video signal from our encoder when H264 is selected. I am struggling to find a setting that works with both TV's. Do you have preset information for each brand of TV's capabilities? Also under the Auto-Config button, there is a list of video resolutions that can be chosen from but there is not 1080P resolution that can be chosen. Will this be available in a future update?

Answer:
Every TV manufacturer has different settings and options. We suggest being consistent when purchasing televisions. We use MPEG2 in America as our primary encoding protocol, so the vast majority of TV's will only be able to see MPEG2; there are a few brands that do have H264 available, however that is very, very rare. So if you are using this type of encoder in an office, or bar, chances are that you will have to use MPEG2 and NOT H264, because all tv's can see MPEG2. I suggest you use that protocol or purchase tv's that can see H264. Most of our Modulators, including H-4ADHD-QAM-IPLL, can encoder video as MPEG2 and H.264, please log in to the unit, in Input in encoding section, please select MPEG2

Question:

I intend to use this modulator for MDU Video insertion purposes.Will your this modulator work with the Comcast Set To Box, QAM channel 134 and display channel 1851,1852,1853,1854,1855,1855,1856,1857,18581859, 1860 or 1901. How to set it up. Can I MUX ( multiplex) 4 of those videos on the single RF frequency Channel carrier and have them as a sub-channels

Answer:

Our 4 ch H-4ADHD-QAM-IPLL worked on the Comcast system as an inserted channel.
We have simple GUI instructions on how to set it up, we can percent it everything before the shipping, so it would be just plugged and play.
We have also other similar modulators for 1,2,8 and 12channels.
We have great flexible products and technical support
Please check those units for your reference
2 HDMI Modulator
https://thorbroadcast.com/product/2-hdmi-ypbpr-hd-digital-tv-modulator-qam-atsc-dvb-t-8230.html
8 HDMI/SDI modulator
https://thorbroadcast.com/product/8-channel-hdmi-and-sdi-clear-catv-rf-modulator-qam-8230.html
12 HDMI modulator
https://thorbroadcast.com/product/catv-rf-modulator-hdmi-multiplexer.html/37

Question:

I'm working on improving my bases TV system. I'd like to be able to take a few laptops and display some PowerPoint slides. I'm looking at the H-4HDMI-QAM IPLL but don't know which one to go with. The ATSC, or QAM, or DVBt version. Can someone help me choose the correct one? We use a lot of the Blonder Tongue AMCM-860D's for our other channels. We are located within Phoenix, AZ.

- It comes up as cable.

Answer:

That is an excellent choice, and for the RF output option you'd most likely go with QAM.

DVBT is a foreign standard, since you mention you're in AZ, that won't work for you.

ATSC is standard 8VSB Off Air Antenna; so modulators can be used in this standard if you have an antenna RF infrastructure and then would like to add some custom cable channels of your own. So QAM is your bet; my assumption is that is what your Blonder Tongue units are. Oddly enough I researched that model and it is actually NTSC; which is the old analog variety of RF. So I'm not sure if you can purchase those in QAM or ATSC or they are only NTSC. The easy answer to find out is if you go to a TV on premise and do a channel scan to find channels on the coax plugged in the back, do you do Cable Scan or Off air Scan?

- Okay so then they are QAM units. So the H-4ADHD-QAM-IPLL is the unit you'd want to select.

Question:

We are looking to upgrade our current Radiant Communication MDU Encoder QRF-5000-1-m. We would like to upgrade to have an HDMI input instead of composite. WE use this over Comcast cable to our community. I would to see if you have an upgrade available for us to work with our service

Answer:

Yes, we have the perfect solution HD Video insertion solution for the Cable TV MDU application

Our encoders have various inputs needed to channel insertion.

Please let me know if your service requires Comcast cable STB's or they are using CLEAR QAM ( the coax cable is connected directly to the TV)

H-1HDMI-QAM-IPLL - 1ch HDMI Encoder - IP/ASI + RF QAM output - price

https://thorbroadcast.com/product/1-4-hdmi-to-qam-modulators-and-iptv-streaming-encoders-8230.html/12

H-2HDMI-QAM-IPLL - 2ch HDMI Encoder - IP/ASI + RF QAM output

https://thorbroadcast.com/product/1-4-hdmi-to-qam-modulators-and-iptv-streaming-encoders-8230.html/13

4 channel :

H-4ADHD-QAM-IPLL - 4ch HDMI Encoder - IP/ASI + RF output

Please let me know if you have any questions, or you can give me a call at 800-521-8467 Ext 2

Question:

How you can use IP TV UDP output from the H-4ADHD-QAM-IPLL CATV RF modulator / IP encoder?

Answer:

An IP TV UDP output from an IP encoder can be used in several ways. Some common examples include:

Distributing the IP TV signal over a local area network (LAN) to multiple devices or TVs that are connected to the network.
Streaming the IP TV signal over the internet to remote devices or TVs using a streaming service such as YouTube or Twitch.
Connecting the IP TV signal to a digital signage system to display the content on multiple screens or TVs in a commercial or public setting.
Transmitting the IP TV signal over the air using a digital TV antenna to reach TVs in a specific geographic area.

Overall, the specific use for the IP TV UDP output from an IP encoder will depend on the user's specific needs and requirements.

Question:

I am not sufficiently versed in IPTV so would appreciate your recommendation.

At a new facility we'll feed out local live production along with incoming signals from 12-14 other tracks. The origin of the latter is Dish Network receivers with HDMI out. Of course, we can convert our HD SDI output to HDMI.

The live local needs to be the lowest possible latency, for obvious reasons. It's less important that the income tracks be low latency because there's no live action to compare to.

Do you have a product that will accommodate both? or do I need a separate encoder for the live?

If we get into this, I'll need to please ask you to educate me on multicast!

Many thanks for your advice and great products!

Answer:

Please review the following options:

1) H-4ADHD-QAM-IPLL: 4-channel HDMI QAM modulator/IP Encoder with QAM
latency around 300ms and IP latency of approximately 800ms.

2) H-4SDI-QAM-IPLL: 4-channel SDI QAM modulator/IP Encoder with QAM
latency around 300ms and IP latency of approximately 800ms.

https://thorbroadcast.com/product/1-4-sdi-to-qam-modulators-and-iptv-streaming-encoders.html/0

3) If latency is not a concern, I suggest the H-THUNDER-8, an
8-channel QAM modulator with latency of about 500ms.

https://thorbroadcast.com/product/1-4-or-8-hdmi-digital-rf-encoder-modulator-8230.html/239

4) Here is the link for the 16 or 24-channel IP encoder with a latency of 800ms.
https://thorbroadcast.com/product/4-8-16-24-hdmi-iptv-streaming-8230.html/215
https://thorbroadcast.com/product/4-8-16-24-hdmi-iptv-streaming-8230.html/216

this is link to our IPTV STB's
https://thorbroadcast.com/product/compact-ip-decoder-set-top-box.html

Question:

I am reaching out about your 4 HDMI to ATSC modulators and IPTV streaming encoder. I see it has RF in. I was reaching out to make sure that if there was an antenna that went into that "RF in" that it could be distributed through the IPTV system? And if so, would it take one of the 4 channels that the HDMI ports are using? Thank you for the assistance!

And then would it be possible to have the rf gateway and iptv encoder go to the same ethernet switch to go out together on the same output? So both inputs go into one switch, and then one singular output?

Answer:

es, that model has an RF input and an RF output.

To your point it sounds like you'd want to combine the 4 HDMI inputs from various HDMI sources and add them to the existing channels from an Antenna.

You can input the RF from the Antenna into the RF input on the Modulator. You can also use an External 2x1 Comiber, it's the same thing essentially.

However you have to make sure the channels you assign the 4 HDMI inputs are not overlapping channels from the Antenna.

In order to properly assimilate the 2 RF streams together, they must be on vacant frequencies. Putting those HDMI sources on existing channels will not work.

The easiest way to do that is with an RF scanner, or just check online in your city which frequencies are vacant.

As for inputting RF antenna and expecting the model to output the antenna channels in IP is something it will not do. The only IPTV stream outputs would be from the 4 HDMI sources you are feeding the system.

So if you feed it 4 BluRay Players, then you can have 4 RTP/UDP/RTSP streams in multicast or unicast.

If you are looking to convert RF channels from an Antenna and converting them to IP channels or streams, then we have a different product for that called a Gateway.

https://thorbroadcast.com/product/16-rf-tuners-to-iptv-1.html/116

This is our most dense RF Gateway, which can take up to 16 ATSC frequencies, Major and Minor channels, and convert them to IP streams.

We also have this available in an 8 RF channel input model.

Yes, you can connect both the Gateway and the Encoder to the switch; it needs to be a smart switch with the IGMP protocol enabled.

The IGMP works in a way that it keeps the streams in the switch's memory and passes the individual streams to the specific port where the stream was requested by any IP receiver or decoder.

This is more detailed explanation how the IGMP works:

IGMP (Internet Group Management Protocol) is a communication protocol used to manage the membership of Internet Protocol (IP) multicast groups. IGMP is used by IP hosts and adjacent multicast routers to establish multicast group memberships. It plays a crucial role in enabling efficient network resource usage, especially for services like multicast video streaming. Here’s a simplified explanation of how IGMP works with multicast video streams and how it helps preserve bandwidth while allowing video access to anyone on the LAN network:

Multicast Video Streaming

Multicast Streaming: Unlike unicast streaming, where a separate copy of the video stream is sent to each requester, multicast streaming sends only one copy of the video stream to the network, regardless of the number of requesters. This method significantly reduces bandwidth usage.
Group Membership: Devices that wish to receive a specific multicast video stream will join a multicast group. The multicast group has a specific IP address that represents all devices interested in receiving the video stream associated with that group.

How IGMP Works

Joining a Group: When a device on the LAN wants to start receiving a multicast stream, it sends an IGMP message indicating its desire to join a specific multicast group.
Multicast Router: The local router receives the IGMP join request. The router then knows that it should forward traffic for that multicast group to the network segment where the request originated.
Leaving a Group: If the device no longer wishes to receive the multicast stream, it sends an IGMP leave message. If there are no more interested receivers on the LAN, the router stops forwarding the multicast stream to that network segment.
Periodic Queries: Multicast routers periodically send IGMP queries to discover if there are still devices interested in the multicast group. If no devices respond with a desire to remain in the group, the router assumes there are no interested receivers and stops forwarding the stream to that segment.

Preserving Bandwidth

IGMP efficiently manages network resources by ensuring that multicast traffic is only sent to network segments with interested receivers. This way, the bandwidth is not wasted on sending video streams to parts of the network where no device is interested in them.

Access by Anyone on the LAN

Open Access: Any device on the LAN can join a multicast group to start receiving the associated video stream, making multicast video streams accessible to anyone on the network who wishes to receive them.
Dynamic Membership: Devices can join or leave a multicast group at any time, allowing for flexible and dynamic access to video streams based on interest.

In summary, IGMP facilitates efficient distribution of multicast video streams by managing group memberships, preserving bandwidth by directing streams only to interested receivers, and enabling open access to video content for any device on the LAN network that chooses to join a specific multicast group.

Question:

Do you have digital modulator that can accommodate 4 HDMI input and 1 RF output. I need the 4 sources to be modulated and output on one UHF frequency.Can the 4 channels output adequately at 720? The customer is looking to use ATSC

Answer:

Yes we do have a 4 Channel modulator that can do that.

Just keep in mind you will be limited by the bandwidth on the RF channel with 4 programs on it.

Model # H-4ADHD can be ordered in ATSC or QAM

On QAM 256 you have 38mbps of data available. You can still be in 1080 @ 9.5mbps of data rate on each HDMI input and the quality is still excellent.

It's much more difficult on ATSC which only has about 19Mbps, so each input would be under 4.5mbps.

An ATSC (8VSB) channel can only contain a 19.2Mbps bandwidth. With four programs on one channel, we would need to encode each at about 4.5Mbps. Due to US standards, we are forced to encode in the MPEG2 standard and the 4.5Mbps is a bit low for HD 720p.

If that is acceptable for your customer, we can definitely do it using this device. In some cases, customers encode static video like newscasts at 3Mbps to create more room to allocate 7Mbps for sports channels with a lot of movement. Yould can put 2 programs on 2 different RF channels as well.

So you can have channels 8.1 and 8.4, and then 9.2 and 9.5. This would be the best option for ATSC.

Question:

I am looking to take about 50 channels from a fiber IPTV system that will be MPEG4 streams and convert those into 50 channels of RF QAM to feed to standard TVs in the campground and infield buildings Daytona International Speedway. I am currently using the H-IPRF-QAM-32CH to take 8 IPTV channels and put them into the RF QAM in a frequency range that is notched out for us. I believe that in the near future I will need to create the entire QAM myself as Spectrum is moving to Fiber and feeds from a managed switch (IPTV). The only issue that I have with the H-IPRF-QAM-32CH is that I need to transcode 4 of the feeds that we insert from MPEG4 to MPEG2. The H-IPRF-QAM-32CH will not accept the MPEG4 feeds natively as far as I can see. This would also mean it will not work with what Spectrum is setting up. It seems that the H-HERMES-64 would do what I need done if I am not mistaken? You did state that there is another product being developed. Would that match the specs I have given? Let me know if you have any other questions. I have a meeting with Spectrum in a few weeks, so I am trying to make sure I have put a plan together to keep my system running.

Answer:

ust to clarify, the H-IPRF-QAM-32CH will accept the H.264 stream and pass it to the RF QAM. However, most TVs will not support this because MPEG4 (H.264) is not a US CATV RF standard; most TVs require MPEG2.

If you need to transcode just 4 streams, the easiest way would be to decode those streams to HDMI format and use a 4-channel modulator. You can decode IP using the H-STB-IP, and for the 4-channel modulator, you can use the H-THUNDER-4.

H-STB-IP

https://thorbroadcast.com/product/compact-ip-decoder-set-top-box.html

H-THUNDER-4

https://thorbroadcast.com/product/hdmi-modulator-qam-rf-coax-output-full-hd-8230.html/238

Documents

User manual

atsc-off-air-us-television-channels-center-frequency-mhz-chart.pdf

catv-qam-channel-center-frequency.pdf

thor-broadcast-thor-fiber-short-form-catalog-2018.pdf

encoder-modulator-iptv-setup.pdf

nms-ip-connection-instructions.pdf

h-4adhd-qam-ipll-4-channel-4-hdmi-component-composite-video-ip-encoder-8230

encoder-modulator-vct-virtual-channel-setup-2.pdf

quick-installation-and-configuration-guide-h-4hdmi-qam-ipll-and-h-4adhd-atsc-ipll-2023-1.pdf

quick-configuration-guide-h-4adhd-2023.pdf

H-4ADHD-QAM-IPLL - QUICK SETUP

HDMI RF Modulator Chassis System 1-12 Units

The Thor Compact RF-PETIT Digital Modulator is already designed to be sleek and easily installed anywhere. To make life easier, Thor Broadcast also has a compatible rackmount kit that can be installed in a 19" 1RU rack for simplicity. This rack system provides the horizontal racks that can quickly mounted to any 1RU rack; the multi-unit sets already come with the rack mount hardware so you can attached the rack ears to the Petit's and then fasten to the horizontal bars in the Rack. Easy to deploy and simple to setup, holes are pre-drilled in the units so you can get your units up and installed efficiently. This quick and easy installation process allows you to vertically mount up to 12 HDMI-RF-PETIT units in a rack with easy access to the inputs and outputs of the device.

2 HDMI + 2 HD/SD SDI to RF Coax Modulators and IPTV Streaming Encoders 1080p/60

Convert 2X HDMI, 2X HD/SD/3G SDI with closed captioning to RF COAX or IP It generates 4 HDTV QAM Cable TV/ ATSC or DVB-T Channels. Supports MPEG2 /H.264 closed captions, Dolby AC/3 and comes equipped with ASI & IPTV UDP,RTP,RTSP Output. Create your own channels and watch any HD content on any TV, HD 720p/1080i/1080p

Thor Broadcast Sales

Customer Service/ Support

CATV Modulators:
DVB Encoders:
Decoders (IRD's & STB's):
Satellite Modulators:
- DVB-S/S2 Satellite Modulators
Fiber Optic Transport:
HD 4K Cameras, SDI - HDMI - IP Streaming - PTZ - Broadcast and Security:
- PTZ Streaming Cameras Broadcast cameras with SDI ,HDMI CVBS USB
Wireless HD SD Video Data Transport:
- Wireless HD SD Video Data Equipment
- Video Audio Extenders Over Ethernet LAN IP Network
DIscounted Inventory:
SDI Monitors:
- SDI & HDMI Monitors
Warehouse:
